1000W High Vibration Power Submersible Ultrasonic Transducer Box For Ultrasonic Cleaner Engagement Ring
1-9 Set
$880.00
≥ 10 Set
$580.00
- Item No.20201116d75bbMOQ1 Set
Choice
Quantity:
If you have your own design, please contact us, there will have a professional customer service to communicate with you.
Don't have your files right now?No worries, Check out our art tips for more information.
If over 500pcs, mass production will start until pre-production sample has been approved.
Est. 7 days production
1000W High Vibration Power Submersible Ultrasonic Transducer Box For Ultrasonic Cleaner Engagement Ring

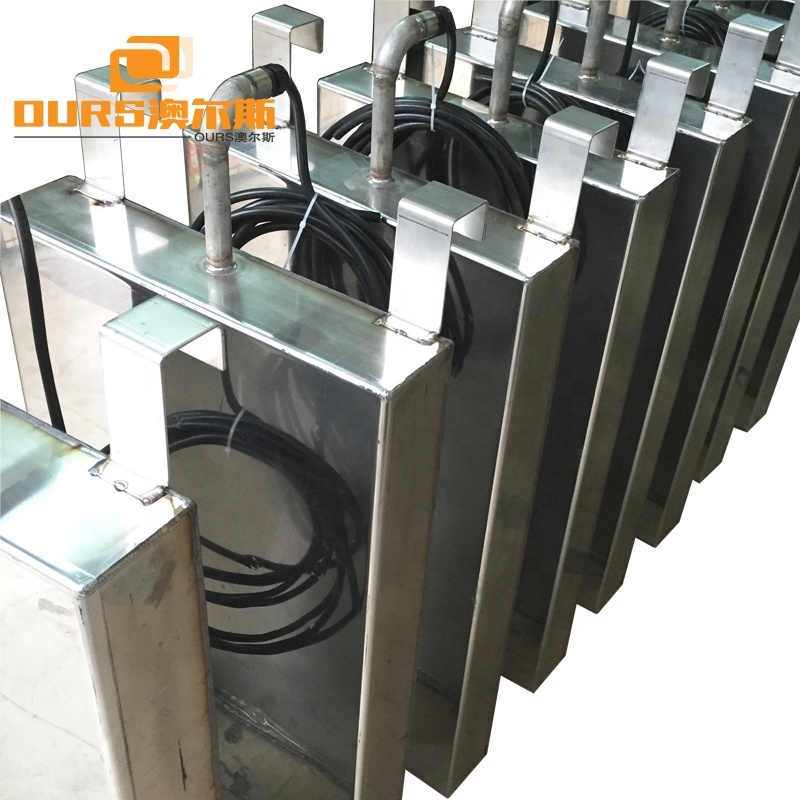

Ultrasonic Immersible Transducer Pack also called the inputting type ultrasonic vibration plates, this product is suitable for cleaning electroplating parts before cleaning, horologe parts, hardware machinery parts, polyester filtering cores, semiconductor wafer, tools, lens, frames, jewellery, glass, utensils and other industries, wide application.
Type Description
A.Mounting to tank wall with threaded duct nipple and fastening bracket. Cable through the tank wall.
B.Mounting to tank wall with threaded duct nipple and fixing nipple. Cable through the tank wall.
C.Mounting to tank wall with hanging hooks. Rigid stainless steel tube for cable over the tank top.
D.Mounting to tank wall with hanging hooks. Flexible metal armoured 1 m hose for cable over the tank top.
E.Mounting to tank bottom. Rigid stainless steel tube for cable through the tank wall.
F.Mounting to tank bottom. Rigid stainless steel tube for cable over the tank top.
G.Mounting to tank bottom. Flexible metal armoured 0,5 m hose for cable through the tank wall.
H. Mounting to tank bottom. Flexible metal armoured 1,5 m hose for cable over the tank top.
X.Non-standard mounting
1000W High Vibration Power Submersible Ultrasonic Transducer Box For Ultrasonic Cleaner Engagement Ring
Type | Diamention(mm) | Frequency (Khz) | Power(W) | Ultrasonic Transducer |
ARS-ZBH300W | 300*190*100 | 25,28,33,40,80,130 | 300 | 6 |
ARS-ZBH600W | 360*275*100 | 25,28,33,40,80,130 | 600 | 12 |
ARS-ZBH1000W | 450*350*100 | 25,28,33,40,80,130 | 1000 | 20 |
ARS-ZBH1200W | 470*380*100 | 25,28,33,40,80,130 | 1200 | 24 |
ARS-ZBH1500W | 520*450*100 | 25,28,33,40,80,130 | 1500 | 30 |
ARS-ZBH1800W | 560*450*100 | 25,28,33,40,80,130 | 1800 | 36 |
ARS-ZBH2000W | 650*450*100 | 25,28,33,40,80,130 | 2000 | 40 |
ARS-ZBH2400W | 740*520*100 | 25,28,33,40,80,130 | 2400 | 48 |
ARS-ZBH3000W | 820*540*100 | 25,28,33,40,80,130 | 3000 | 60 |
ARS-ZBH5000W | 1200*590*100 | 25,28,33,40,80,130 | 5000 | 100 |
Above are single frequency ultrasonic immersible transducer pack OEM Ultrasonic Immersible Transducer Pack(Size, Frequency,Power) | ||||
