1000W Immersible Ultrasonic Transducers For Cleaning Tank 17KHz-200KHz Stainless Steel 316L Immersible Ultrasonic Transducer

02Specification

Ultrasonic Immersible Transducer Pack also called the inputting type ultrasonic vibration plates, this product is suitable for cleaning electroplating parts before cleaning, horologe parts, hardware machinery parts, polyester filtering cores, semiconductor wafer, tools, lens, frames, jewellery, glass, utensils and other industries, wide application.
immersible ultrasonic transducers This series of products  is suitable to cleaning work pieces of various industries;such as plating components cleaning before plating,electronic,hardware machinery parts,clock and watch parts,semiconductor sillcon chips,glass vessels,bijouterie,spectacle frame, etc.
Type Description
A
 Mounting to tank wall with threaded duct nipple and fastening bracket. Cable through the tank wall.
B
 Mounting to tank wall with threaded duct nipple and fixing nipple. Cable through the tank wall.
C
 Mounting to tank wall with hanging hooks. Rigid stainless steel tube for cable over the tank top.
D
 Mounting to tank wall with hanging hooks. Flexible metal armoured 1 m hose for cable over the tank top.
E
 Mounting to tank bottom. Rigid stainless steel tube for cable through the tank wall.
F
 Mounting to tank bottom. Rigid stainless steel tube for cable over the tank top.
G
 Mounting to tank bottom. Flexible metal armoured 0,5 m hose for cable through the tank wall.
H
 Mounting to tank bottom. Flexible metal armoured 1,5 m hose for cable over the tank top.
X
 Non-standard mounting

1000W Immersible Ultrasonic Transducers For Cleaning Tank 17KHz-200KHz Stainless Steel 316L Immersible Ultrasonic Transducer in detail:

Model

Diamention(mm)

Frequency (Khz)

Power(W)

Ultrasonic Transducer

ARS-ZBH300W

300*190*100

25,28,33,40,80,130

300

6

ARS-ZBH600W

360*275*100

25,28,33,40,80,130

600

12

ARS-ZBH1000W

450*350*100

25,28,33,40,80,130

1000

20

ARS-ZBH1200W

470*380*100

25,28,33,40,80,130

1200

24

ARS-ZBH1500W

520*450*100

25,28,33,40,80,130

1500

30

ARS-ZBH1800W

560*450*100

25,28,33,40,80,130

1800

36

ARS-ZBH2000W

650*450*100

25,28,33,40,80,130

2000

40

ARS-ZBH2400W

740*520*100

25,28,33,40,80,130

2400

48

ARS-ZBH3000W

820*540*100

25,28,33,40,80,130

3000

60

ARS-ZBH5000W

1200*590*100

25,28,33,40,80,130

5000

100

Above are single frequency ultrasonic immersible transducer pack OEM Ultrasonic Immersible Transducer Pack(Size, Frequency,Power)

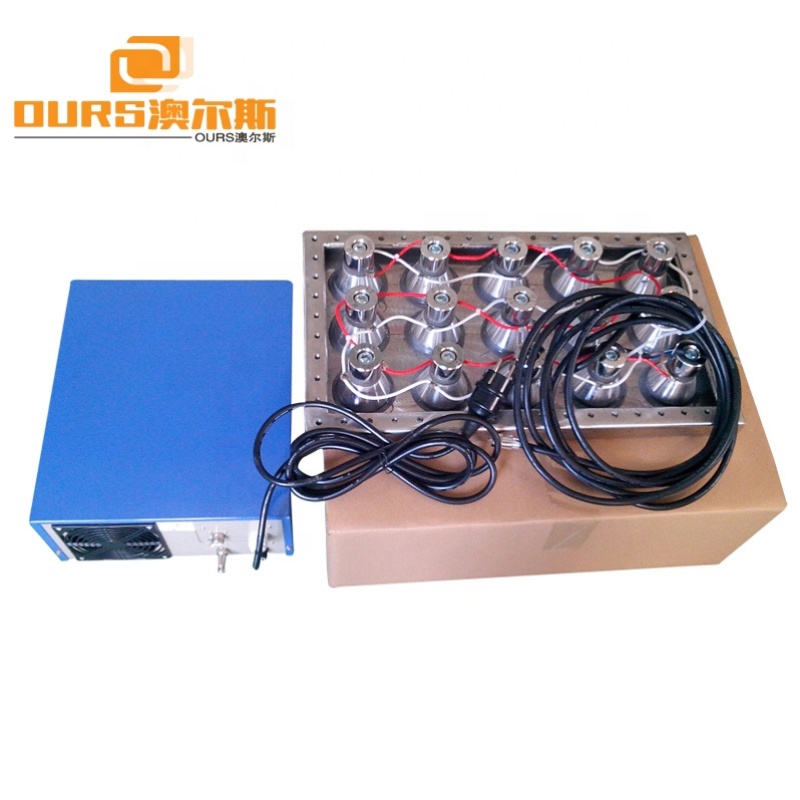

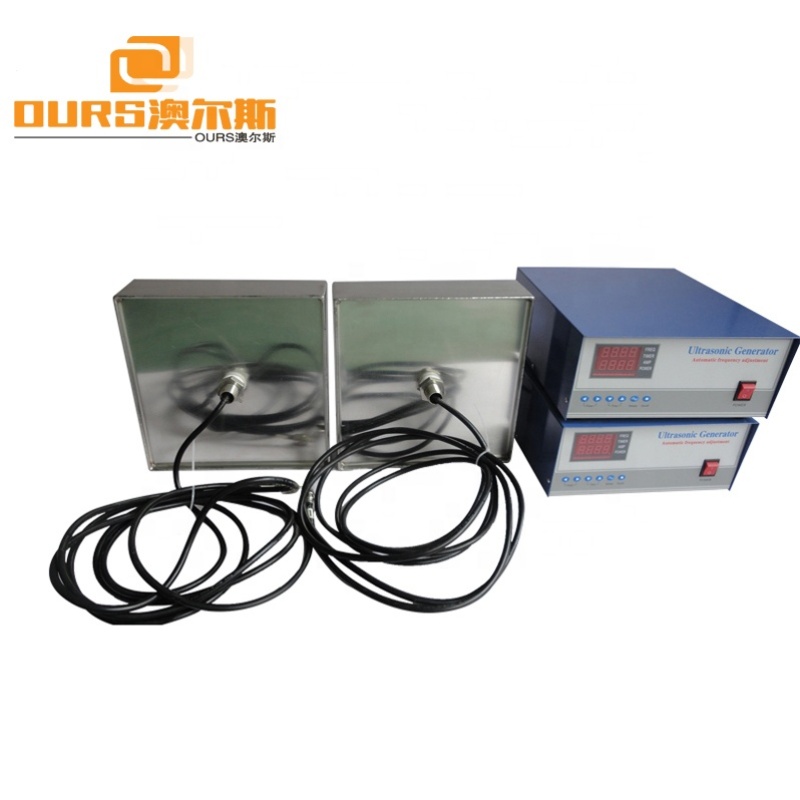

04Product display
