100KHZ 200W Economy Type Ultrasonic Cleaner Transducer Driver Circuit For Hospital Surgical Appliances



 1 (1).jpg

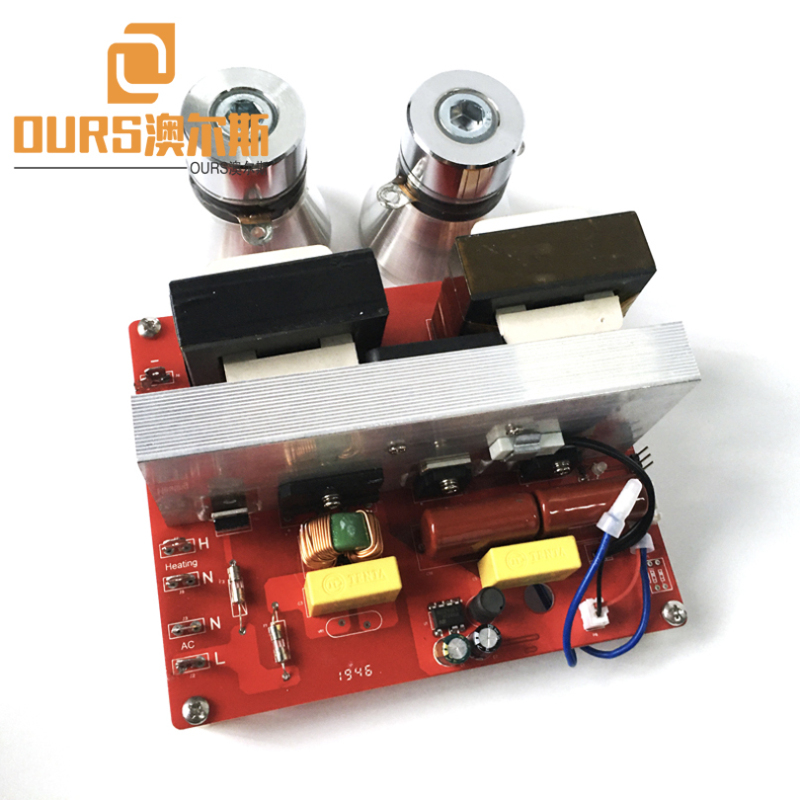

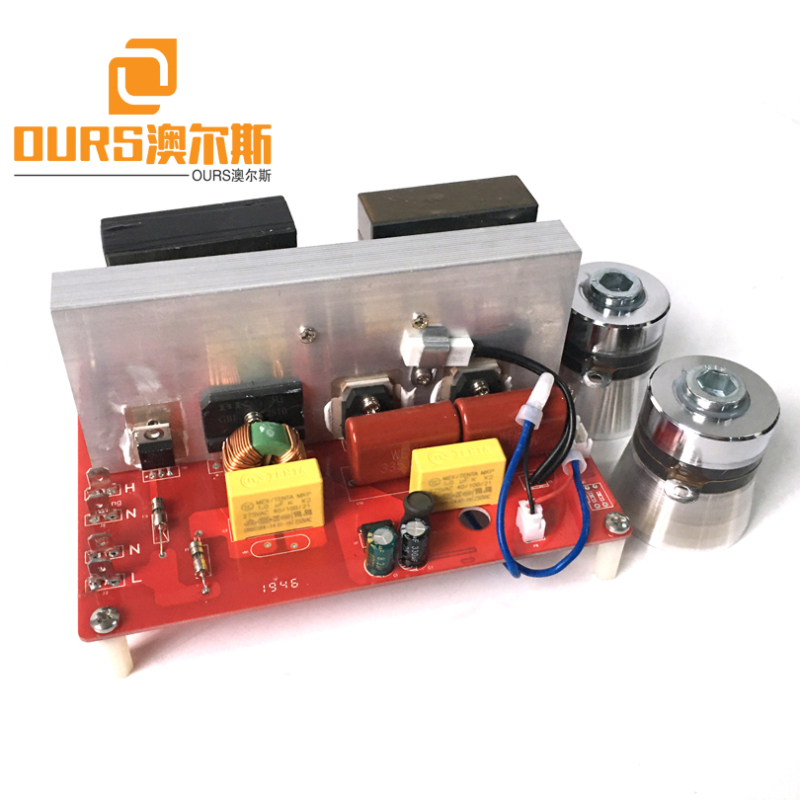

100KHZ 200W Economy Type Ultrasonic Cleaner Transducer Driver Circuit For Hospital Surgical Appliances



Low-power ultrasonic generator and integrated ultrasonic generator drive high-frequency transducer
The performance structure is relatively simple. The control box uses a microcomputer-controlled exciter line. The frequency is automatically tracked and swept. Compared with the high-power control box, it has stable and reliable work, and the ultrasonic power can be continuously adjusted to maximize the performance. The energy of the transducer is small, and it is suitable for cabinets, cabinets, cabinets, and line automation systems that need to generate ultrasound.
The working frequency of the low-power ultrasonic generator is automatically tracked, which makes the output match better, the power is stronger, and the efficiency is higher. The unique frequency sweeping working method can form a small reflow, and timely remove the dirt peeled off by the ultrasound from the surface of the workpiece. This achieves faster and more thorough cleaning effects, and the energy of the transducer is more concentrated. At the same time, it has perfect protection functions, overheating protection and overcurrent protection, and the work is more reliable.




The low-power ultrasonic generator can adapt to a variety of different equipment requirements, flexible and simple to operate.

Low-power ultrasonic generator: The control box adopts advanced technology such as micro-computer controlled other-excitation line, automatic frequency tracking and frequency sweeping mode. Compared with the traditional control box, it has stable and reliable work, continuously adjustable ultrasonic power, and can maximize the potential of the transducer. work
Automatic frequency tracking enables better output matching, more powerful power and higher efficiency. The unique frequency sweeping working method enables the cleaning liquid to form a small reflow under the effect of the frequency sweeping, and timely removes the dirt peeled off by the ultrasonic wave from the surface of the workpiece, so as to achieve faster and more thorough cleaning effect, and the ultrasonic cleaning efficiency is more high. At the same time, it has perfect protection functions: overheating protection and overcurrent protection, making the work more reliable.
Low-power ultrasonic generator with digital power adjustment can adapt to various cleaning requirements.







Type

Frequency

Power

Dimension
(mm)

Transducer numbers

ARS-DLB50W

25khz,28khz,33khz,40khz

50W

132×85×45mm

1 piece

ARS-DLB60W

25khz,28khz,33khz,40khz

60W

132×85×45mm

1 piece

ARS-DLB100W

25khz,28khz,33khz,40khz

100W

132×85×45mm

1-2 pieces

ARS-DLB120W

25khz,28khz,33khz,40khz

120W

132×85×45mm

1-2 pieces

ARS-DLB150W

25khz,28khz,33khz,40khz

150W

132×85×45mm

1-3 pieces

ARS-DLB200W

25khz,28khz,33khz,40khz,80khz,100khz,135khz.200W

200W

180×130×60mm

4 pieces

ARS-DLB300W

25khz,28khz,33khz,40khz

300W

180×130×60mm

6 pieces

ARS-DLB400W

25khz,28khz,33khz,40khz

400W

180×130×60mm

8 pieces

ARS-DLB500W

25khz,28khz,33khz,40khz

500W

180×130×60mm

10 pieces

ARS-DLB600W

25khz,28khz,33khz,40khz

600W

180×130×60mm

12 pieces













Ultrasonic PCB generator could to 2400W,welcome send the enquire

200W-600W Ultrasonic PCB frequency adjustable,display board is optional

Above ultrasonic PCB generator 110V-120V or 220V-240V are available,contact with us during your order with detail request
