1200W Triple Frequency Ultrasonic Generator for Underwater Piezoelectric Ultrasonic Submersible Cleaner
1-9 Set
$480.00
≥ 10 Set
$460.00
- Item No.20201104dfabbMOQ1 Set
- Product size45 x 42 x 26 mProduct weight15 kg
Choice
Quantity:
If you have your own design, please contact us, there will have a professional customer service to communicate with you.
Don't have your files right now?No worries, Check out our art tips for more information.
If over 500pcs, mass production will start until pre-production sample has been approved.
Est. 7 days production

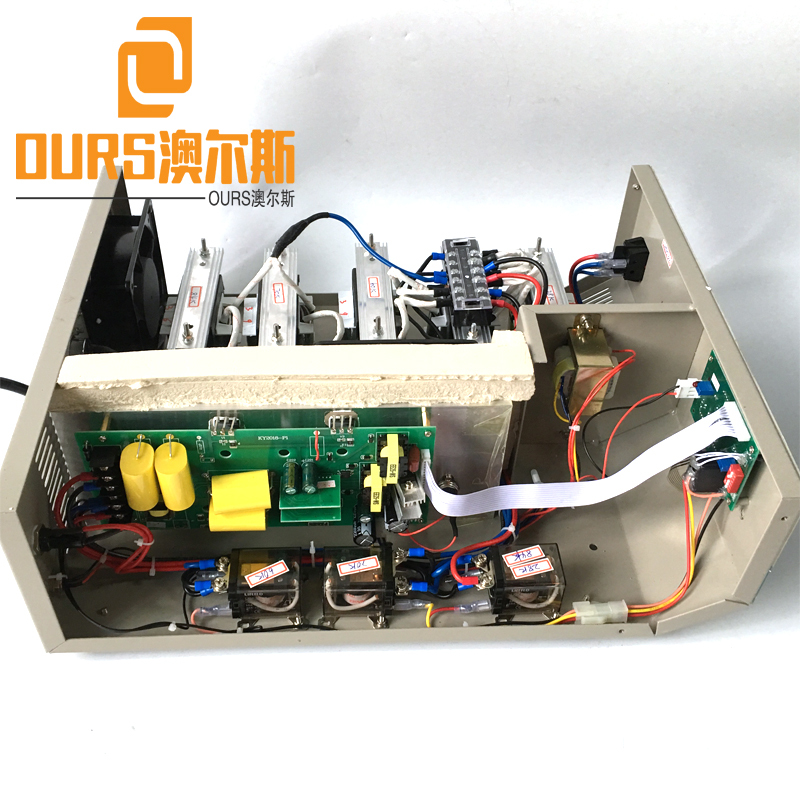

1200W Triple Frequency Ultrasonic Generator for Underwater Piezoelectric Ultrasonic Submersible Cleaner
My company in 2012 launched a new generation of ultrasonic generator
1) a new generation of computer chip, dual display frequency current, more powerful
2) using a pulse width control, more accurate and more stable output power adjustment.
3) The automatic adjustment and automatic frequency tracking, so that the tone machine more stable easier
4) enhanced circuit protection functions: over-temperature protection and over current protection, so that more reliable
5) the new circuit structure optimization design, the whole rational layout and maintenance more convenient and less costly.
Standard configuration features:
1. Timer
2. Frequency display and adjusting
3. Current Display
3. Power adjusting
4.remote control connector /PLC connecting
5.OutputPower plug
6.High-frequency connector or CE connector (US ,EU or standard type)
Digital ultrasonic generator selectable frequency 17khz,20khz,25KHZ, 28KHZ,33khz, 40KHZ, 68KHZ, 80KHZ, 130KHZ,200khz or higher frequency, single-frequency ultrasonic generator.
Model Name | Power(W) | Frequency (KHz) | Transducer numbers | Machine Size |
|
|
|
|
|
ARS-QXDY-300W | 300W |
17khz,20khz,25khz,28khz,33khz, 40khz
| 3-6 |
360*300*150mm L*W*H
|
ARS-QXDY-600W | 600W |
| 6-12 |
|
ARS-QXDY-900W | 900W |
| 9-18 |
|
ARS-QXDY-1000W | 1000W |
| 10-20 |
|
ARS-QXDY-1200W | 1200W |
| 12-24 |
|
ARS-QXDY-1500W | 1500W |
| 15-30 |
|
ARS-QXDY-1800W | 1800W |
| 18-36 |
|
ARS-QXDY-2000W | 2000W |
| 20-40 |
|
ARS-QXDY-2400W | 2400W |
| 24-48 |
|
ARS-QXDY-3000W | 3000W |
| 50-60 | 500*360*160mm L*W*H |
High Frequency | 300W-1200W | 54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ | ||
High Frequency | 100W-300W | 175-200KHZ | ||
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE |
