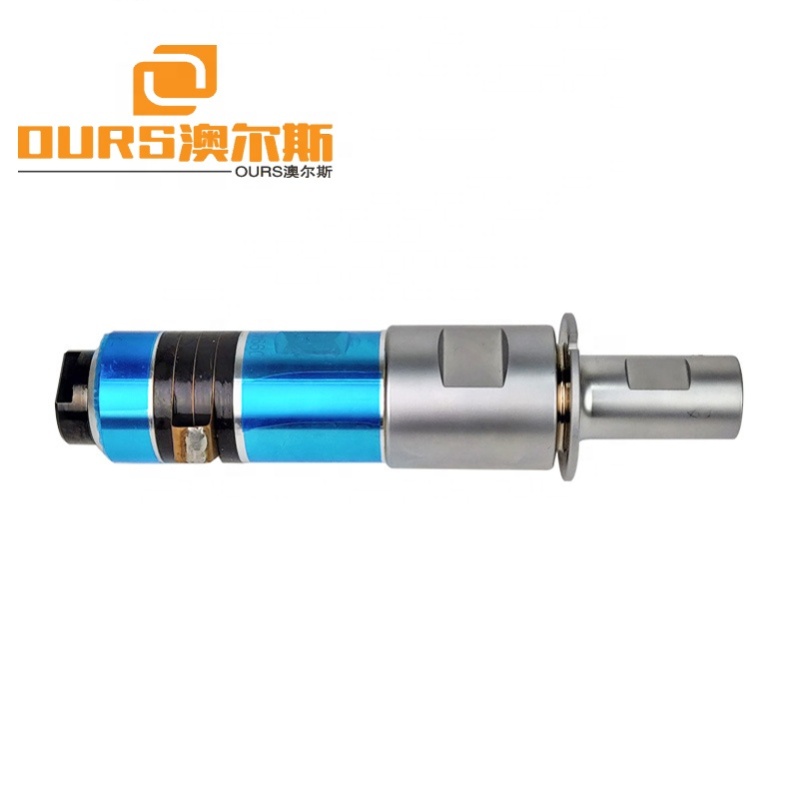

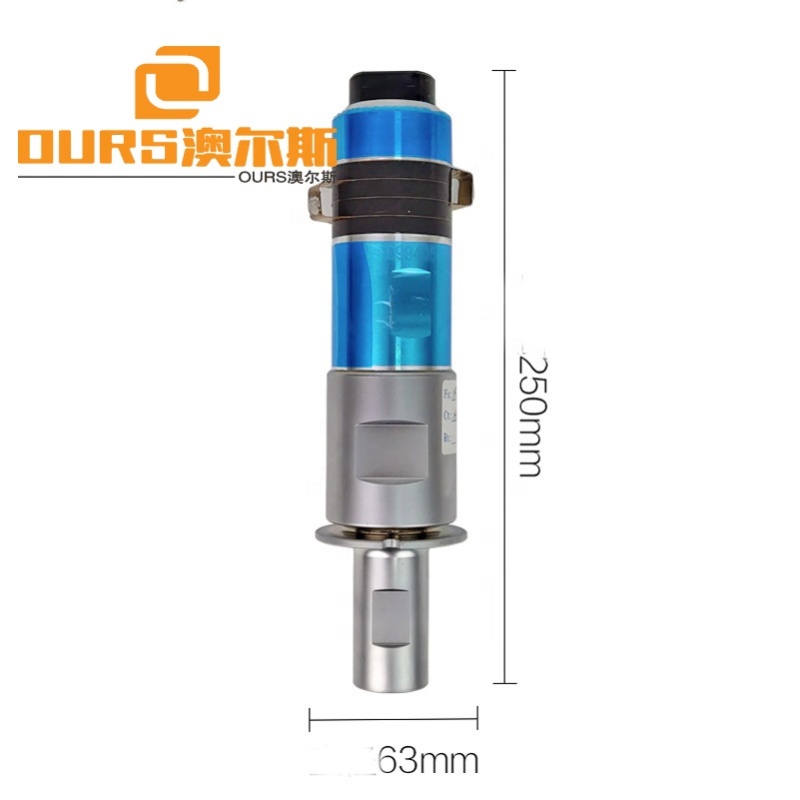

2000W 20khz ultrasonic welding piezoelectric transducer for Plastic welding machine 2000W

Message

$198.00

Have chosenThere are no options selected.

*Model Number
Start To Order

Add To Cart Successfully!

SEND INQUIRY
2000W 20khz ultrasonic welding piezoelectric transducer for Plastic welding machine 2000W
2000W 20khz ultrasonic welding piezoelectric transducer for Plastic welding machine 2000W
2000W 20khz ultrasonic welding piezoelectric transducer for Plastic welding machine 2000W
2000W 20khz ultrasonic welding piezoelectric transducer for Plastic welding machine 2000W
2000W 20khz ultrasonic welding piezoelectric transducer for Plastic welding machine 2000W
2000W 20khz ultrasonic welding piezoelectric transducer for Plastic welding machine 2000W
2000W 20khz ultrasonic welding piezoelectric transducer for Plastic welding machine 2000W

2000W 20khz ultrasonic welding piezoelectric transducer for Plastic welding machine 2000W

  • Item No.ARS-HJHNQ Ultrasonic Welding Transducer
    MOQ1 Unit

Available Options

Model Number
Add Request About This Product
Max file 5MB each
If lager file please send us email

Quantity:

From $198.00 / Unit
$198.00
You save $ -198.00
Trade Assuranceprotects your orders
On-time Dispatch Guarantee
On-time dispatch is guaranteed or you will be eligible to claim platform compensation.
Refund Policy
If the shipment is delayed or product quality differs from what are specified in the online order, you can claim for a refund.
Quick refund: If you can apply for a refund within two hours of making a payment, you will receive a refund immediately.

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production


20Khz Constant Ultrasonic Welding  Transducer With Customized

Main Features of Ultrasonic Welding Transducer:

1. High mechanical quality

2. Piezoelectric element offer a high speed of vibration.

3. Having steady output amplitude even the load markedly changed.

4. Extended using temperature, ensuring good amplitude linearity

5. Bolt-on mounting gives the fast, easy installation and high reliability.

6.easy for assembling

7. good heat resistance

8. large range of working temperature

9.low resonance impedance and heat productivity

10.good construction

11.fastened by bolt

20Khz Constant Ultrasonic Welding  Transducer With Customized

Type

Full-length(mm)

Joint Bolt(mm)

Frequency(KHz)

Resonance Impedance(Ω)

Capacity(pF)

Input Power
(W)

ARS-HJHNQ152500 P8

153

M20×1.5

15

15

13000

2500

ARS-HJHNQ152000 P8

167

M20×1.5

15

10

9500

2000

ARS-HJHNQ151800 P4

118

M20×1.5

20

15

15000

1800

ARS-HJHNQ20700 P8

112

1/2-20 UNF

20

15

9000

700

ARS-HJHNQ20900 P8

133

1/2-20 UNF

20

15

10000

900

ARS-HJHNQ30500 P8

77

M10×1.5

30

5

5500

500

ARS-HJHNQ28100 P8

91

M8×1

28

25

2200

100

ARS-HJHNQ28250 P8

94

1/2-20 UNF

28

20

4000

250

ARS-HJHNQ201500 P8

124

1/2-20 UNF

20

10

16000

1500

ARS-HJHNQ20900 P8

123

1/2-20 UNF

20

10

9500

900

ARS-HJHNQ152000 P4

171

M18×1.5

15

12

10000

2000

ARS-HJHNQ35100 P8

71

M8×1

35

25

2200

100

ARS-HJHNQ38200 P4

65

M8×1

38

14

3300

200
