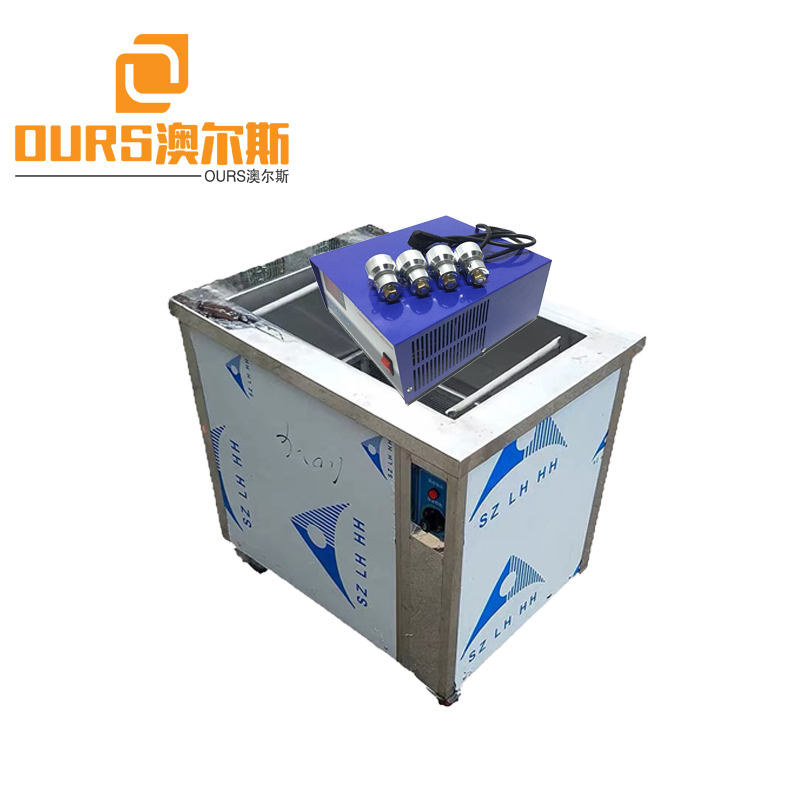

2000W 25KHZ/28KHZ Heated Ultrasonic cleaning machine For Melt blown cloth nozzle

Message

$3,850.00

Have chosenThere are no options selected.

* Model Number
* Feature
* Industry Used
Start To Order

Add To Cart Successfully!

SEND INQUIRY
2000W 25KHZ/28KHZ Heated Ultrasonic cleaning machine For Melt blown cloth nozzle

2000W 25KHZ/28KHZ Heated Ultrasonic cleaning machine For Melt blown cloth nozzle

  • Item No. 2020110417f82
    MOQ 1 Set
Tag   sourcing

Available Options

Model Number
Feature
Industry Used
Add Request About This Product
Max file 5MB each
If lager file please send us email

Quantity:

From $ 3850.003700.00  / Set
$ 3,850.00
You save  $  -3,850.00
Trade Assurance protects your orders
On-time Dispatch Guarantee
On-time dispatch is guaranteed or you will be eligible to claim platform compensation.
Refund Policy
If the shipment is delayed or product quality differs from what are specified in the online order, you can claim for a refund.
Quick refund: If you can apply for a refund within two hours of making a payment, you will receive a refund immediately.

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

2000W 25KHZ/28KHZ Heated Ultrasonic cleaning machine For Melt blown cloth nozzle


2000W 25KHZ/28KHZ Heated Ultrasonic cleaning machine For Melt blown cloth nozzle



product description

The principle of the ultrasonic cleaning machine is mainly to convert the sound energy of the power ultrasonic frequency source into mechanical vibration through the transducer. The cleaning liquid in the tank is subjected to ultrasonic radiation by cleaning the tank wall, so that the microbubbles in the liquid in the tank can Keep vibration under action. When the sound pressure or sound intensity reaches a certain level, the bubble will expand rapidly and then suddenly close. During this process, a shock wave is generated at the moment when the bubble is closed, which repeatedly impacts the adsorbed matter and dirt on the surface of the cleaning part. The adsorption of the dirt and the surface of the cleaning member is destroyed, and the fatigue damage of the dirt layer is caused, which is rejected. So as to achieve the purpose of cleaning.





Ultrasonic output frequency according to different working conditions to fine-tune the ultrasound sweep line, to improve the cleaning efficiency. Optional additional features: ultrasonic output power continuously adjustable, you can display the range 10 - 100%; digital The ultrasonic generator using IGBT module, microcontroller technology, more stable working state, the output power is more powerful.

Ultrasonic single tank Product Features:

imported stainless steel plate and components, stainless steel structure, beautiful appearance and durable.
cleaning tank with heating and temperature control devices, temperature control range 30 ~ 110 ℃. .
imported high quality transducer, strong ultrasonic power output.
cleaning tank and generator uses a split-body design, easy to use.
The generator using the new circuit, power adjustable.
ultrasonic vibration, respectively, bottom of vibration and both side vibration, suitable for different cleaning requirements.
ultrasonic cleaning tank, in addition to standard sizes according to customer requirements.

Multi tank ultrasonic cleaning machine using city water, pure water, alkaline or weak acidic, aqueous solvent for cleaning agent, multi and spraying, jet, hot dipping, bubble and cleaning method combined with suitable drying method, semi automatic ultrasonic cleaning production line. Especially suitable for small quantities of electronic circuit boards, electronic parts, clock parts, metal stamping parts, metal parts, jewelry, jewelry, glasses, glass, semiconductor wafers, such as cleaning. With unique technology, strong targeted, simple structure, easy to use and so on, and the equipment cost is low, the investment is little, and can meet the special cleaning requirements of different products.

CDVGRF.JPG 2-9.jpg2-10.jpg2-12.jpg4-7.jpg




.JPG



1.JPG2.JPG8.jpg 9.JPG4.JPG

2000W 25KHZ/28KHZ Heated Ultrasonic cleaning machine For Melt blown cloth nozzle
