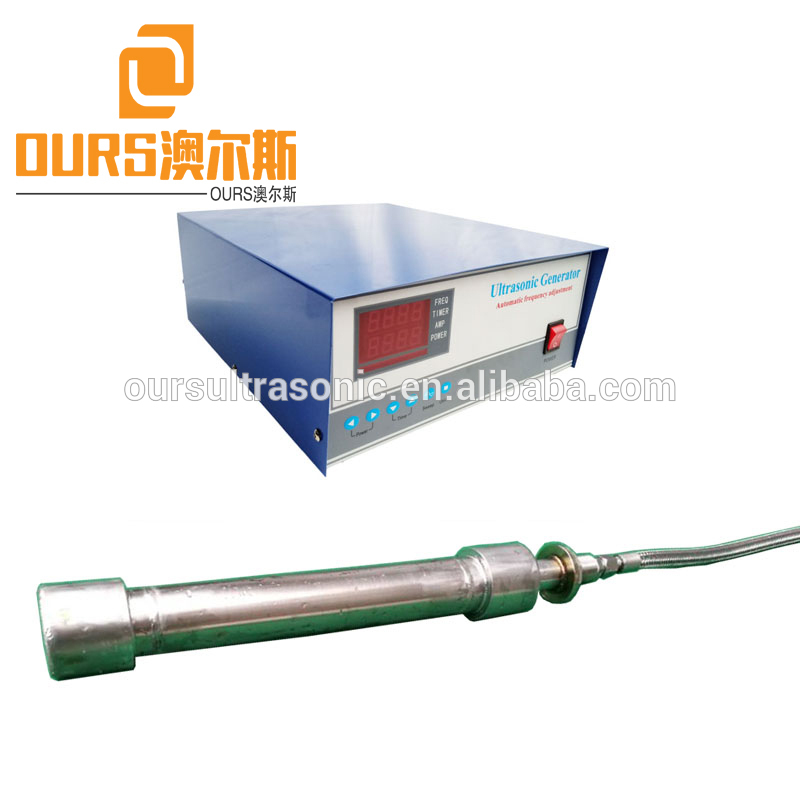

2000W 25KHZ Stainless Steel Tubular Biodiesel Ultrasound Transducer Liquid Tank For Biodiesel Refining

Message

$2,680.00

Have chosenThere are no options selected.

* Model Number
Start To Order

Add To Cart Successfully!

SEND INQUIRY
2000W 25KHZ Stainless Steel Tubular Biodiesel Ultrasound Transducer Liquid Tank For Biodiesel Refining

2000W 25KHZ Stainless Steel Tubular Biodiesel Ultrasound Transducer Liquid Tank For Biodiesel Refining

  • Item No. Ultrasonic Liquid Processor
    MOQ 1 Set
  • Product size 88 x 45 x 47 cm
    Product weight 45 kg
Tag   wholesale

Available Options

Model Number
Add Request About This Product
Max file 5MB each
If lager file please send us email

Quantity:

From $ 2680.002580.00  / Set
$ 2,680.00
You save  $  -2,680.00
Trade Assurance protects your orders
On-time Dispatch Guarantee
On-time dispatch is guaranteed or you will be eligible to claim platform compensation.
Refund Policy
If the shipment is delayed or product quality differs from what are specified in the online order, you can claim for a refund.
Quick refund: If you can apply for a refund within two hours of making a payment, you will receive a refund immediately.

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

2000W 25KHZ Stainless Steel Tubular Biodiesel Ultrasound Transducer Liquid Tank For Biodiesel Refining

 1 (1).jpg

 Ultrasonic tube reactor also named High-power ultrasonic sound chemical processing system ,which is widely used in biodiesel refining,mixed,chemical mixed,food ,etc. they can speed up the reaction to save much time for you.



Ultrasonic vibrating rods use ultrasonic waves to have a positive and negative pressure alternating cycle during the transfer process. When the positive phase is pressed, the medium molecules are squeezed to increase the original density of the medium; in the negative phase, the medium molecules are sparse, discrete, and the medium density is reduced.
The ultrasonic vibrating rod can generate ultrasonic waves uniformly around 360 degrees, and the output of the energy is not affected by load changes such as liquid level and temperature difference. Ultrasonic vibrating rods generally include a high-power ultrasonic transducer, a horn, and a tool head for generating ultrasonic vibrations and emitting the vibration energy into the liquid.

Ultrasonic vibrating rods are mainly used for cleaning the inner walls of various types of tubes and tubes. For example, ultrasonic on-line anti-scaling of boilers, ultrasonic cleaning in vacuum/pressure applications, cleaning of inner walls of metal pipes, and fields of high-power sonochemical treatment such as extraction and separation of traditional Chinese medicines, synthesis and Degradation, biodiesel production, treatment of microorganisms, degradation of toxic organic pollutants, biodegradation treatment, biological cell comminution, dispersion and condensation.

Ultrasonic vibrator principle:

    The ultrasonic vibrating rod is a physical mechanism that uses ultrasonic waves to pulverize insoluble solids (or liquids) and is generally considered to be an ultrasonic cavitation effect. Ultrasonic cavitation effect means that under the action of strong ultrasonic waves, a large number of bubbles will be generated in the liquid. The small bubbles will gradually grow and increase with the ultrasonic vibration, then suddenly burst and split, and the bubbles after the split will continue to grow and burst. . When these small bubbles collapse rapidly, high temperature and high pressure are generated in the bubbles, and due to the high velocity of the liquid around the bubbles, a strong local shock wave is generated in the liquid near the bubbles, and a local high temperature and high pressure are also formed, thereby generating a local high temperature and high pressure. Ultrasonic pulverization and emulsification.

The cavitation of the ultrasonic vibrating rod:

   In some cases, the generation of ultrasonic effects is related to the cavitation mechanism, which refers to a series of dynamic processes that occur in the tiny bubbles (holes) present in the liquid under the action of sound waves: oscillation, Expand, shrink, and even collapse. In the event of cavitation, the local state of the liquid changes greatly, resulting in extreme high temperatures and high pressures.
Ultrasonic vibrating rod components:
   1 ultrasonic transducer 2 ultrasonic horn 3 ultrasonic tool head 4 ultrasonic drive power. Its manifestation is that the transducer moves back and forth in the longitudinal direction, and the amplitude is generally several micrometers. Such amplitude power density is insufficient and cannot be directly used. The horn is designed to amplify the amplitude, isolate the reaction solution and the transducer, and also serves to fix the entire ultrasonic vibration system. The tool head is connected to the horn, and the horn transmits ultrasonic energy vibration to the tool head, and the ultrasonic energy is emitted from the tool head into the chemical reaction liquid.

Ultrasonic vibrators are widely used in the fields of ultrasonic homogenization, ultrasonic dispersion, ultrasonic emulsification, ultrasonic cell pulverization, ultrasonic extraction separation, ultrasonic exhaust and accelerated chemical reaction of liquid-liquid and liquid-solid substances. Specific industries include:

1) Fuel: Emulsification of water in fuel oil to save fuel and reduce exhaust pollution.

2) Food: Emulsification of emulsified sugar in milk, emulsification of ghee to make high-grade lactose, dispersion of raw materials in the manufacture of sauces, etc.

3) Cosmetics: emulsifying wax, paraffin, etc., and dispersing fine particles of oil such as detergents, shampoos, and lotions.

4) Lubricant: Emulsification of rolling oil, production of emulsion used for cooling and lubrication during rolling of metal sheets.

5) Coating: Emulsification with waterproof coating agent for packaging, emulsified polyethylene in water, emulsification of waterproofing agent, emulsification of resin processing liquid for fishing net.

6) Chemical: Accelerate the speed of chemical reaction, dispersion of fluorescent materials and photosensitive materials.

7) Medicine: Extraction of active ingredients of Chinese herbal medicine.

8) Environmental protection: treatment of sewage.

Main technical indicators of ultrasonic vibrating bar:

1. Optional frequency range: 20KHz ~ 28KHz.
2, commonly used frequency: 20kHz
3, the nominal power per unit: 500W, 1000W, 1500W, 2000W The lower the frequency, the greater the power per unit; the higher the frequency, the smaller the power per unit. It can also be used in multiple units.
4, tool head (probe) material: stainless steel, titanium alloy, can also be customized according to user's special requirements.



Ultrasonic tube  reactor

Frequency

(KHz)

Ultrasound

Output(W)

Total Length

(mm)

Diameter

(mm)

Static Capacity

(pF±10%)

ARS-GZCSB300

25-27

300

564

Φ57-73

68000

ARS-GZCSB600

25-27

600

564

Φ57-73

68000

ARS-GZCSB900

 25-27

900

564

Φ57-73

68000

ARS-GZCSB1500

25-27

1500

850

Φ57-73

68000

ARS-GZCSB2000

25-27

2000

1100

Φ57-73

132000








 GZBFSQ-3GZBFSQ-2
