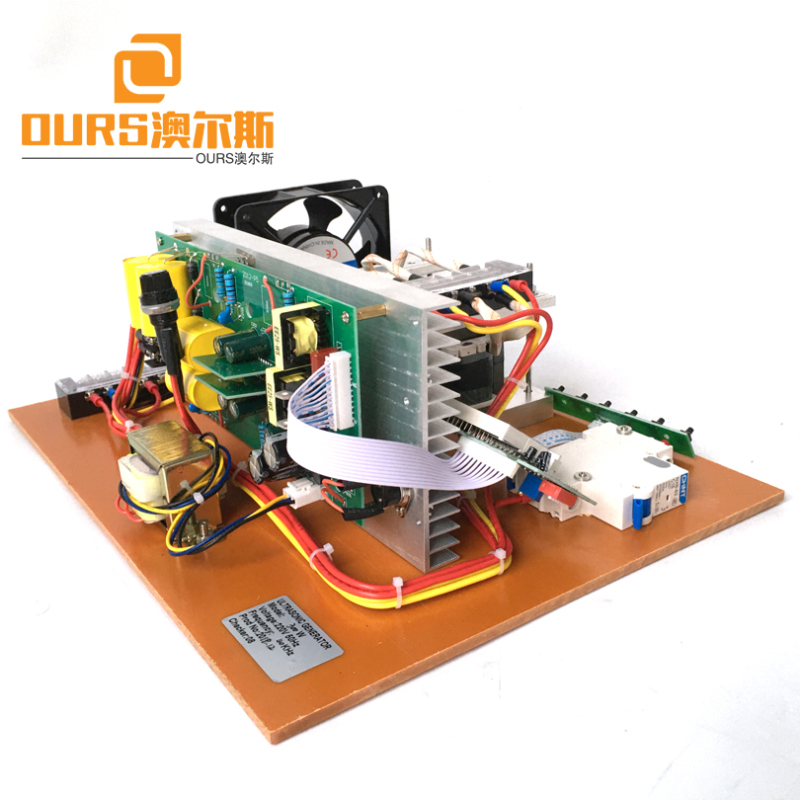

2000W 28KHZ/40KHZ Digital Ultrasonic Power Supply Circuit For Magnetic Industry

Ultrasonic Generators which adopts advanced high speed single chip microcomputer control technology and possess new circuit design theory,it is a new generation of multi-functional ultrasonic cleaning power.
The control box adopts high speed single chip microcomputer controlled digital frequency synthesis technology with half bridge circuit drive which is stable and low power loss.
Digital ultrasonic power is adjustable. Thus it is more flexible and more efficient.
Its complete protection function which include overheat alarm and over-current alarm make the work become more reliable.
Its accurate timer which calculate results has four numbers, guarantee the quality of your work.
The screen can display status of work mode,frequency or current according to your requirement.

1, suitable for a small number of single transducers or less than 6 transducers.
2, small volume, easy to install inside the washing machine shell or distribution cabinet.
3. It is suitable for all kinds of small or micro cleaning machines.
4, the technology is stable and mature, and the similar microgenerator has the longest service life.
Two. The characteristics of the product:
1. All the power output components IGBT are imported devices, with the advantages of small size, high power and fast response.
2, power pipe: adopt imported Japanese Toshiba 90A/1200V import pipe to eliminate the possibility of burning pipe.
3, the latest excitation control circuit, the output power of up to 93%, so that the ultrasonic cavitation density has been greatly improved.
4, the output current is sine wave, which can extend the life of transducer and generator itself.
5, wide range sweep frequency: 20KHZ - 50KHZ adjustable, suitable for all kinds of transducers.
6, power adjustable function; 7. Current display function;
