2000W Big Power Waterproof Vibration Ultrasonic Wave Immersible Pack Piezoelectric Transducer Board 28K/80K/130K Tri-Band

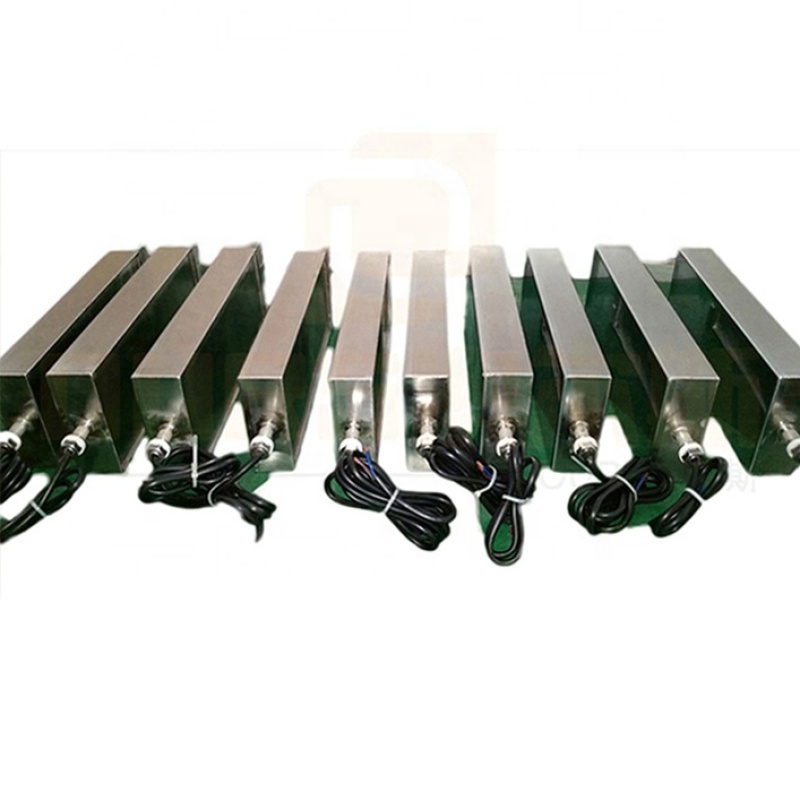

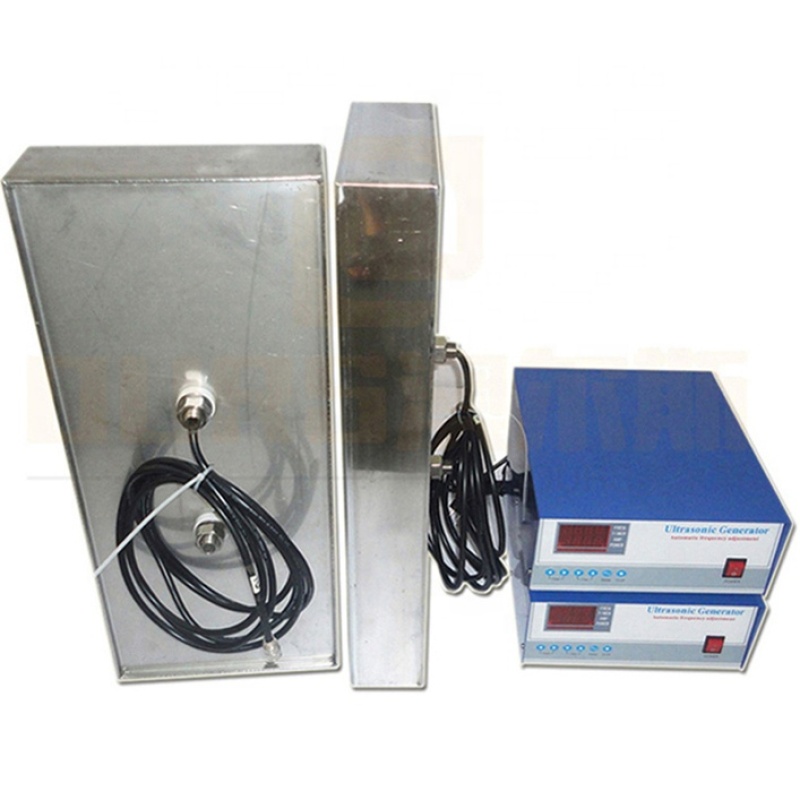

The Ultrasonic Immersible Transducer Pack is also called an ultrasonic vibration box or an ultrasonic cleaning box, and is an ultrasonic cleaning device which is formed by bonding an ultrasonic vibrator to a stainless steel case and an ultrasonic generator. It is generally placed in various cleaning tanks for ultrasonic cleaning purposes. The size of the vibration plate and the direction of the lead tube can be made into the bottom vibration type, the side vibration type and the top vibration type according to the installation position, and the effect of thorough cleaning can be achieved by using different requirements. Suitable for electronic parts, electroplating hardware, auto parts, optical lenses, jewelry, glassware, filter cores, spinnerets, medical equipment, etc.
Type Description of Ultrasonic immersible transducer pack:
A
Mounting to tank wall with threaded duct nipple and fastening bracket. Cable through the tank wall.
B
Mounting to tank wall with threaded duct nipple and fixing nipple. Cable through the tank wall.
C
Mounting to tank wall with hanging hooks. Rigid stainless steel tube for cable over the tank top.
D
Mounting to tank wall with hanging hooks. Flexible metal armoured 1 m hose for cable over the tank top.
E
Mounting to tank bottom. Rigid stainless steel tube for cable through the tank wall.
F
Mounting to tank bottom. Rigid stainless steel tube for cable over the tank top.
G
Mounting to tank bottom. Flexible metal armoured 0,5 m hose for cable through the tank wall.
H
Mounting to tank bottom. Flexible metal armoured 1,5 m hose for cable over the tank top.
X
Non-standard mounting
Structural arrangement: The ultrasonic vibration box can be arranged in the pool and the water tank, and can be emitted upward from the bottom, the top is emitted downward, and the left and right are emitted.
Characteristics of ultrasonic vibration plate products:
The ultrasonic vibration plate made of special technology and material has the characteristics of high stability and long service life, as follows:
1. Transducers specially designed and manufactured have excellent performance and consistency. The efficiency of small signal electro-acoustic conversion can reach more than 96%.
2. The gluing process of the first-class transducer and the monitoring range board of the bottom cell phone card monitor can ensure that there is no degumming concern and the sound wave transmission path is smooth.
3. Excellent high temperature resistance enables the vibrating plate to work stably in boiling water at 100 C for a long time.
4. Increase the number of transducers, so that the actual working power of each transducer is 70-80% of the design rated value, prolong the working life of the transducer, and its average working life is more than 12,000 hours.
Immersion Ultrasonic Cleaning Transducer Use range:
Ultrasonic vibration plate box is widely used in electronic devices, semiconductor wafers, circuit boards, plated parts, optical lenses, chemical fiber spinnerets, spinnerets, latex tools, magnetic materials, glassware, communication equipment, hydraulic parts, hardware tools, Bearings, nozzles, oil pumps, carburetor, locomotive parts, degreasing, descaling, carbon removal and surface treatment, especially for deep hole, blind hole, concave groove cleaning is an ideal equipment.
Diamention(mm) | Frequency (Khz) | Power(W) | Ultrasonic Transducer | |
ARS-ZBH300W | 300*190*100 | 25,28,33,40,80,130 | 300 | 6 |
ARS-ZBH600W | 360*275*100 | 25,28,33,40,80,130 | 600 | 12 |
ARS-ZBH1000W | 450*350*100 | 25,28,33,40,80,130 | 1000 | 20 |
ARS-ZBH1200W | 470*380*100 | 25,28,33,40,80,130 | 1200 | 24 |
ARS-ZBH1500W | 520*450*100 | 25,28,33,40,80,130 | 1500 | 30 |
ARS-ZBH1800W | 560*450*100 | 25,28,33,40,80,130 | 1800 | 36 |
ARS-ZBH2000W | 650*450*100 | 25,28,33,40,80,130 | 2000 | 40 |
ARS-ZBH2400W | 740*520*100 | 25,28,33,40,80,130 | 2400 | 48 |
ARS-ZBH3000W | 820*540*100 | 25,28,33,40,80,130 | 3000 | 60 |
ARS-ZBH5000W | 1200*590*100 | 25,28,33,40,80,130 | 5000 | 100 |
Above are single frequency ultrasonic immersible transducer pack OEM Ultrasonic Immersible Transducer Pack(Size, Frequency,Power) |
Multi-frequency Submersible ultrasonic transducer
Type | Diamention(mm) | Frequency (Khz) | Power (W) | ||
Dual frequency | Triple frequency | Fourfold frequency | |||
ARS-DPZBH600W | 450*350*100 | 38/80 40/100 | 25/40/80 28/80/130 40/80/100 | 28/60/70/84 40/77/100/170 | 600 |
ARS-DPZBH1000W | 450*350*100 | 38/80 40/100 | 25/40/80 28/80/130 40/80/100 | 28/60/70/84 40/77/100/170 | 1000 |
ARS-DPZBH1200W | 650*450*100 | 38/80 40/100 | 25/40/80 28/80/130 40/80/100 | 28/60/70/84 40/77/100/170 | 1200 |
ARS-DPZBH1500W | 650*450*100 | 38/80 40/100 | 25/40/80 28/80/130 40/80/100 | 28/60/70/84 40/77/100/170 | 1500 |
ARS-DPZBH2000W | 650*450*100 | 38/80 40/100 | 25/40/80 28/80/130 40/80/100 | 28/60/70/84 40/77/100/170 | 2000 |
ARS-DPZBH2400W | 820*540*100 | 38/80 40/100 | 25/40/80 28/80/130 40/80/100 | 28/60/70/84 40/77/100/170 | 2400 |
ARS-DPZBH3000W | 820*540*100 | 38/80 40/100 | 25/40/80 28/80/130 40/80/100 | 28/60/70/84 40/77/100/170 | 3000 |
