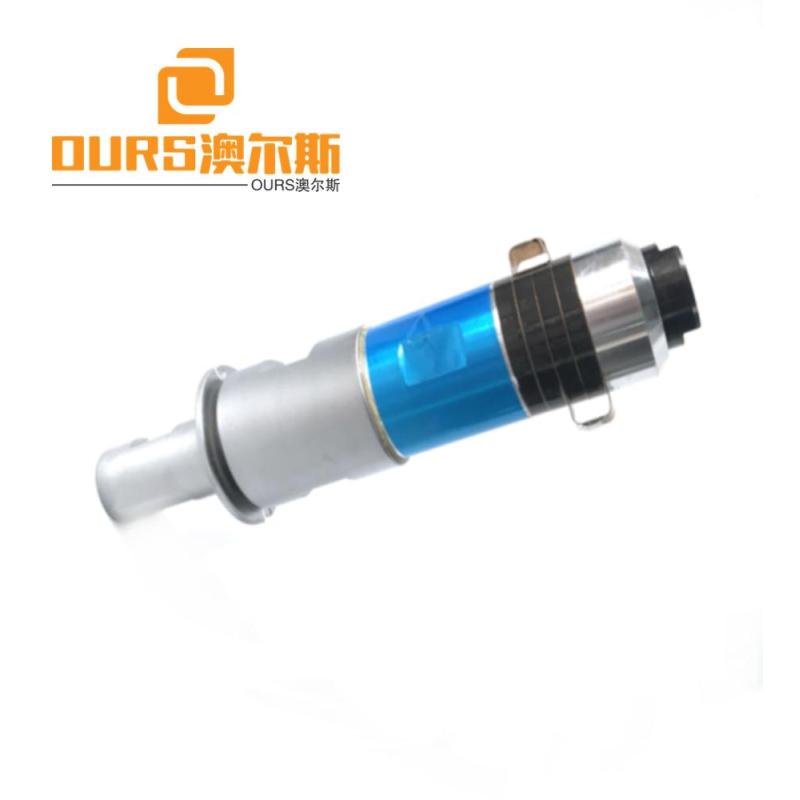

2000w 20khz Ultrasonic Welding Transducer For mask Sewing

Message

$260.00

Have chosenThere are no options selected.

* Model Number
Start To Order

Add To Cart Successfully!

SEND INQUIRY
2000w 20khz Ultrasonic Welding Transducer For mask Sewing

2000w 20khz Ultrasonic Welding Transducer For mask Sewing

  • Item No. ARS-HJHNQ200020
    MOQ 1 Unit
Tag   sourcing

Available Options

Model Number
Add Request About This Product
Max file 5MB each
If lager file please send us email

Quantity:

From $ 260.00  / Unit
$ 260.00
You save  $  -260.00
Trade Assurance protects your orders
On-time Dispatch Guarantee
On-time dispatch is guaranteed or you will be eligible to claim platform compensation.
Refund Policy
If the shipment is delayed or product quality differs from what are specified in the online order, you can claim for a refund.
Quick refund: If you can apply for a refund within two hours of making a payment, you will receive a refund immediately.

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production


The ultrasonic transducer transmits ultrasonic waves to plastic processing parts through the welding head, so that the two plastic joint surfaces are subjected to severe friction due to the action of ultrasonic waves, and the frictional heat causes the plastic joint surfaces to melt and complete the bonding. This technology has the advantages of fast speed and firm welds, and more importantly, it can automate the production and processing of plastic products. Ultrasonic plastic welding machine can be used for plastic welding, implantation, forming, riveting, spot welding, cutting, sewing and other operations. As long as the welding head is changed, one machine can be used for multiple applications.
The ultrasonic welding transducer for ultrasonic processing of thermoplastic plastics uses high-frequency friction between working interfaces to rapidly generate heat between molecules. When this heat is sufficient to work, the ultrasonic vibration is stopped. At this time, the working connection The surface is solidified by melting to complete the processing procedure. Frequently used in plastic processing frequency of 20KHZ and 15KHZ, ultrasonic welding machine should be used in electronics, stationery, transportation equipment, toys, cosmetics, motors and other PP, PE, ABS, acrylic and other materials.

Type

Full-length(mm)

Joint Bolt(mm)

Frequency(KHz)

Resonance Impedance(Ω)

Capacity(pF)

Input Power
(W)

ARS-HJHNQ152500 P8

153

M20×1.5

15

15

13000

2500

ARS-HJHNQ152000 P8

167

M20×1.5

15

10

9500

2000

ARS-HJHNQ151800 P4

118

M20×1.5

20

15

15000

1800

ARS-HJHNQ20700 P8

112

1/2-20 UNF

20

15

9000

700

ARS-HJHNQ20900 P8

133

1/2-20 UNF

20

15

10000

900

ARS-HJHNQ30500 P8

77

M10×1.5

30

5

5500

500

ARS-HJHNQ28100 P8

91

M8×1

28

25

2200

100

ARS-HJHNQ28250 P8

94

1/2-20 UNF

28

20

4000

250

ARS-HJHNQ201500 P8

124

1/2-20 UNF

20

10

16000

1500

ARS-HJHNQ20900 P8

123

1/2-20 UNF

20

10

9500

900

ARS-HJHNQ152000 P4

171

M18×1.5

15

12

10000

2000

ARS-HJHNQ35100 P8

71

M8×1

35

25

2200

100

ARS-HJHNQ38200 P4

65

M8×1

38

14

3300

200






----_11.jpg----_12.jpg.jpg2.JPGShiping and Packing.jpg
