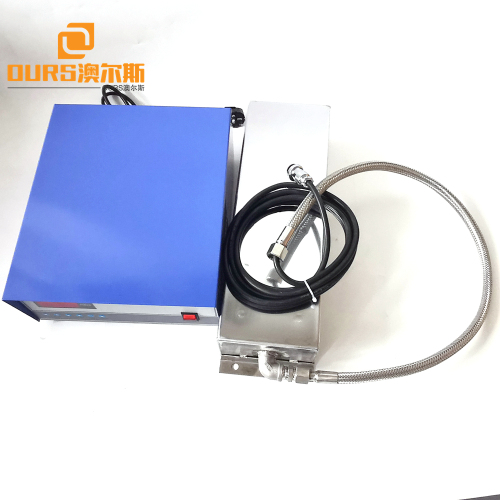

2000w 25khz 316 SS Ultrasonic waterproof Transducer Pack With Generator For Cleaning of Processing Utensils In The Pharmaceut

Message

$1,390.00

Have chosenThere are no options selected.

* Model Number
Start To Order

Add To Cart Successfully!

SEND INQUIRY
2000w 25khz 316 SS  Ultrasonic waterproof  Transducer Pack With Generator  For Cleaning of Processing Utensils In The Pharmaceut

2000w 25khz 316 SS Ultrasonic waterproof Transducer Pack With Generator For Cleaning of Processing Utensils In The Pharmaceut

  • Item No. 2021062546856
    MOQ 1 Set
  • Product size 80 x 60 x 50 cm
    Product weight 60 kg
Tag   wholesale

Available Options

Model Number
Add Request About This Product
Max file 5MB each
If lager file please send us email

Quantity:

From $ 1390.001380.00  / Set
$ 1,390.00
You save  $  -1,390.00
Trade Assurance protects your orders
On-time Dispatch Guarantee
On-time dispatch is guaranteed or you will be eligible to claim platform compensation.
Refund Policy
If the shipment is delayed or product quality differs from what are specified in the online order, you can claim for a refund.
Quick refund: If you can apply for a refund within two hours of making a payment, you will receive a refund immediately.

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production


Ultrasonic Immersible Transducer Pack also called the inputting type ultrasonic vibration plates, this product is suitable for cleaning electroplating parts before cleaning, horologe parts, hardware machinery parts, polyester filtering cores, semiconductor wafer, tools, lens, frames, jewellery, glass, utensils and other industries, wide application.



Type Description
A.Mounting to tank wall with threaded duct nipple and fastening bracket. Cable through the tank wall.
B.Mounting to tank wall with threaded duct nipple and fixing nipple. Cable through the tank wall.
C.Mounting to tank wall with hanging hooks. Rigid stainless steel tube for cable over the tank top.
D.Mounting to tank wall with hanging hooks. Flexible metal armoured 1 m hose for cable over the tank top.
E.Mounting to tank bottom. Rigid stainless steel tube for cable through the tank wall.
F.Mounting to tank bottom. Rigid stainless steel tube for cable over the tank top.
G.Mounting to tank bottom. Flexible metal armoured 0,5 m hose for cable through the tank wall.
H. Mounting to tank bottom. Flexible metal armoured 1,5 m hose for cable over the tank top.
X.Non-standard mountingUltrasonic immersible pack for ultrasonic washing

Type

Diamention(mm)

Frequency (khz)

Power(W)

Ultrasonic Transducer

ARS-ZBH300W

300*190*100

25,28,33,40,80,130

300

6

ARS-ZBH600W

360*275*100

25,28,33,40,80,130

600

12

ARS-ZBH1000W

450*350*100

25,28,33,40,80,130

1000

20

ARS-ZBH1200W

470*380*100

25,28,33,40,80,130

1200

24

ARS-ZBH1500W

520*450*100

25,28,33,40,80,130

1500

30

ARS-ZBH1800W

560*450*100

25,28,33,40,80,130

1800

36

ARS-ZBH2000W

650*450*100

25,28,33,40,80,130

2000

40

ARS-ZBH2400W

740*520*100

25,28,33,40,80,130

2400

48

ARS-ZBH3000W

820*540*100

25,28,33,40,80,130

3000

60

ARS-ZBH5000W

1200*590*100

25,28,33,40,80,130

5000

100

Above are single frequency ultrasonic immersible transducer pack OEM Ultrasonic Immersible Transducer Pack(Size, Frequency,Power)
