200KHZ High Frequency 1200W High Quality Ultrasonic Power Supply Circuit For Medical

Double Frequenies Ultrasonic Generator with multi-functional is specialized in ultrasonic cleaning system.

With more than 10 years research and application experience, we explored this microprocessor controlled, newly designed generator specially for ultrasonic cleaning.

The ultrasonic generator has the function of fine-tuning the frequency, the adjustment range is 2%, and the adjustment is slightly adjusted under different working conditions, so that the transducer is always working in the state, the conversion efficiency is achieved, and the effect can be achieved under different working conditions.
The ultrasonic generator has a frequency sweep function, and the ultrasonic frequency is reciprocally swept in a reasonable range during the cleaning process to drive the cleaning liquid to form a fine reflow, so that the workpiece dirt is quickly taken away from the workpiece surface while being ultrasonically peeled off, thereby improving the cleaning efficiency.
The ultrasonic generator has the function of power regulation, and the output power can be continuously adjusted from 10% to 100% to meet the requirements of various cleaning objects.

Ultrasonic power sources are often referred to as ultrasonic sources, and ultrasonic generators are an important part of high-power ultrasound systems. Its function is to convert electrical energy into a high-frequency alternating current signal that matches the ultrasonic transducer, driving the ultrasonic transducer to work.

Features of ultrasonic generator

The ultrasonic generator produced by the company has the characteristics of compact structure, convenient installation, simple operation and high cost performance. The ultrasonic generator can perform ultrasonic driving work automatically, quickly, accurately and continuously.
The standard ultrasonic generator is an indispensable part of the ultrasonic cleaning machine. The quality of the ultrasonic generator directly determines the quality of the ultrasonic cleaning machine.
The full range of digital standard ultrasonic generators is a high-performance ultrasonic power supply product independently developed by our company based on foreign advanced technology. The long-term use certificate proves that the ultrasonic generator can be connected to a single cleaning tank, a vibration plate or a large cleaning system. Provides fast, uniform and high quality cleaning results.

The control box adopts advanced techniques, like separate-excited circuit, controlled by microcomputer, frequency automatic tracking and frequency sweeping, etc. Compared with traditional control box, it has better performances of stable and reliable operation and constantly adjustable ultrasonic frequency, which can develop the potential capacity of transducer in maximum. The automatic tracking of operating frequency can optimize output matching, strengthen power and raise efficiency. With the unique frequency-sweeping operating pattern, the cleaning solution can form a fine stream of refluence, which can time wash off the dirty uncovered by ultrasonic wave from the surface of working pieces and thus reach faster and thorough cleaning effect and raise the efficiency of ultrasonic cleaning. At the same time, it has perfect protective capacity: over temperature protection and overcurrent protection for more reliable operation; 4-bit timer for more accurate time control to second. With digital power adjustment, it can meet different cleaning demands. It permits optional alteration at working state, so the operation is freer. The complete appliance adopts building block design. With computer fault location and display system, its operation and maintenance are more convenient. Protected by rust proof and isolated structure, this generator can work under rigid circumstances.

which is controlled by single chip technology.in order to meet the special needs.output two different frequency ultrasonic source through only one output interface in accordance with customer’s requirement.

Environment temperature: 0-40C°

Relative humidity: 40%--90%

Time control: 0—59 minutes 59 seconds

Range of power control: 0-100%   digital control and adjustment of 16 grades

Internal overtemperature protection: 65 C°

Outer size:  L x W x H = 300 x 360 x 150

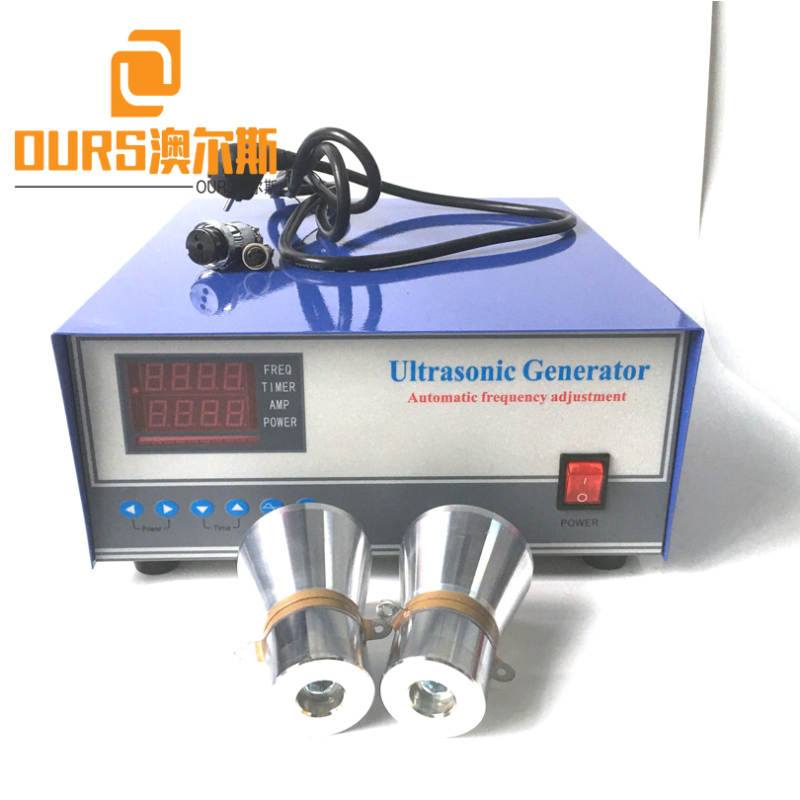

 Ultrasonic Frequency Generator Features:

Timer Function:set working time from 0-60 mins according to the cleaning objects.
sweep frequency tracking function:achieved sweep frquency cleaning and automatic frequency tracking.
Display working time.frquency.current by digital.More intuitive and convenient for data observation.
With over-voltage,over-current and overheating protection function,which prevent tube and plate from burning,reduced damage to the generator.
Effective power output which is as high as 98% above.
External PLC control switch.the remote control ultrasonic cleaning machine.
Ultrasonic power,time and frequency can be Continuous adjustable.
Constant and stable ultrasonic power output.

200KHZ High Frequency 1200W High Quality Ultrasonic Power Supply Circuit For Medical
