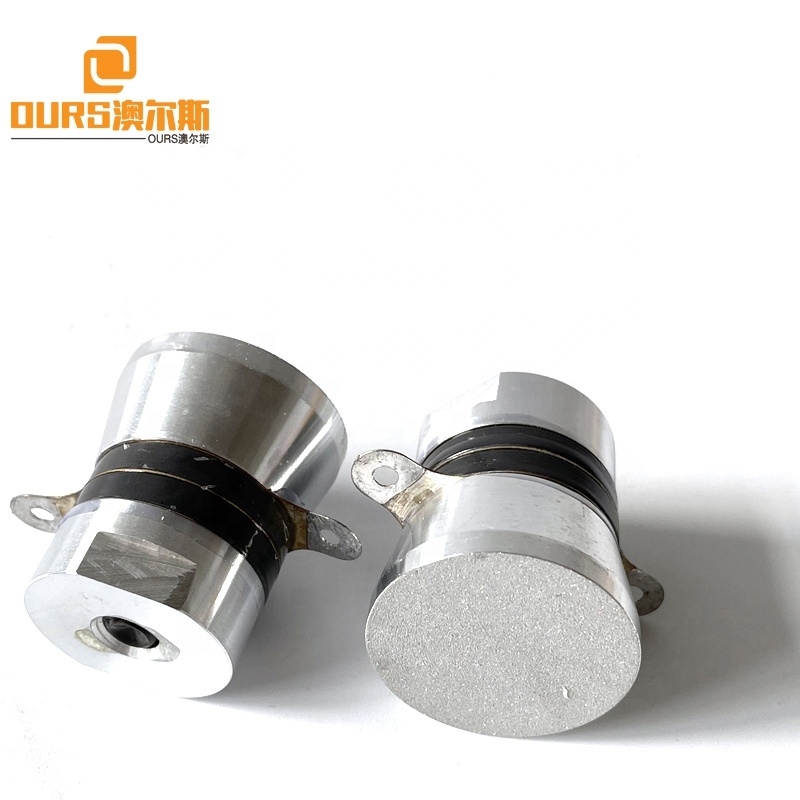

The high mechanical quality of ARS's piezo transducers ensures that these sandwich-type ultrasonic transducers offer high electro-acoustical efficiency and low heat generation. The mechanical connection of the piezoelectric elements assures a large amplitude output. ARS's standard ultrasonic cleaning transducers are available in two frequencies: 28 kHz, 40 kHz. ARS also offers a 50 kHz power transducer that can be used in a variety of applications, including as a fabric cleaner, nebulizer, atomizer, for ultrasonic mixing, or for cell disruption.

Cavitation occurs when the vibration of a transducer surface interfacing with a liquid (usually water, but possibly a water / organic solvent mixture in an ultrasonic cleaning application) is sufficient to create a partial vacuum that exceeds the vapor pressure of the liquid, and bubbles form at the vibrating surface. Cavitation is a desirable feature in ultrasonic cleaning or liquid vaporizing applications, but obviously must be avoided in signal transmission applications.

In ultrasonic cleaning applications, effects of the dimensions and configuration of the water tank, the water load, and the thickness of the bonding layer affixing the transducer to the water tank combine to slightly reduce the frequency of the transducer, and give rise to several additional resonances. Despite these negative factors, however, a well-designed transducer, incorporated in a well-designed circuit, will operate near its resonance frequency.

Ultrasonic Transducer classification:

A. piezoelectric chip classification: Black chip P4 series and yellow chip P8 series;

B. Frequency classification: low frequency series (17-23KHz), intermediate frequency series (25-28KHz), medium and high frequency series (33-60KHz) and high frequency series (68-200KHz);

C. Power classification: 30W series (including 35W), 50W series (including 60W), 100W series (including 80W) and other unconventional power;

D. shape classification: straight column and horn type

Advantages:

•Imported original piezoelectric ceramic wafer guarantee strong and steady output of ultrasonic power;

•High efficiency : high quality mechine, high electro-acoustic conversion efficiency at the resonant frequencies;

•Large amplitude : computer optimized structure, high vibration ratio , large amplitude front cover;

•High power: In the influence of pre-stressed screw, piezoelectric ceramic energy can achieve to the most;

•Heat-resistance: small resonant impedance, low heat, wide temperature range.
