20K-40K Single Frequency Ultrasonic Generator PCB/Power Supply 1000W For Driving Cleaning Transducer Warranty 1 Year With CE
1-9 Set
$202.00
≥ 10 Set
$180.00
- Item No.20201116e2268MOQ1 Set
Choice
Quantity:
If you have your own design, please contact us, there will have a professional customer service to communicate with you.
Don't have your files right now?No worries, Check out our art tips for more information.
If over 500pcs, mass production will start until pre-production sample has been approved.
Est. 7 days production

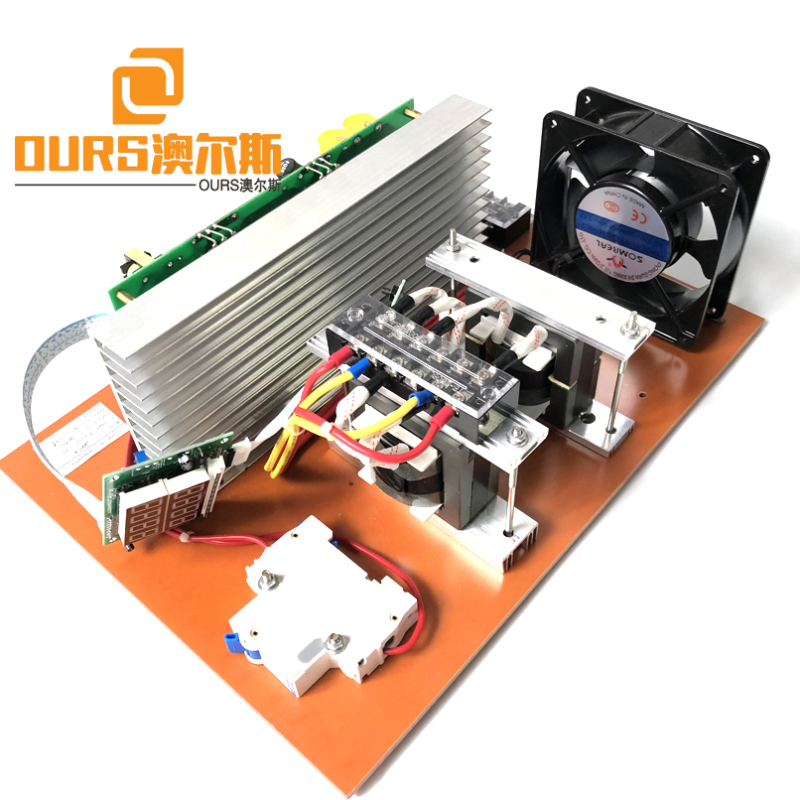

20K-40K Single Frequency Ultrasonic Generator PCB/Power Supply 1000W For Driving Cleaning Transducer Warranty 1 Year With CE
Ultrasonic generator PCB is the min parts of ultrasonic cleaning syste, which is for cleaning Electronic workshop, industrial and mining enterprises, laboratories, hospitals, glass shop, jewelry shop, mobile phone repair shop, family and so on.
Ultrasonic PCB Generator advantage:
1. The ultrasonic circuit board adopts advanced technologies such as its excitation circuit, frequency automatic tracking and frequency sweeping working mode under microcomputer control. Compared with the traditional control box, it has stable and reliable operation and continuously adjustable ultrasonic power, which can maximize the potential of the transducer.
2. The operating frequency of the ultrasonic circuit board is automatically tracked to make the output match better, the power is stronger and the efficiency is higher.
3. The unique frequency sweeping mode of the ultrasonic circuit board enables the cleaning liquid to form a small reflow under the action of the sweeping frequency, and timely remove the dirt stripped from the ultrasonic surface away from the surface of the workpiece, thereby achieving a faster and more thorough cleaning effect. Ultrasonic cleaning is more efficient.
Ultrasonic circuit board has excellent frequency control accuracy. The power drive adopts imported power module, wide tracking frequency, adaptive output load, high efficiency, excellent energy saving, small size, high power and high integration. The structure is reasonable, easy to ventilate and heat, has over-current and over-voltage protection functions, and has good continuous operation reliability. Adaptive various forms of transducers.
Type | Frequency(KHZ) | Power(W) | Dimension |
ARS-MBJ300 |
17,20,25,28,33,40,48,Frequency is adjustable
| 300W | 350×300×140mm
|
ARS-MBJ600 | 600W | 350×300×140mm | |
ARS-MBJ900 | 900W | 350×300×140mm | |
ARS-MBJ1000 | 1000W | 350×300×140mm | |
ARS-MBJ1200 | 1200W | 350×300×140mm | |
ARS-MBJ1300 | 1300W | 350×300×140mm | |
ARS-MBJ1500 | 1500W | 350×300×140mm | |
ARS-MBJ1800 | 1800W | 350×300×140mm | |
ARS-MBJ2000 | 2000W | 350×300×140mm | |
ARS-MBJ2400 | 2400W | 350×300×140mm | |
ARS-MBJ2500 | 2500W | 350×300×140mm | |
ARS-MBJ2600 | 2600W | 350×300×140mm | |
ARS-MBJ2800 | 2800W | 350×300×140mm | |
ARS-MBJ3000 | 3000W | 350×300×140mm | |
Ultrasonic PCB generator could to 3000W,welcome send the enquire 600W-3000W Ultrasonic PCB frequency adjustable,withdisplay board Above ultrasonic PCB generator 110V-120V or 220V-240V are available,contact with us during your order with detail request | |||
