2400W Hanging ultrasonic vibration plate cleaning machine precision parts degreasing ultrasonic factory direct
1-999 Set
$1,580.00
≥ 1000 Set
$1,380.00
Choice
Quantity:
If you have your own design, please contact us, there will have a professional customer service to communicate with you.
Don't have your files right now?No worries, Check out our art tips for more information.
If over 500pcs, mass production will start until pre-production sample has been approved.
Est. 7 days production

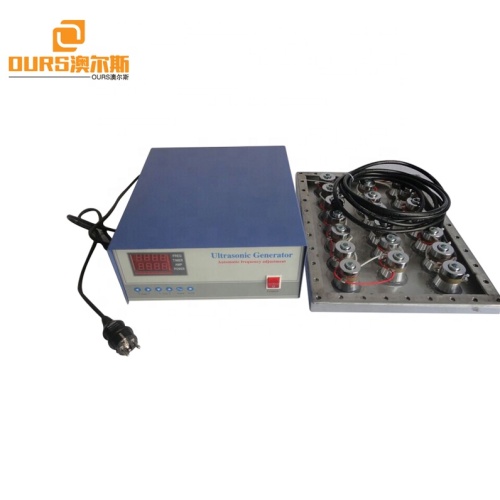

2400W Hanging ultrasonic vibration plate cleaning machine precision parts degreasing ultrasonic factory direct
Ultrasonic Immersible Transducer Pack also called the inputting type ultrasonic vibration plates, this product is suitable for cleaning electroplating parts before cleaning, horologe parts, hardware machinery parts, polyester filtering cores, semiconductor wafer, tools, lens, frames, jewellery, glass, utensils and other industries, wide application.
immersible ultrasonic transducers This series of products is suitable to cleaning work pieces of various industries;such as plating components cleaning before plating,electronic,hardware machinery parts,clock and watch parts,semiconductor sillcon chips,glass vessels,bijouterie,spectacle frame, etc.
It is widely used in the fields of ultrasonic cleaning, biochemistry, food, chemical and pharmaceutical industry. In biochemistry industry, the tubular transducer equipment can be used for emulsification, separation, homogenization, refining and catalyzing reaction and it can increase production capacity. The tubular transducer equipment plays an important role in the even stirring of homogenates in food processing. In the chemical industry, it is suitable for cleaning pipeline, tanks and kettles. The catalyzing effect of ultrasonic is quite obvious when the tubular transducer equipment used in the refinement of scavenge oil and palm oil to biodiesel, as the efficiency can be improved more than tenfold. Therefore, it will have expansive applications in the petro-chemical industry.
Type Description
A
Mounting to tank wall with threaded duct nipple and fastening bracket. Cable through the tank wall.
B
Mounting to tank wall with threaded duct nipple and fixing nipple. Cable through the tank wall.
C
Mounting to tank wall with hanging hooks. Rigid stainless steel tube for cable over the tank top.
D
Mounting to tank wall with hanging hooks. Flexible metal armoured 1 m hose for cable over the tank top.
E
Mounting to tank bottom. Rigid stainless steel tube for cable through the tank wall.
F
Mounting to tank bottom. Rigid stainless steel tube for cable over the tank top.
G
Mounting to tank bottom. Flexible metal armoured 0,5 m hose for cable through the tank wall.
H
Mounting to tank bottom. Flexible metal armoured 1,5 m hose for cable over the tank top.
X
Non-standard mounting
2400W Hanging ultrasonic vibration plate cleaning machine precision parts degreasing ultrasonic factory direct
Type | Diamention(mm) | Frequency (Khz) | Power(W) | Ultrasonic Transducer |
ARS-ZBH300W | 300*190*100 | 25,28,33,40,80,130 | 300 | 6 |
ARS-ZBH600W | 360*275*100 | 25,28,33,40,80,130 | 600 | 12 |
ARS-ZBH1000W | 450*350*100 | 25,28,33,40,80,130 | 1000 | 20 |
ARS-ZBH1200W | 470*380*100 | 25,28,33,40,80,130 | 1200 | 24 |
ARS-ZBH1500W | 520*450*100 | 25,28,33,40,80,130 | 1500 | 30 |
ARS-ZBH1800W | 560*450*100 | 25,28,33,40,80,130 | 1800 | 36 |
ARS-ZBH2000W | 650*450*100 | 25,28,33,40,80,130 | 2000 | 40 |
ARS-ZBH2400W | 740*520*100 | 25,28,33,40,80,130 | 2400 | 48 |
ARS-ZBH3000W | 820*540*100 | 25,28,33,40,80,130 | 3000 | 60 |
ARS-ZBH5000W | 1200*590*100 | 25,28,33,40,80,130 | 5000 | 100 |
Above are single frequency ultrasonic immersible transducer pack OEM Ultrasonic Immersible Transducer Pack(Size, Frequency,Power) | ||||
