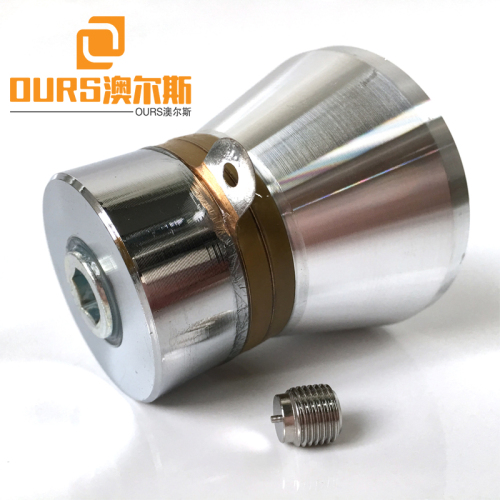

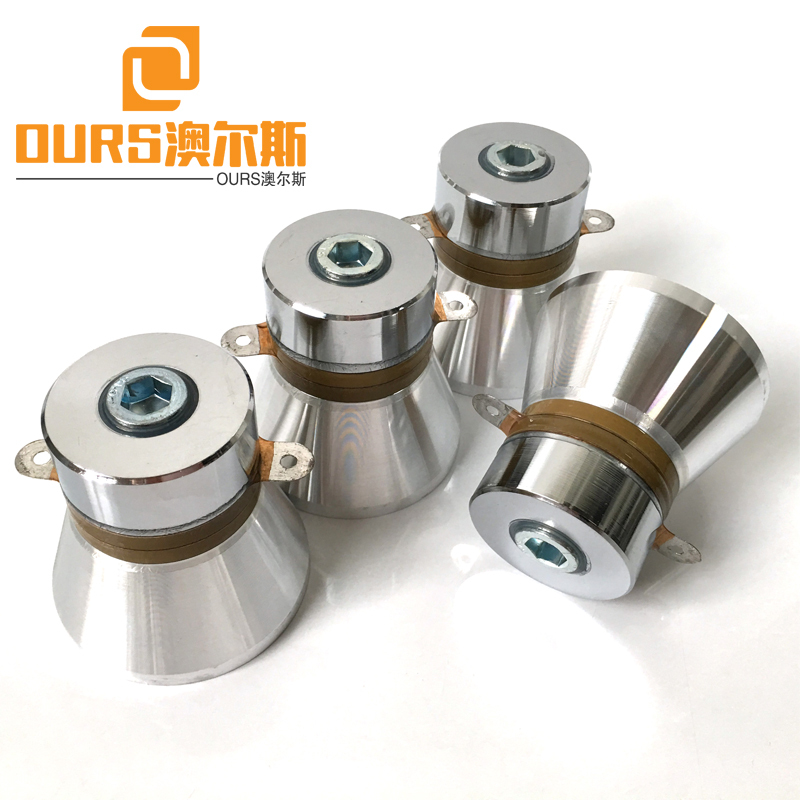

28KHZ Frequency Piezoelectric Ultrasonic Cleaning Sensor/100W Ultrasonic cleaning Transducer PZT-8

Message

$9.00

Have chosenThere are no options selected.

*Model Number
Start To Order

Add To Cart Successfully!

SEND INQUIRY
28KHZ Frequency Piezoelectric Ultrasonic Cleaning Sensor/100W Ultrasonic cleaning Transducer PZT-8
28KHZ Frequency Piezoelectric Ultrasonic Cleaning Sensor/100W Ultrasonic cleaning Transducer PZT-8
28KHZ Frequency Piezoelectric Ultrasonic Cleaning Sensor/100W Ultrasonic cleaning Transducer PZT-8
28KHZ Frequency Piezoelectric Ultrasonic Cleaning Sensor/100W Ultrasonic cleaning Transducer PZT-8
28KHZ Frequency Piezoelectric Ultrasonic Cleaning Sensor/100W Ultrasonic cleaning Transducer PZT-8
28KHZ Frequency Piezoelectric Ultrasonic Cleaning Sensor/100W Ultrasonic cleaning Transducer PZT-8
28KHZ Frequency Piezoelectric Ultrasonic Cleaning Sensor/100W Ultrasonic cleaning Transducer PZT-8

28KHZ Frequency Piezoelectric Ultrasonic Cleaning Sensor/100W Ultrasonic cleaning Transducer PZT-8

  • Item No.ARS-QXHNQ28100
    MOQ1 Piece
  • Size 20 x 15 x 15 cm
    Weight2 kg
Tag  wholesale

Available Options

Model Number
Add Request About This Product
Max file 5MB each
If lager file please send us email

Quantity:

From $9.008.50 / Piece
$9.00
You save $ -9.00
Trade Assuranceprotects your orders
On-time Dispatch Guarantee
On-time dispatch is guaranteed or you will be eligible to claim platform compensation.
Refund Policy
If the shipment is delayed or product quality differs from what are specified in the online order, you can claim for a refund.
Quick refund: If you can apply for a refund within two hours of making a payment, you will receive a refund immediately.

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

Quick Details
Frequency28KHZ
Place of Origin CN;GUA
Usage Vibration Sensor for ultrasonic Cleaning transducer
Brand Name OURS ULTRASONIC
customized Acceptable for ultrasonic Cleaning transducer
Model Number ARS-QXHNQ28100
Feature Long Life Low Cost for ultrasonic transducer
Product name ultrasonic transducer for ultrasonic Cleaning transducer
ConditionNew
Application:Washing
Brand Name: OURS ULTRASONIC
Type: ultrasonic transducer
Material Stainless Steel for ultrasonic Cleaning transducer
Applicable Industries Hotels

Packaging & Delivery

Selling Units:
Piece
Single package size:
20 x 15 x 15 cm
Single gross weight:
2 kg

28KHZ Frequency Piezoelectric Ultrasonic Cleaning Sensor/100W Ultrasonic cleaning Transducer PZT-8


The mechanism of ultrasonic cleaning is to make use of the physical effects such as cavitation, radiation pressure and sound flow in the cleaning liquid. It can exfoliate the machinery produced by the dirt on the cleaning parts, and can also promote the chemical reaction between the cleaning liquid and the dirt, so as to achieve the purpose of cleaning the object. The frequency of the ultrasonic cleaning machine can be selected by 10~500 kHz according to the size and purpose of the cleaning material, generally more than 20~50 kHz. With the increase of the frequency of ultrasonic transducer, Langerhans oscillator, longitudinal oscillator and thickness oscillator can be used. In the miniaturization aspect, radial vibration and flexural vibration are also adopted. Ultrasonic cleaning has become more and more widely used in various industries, agriculture, household equipment, electronics, automobile, rubber, printing, aircraft, food, hospital and medical research.



The transducer uses different piezoelectric materials to explain that:
The black chip is P4 series, which is a medium power emitting material with dual transmitting and receiving characteristics.
With low dielectric loss and high mechanical quality factor, it is mainly used in ultrasonic cleaning, ultrasonic atomization and so on.
The Yellow chip is P8 series, which is a high-power emission material with high mechanical quality factor.
Good stability, very low dielectric loss, especially suitable for making high-power ultrasonic transducers. Widely used in
Ultrasonic welding, ultrasonic emulsification, ultrasonic polishing, ultrasonic cleaning and so on.





Main Features:

  • High Q value.
  • Large amplitude.
  • High conversion frequency, low heat.
  • Output is stable.
  • Strict quality control.



1.High efficiency : high quality mechine, high electro-acoustic conversion efficiency at the resonant frequencies.
2.Large amplitude : computer optimized structure, high vibration ratio , large amplitude front cover.
3.High power: In the influence of pre-stressed screw, piezoelectric ceramic energy can achieve to the most.
4.Heat-resistance: small resonant impedance, wide temperature range.



Specification List
ModelFrequency  Capacitance   Size Power
(KHz)(pF) Radiation head*Height (mm)(W)
ARS-4QXHNQ-17K60W17±0.54800±10%78*9060w
ARS-4QXHNQ-20K50W20±0.54000±10%57*9450w
ARS-8QXHNQ-20K70W20±0.53250±10%78*9470w
ARS-4QXHNQ-20K100W20±0.57600±10%67*92100w
ARS-8QXHNQ-20K100W20±0.54500±10%67*92100w
ARS-8QXHNQ-20K120W20±0.54650±10%79*94120w
ARS-4QXHNQ-25K60W25±0.84800±10%59*8060w
ARS-4QXHNQ-25K100W25±0.57600±10%67*76100w
ARS-4QXHNQ-28K50WN28 ±0.54000±10%45*7950w
ARS-4QXHNQ-28K60W                28±0.54800±10%59*6860w
ARS-4QXHNQ-28K100W28±0.57600±10%67*68100w
ARS-8QXHNQ-28K100W28±0.55800±10%67*68100w
ARS-4QXHNQ-28K120W28±0.59600±10%67*68120w
ARS-8QXHNQ-28K120W28±0.56500±10%67*68120w
