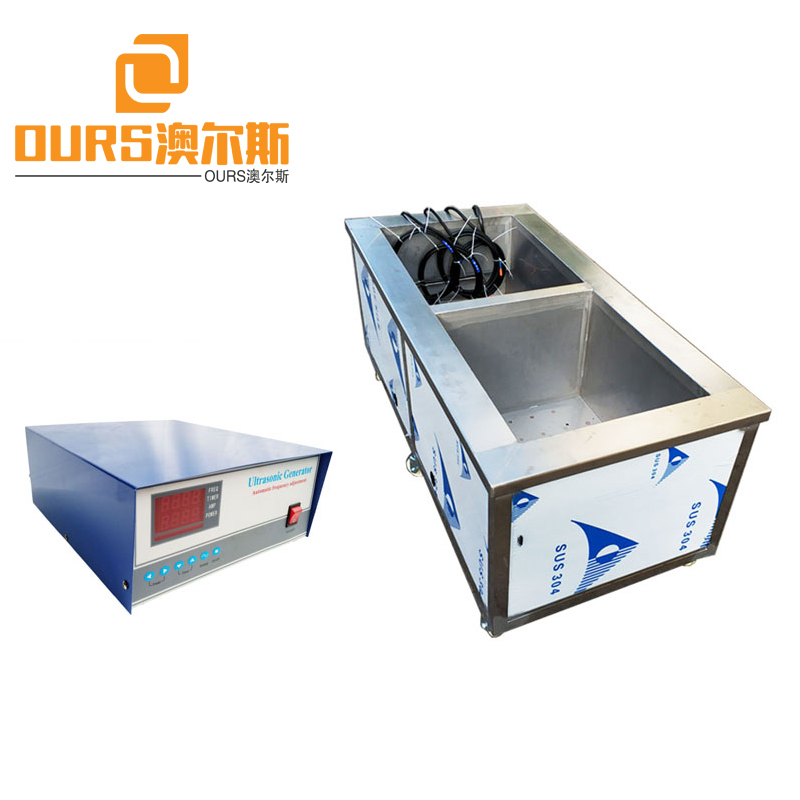

28KHZ Heated Ultrasonic Cleaner 50 Gallon Cleaning Tank For Cleaning Oil Degreasing Equipment

The customized single slot small ultrasonic cleaning equipment is made of stainless steel structure, and is fully in line with industrial standard industrial ultrasonic cleaning machine. The thickening and high quality stainless steel cleaning tank, the latest perfect anticorrosive design, has excellent corrosion resistance and can be applied to all kinds of harsh working environments. Integrated fuselage design, built-in ultrasonic generator, analog circuit and digital circuit combined control technology, make the speed machine better performance, easy to use, easy to operate, more humanized operation, is a very ideal large-scale industrial ultrasonic cleaning machine.

Product features:
The single slot ultrasonic cleaning machine is composed of two parts of ultrasonic generator and cleaning tank. The generator adopts imported high-power power supply module, which has stable performance. It can change the size of the cleaning tank and add heating function according to the requirements of the customer.
Scope of application:
This machine is suitable for cleaning certain batches of workpieces. It is suitable for cleaning, machinery, medical equipment, pharmaceutical, electronic, chemical, aerospace, textile and chemical fiber, automobile, optics, glasses, hardware and other industries.

The tank body is made of imported stainless steel, is acid and alkali resistant, and has a beautiful appearance.
Using imported high-quality high-Q transducer and unique ultrasonic generator, the ultrasonic output is strong and powerful.
Adopting the adhesive imported from West Germany and the unique bonding process to ensure that the transducer can work for a long time at 100 water temperature and is durable.
Equipped with automatic temperature control heating device, temperature control range: normal temperature -100 ℃.
The ultrasonic generator and the cylinder are integrated,
Easy to use and maintain.
The ultrasonic generator adopts the current internationally leading other-excited oscillation circuit structure, which increases the output power by more than 15% compared with the traditional self-excited oscillation circuit structure, which can maximize the potential of the transducer. Working voltage AC220±10V. It has protection measures such as overvoltage, overcurrent and output short circuit. It has the functions of frequency fine-tuning and frequency automatic tracking, which can achieve good results under different working conditions. The cleaning liquid is driven to form a fine backflow, so that the dirt on the workpiece is quickly removed from the surface of the workpiece while being ultrasonically peeled, and the cleaning efficiency is improved. With the function of stepless power adjustment, the output power can be adjusted continuously from 10% to 100% to meet the requirements of various cleaning objects.
Product Features Function
Process flow: electrolytic cleaning → washing with city water → anti-rust
Main components: ultrasonic generation system, electrolysis circuit system, circulating filtration system
Working principle: Use the mold or the workpiece to be cleaned as the cathode (just put in the cleaning frame), and use the standard electrode as the anode. The use of electrolyzed water produces oxygen at the anode and hydrogen at the cathode. During the operation, a large amount of hydrogen is generated on the surface of the workpiece, which causes the dirt to be quickly decomposed and peeled off from the surface of the workpiece; at the same time, the cavitation effect of ultrasonic waves is used to cause countless small bubbles to collide with the object. Impact blasting the dirt on the workpiece to automatically peel off the dirt.
At the same time, the special washing liquid 102C is used to decompose the dirt rapidly through a sufficient chemical reaction. In this way, even the difficult-to-clean parts, such as the grooves, grooves, corners, holes, holes, bites and other complex parts inside the mold, will be cleaned, and the mold will show a brilliant metallic luster from the inside to the outside.
After cleaning the molds, rinse them with water, and then soak them with special water-based rust inhibitor for steel. This anti-rust agent can quickly remove the moisture on the surface of the mold and form protection on the surface of the mold. It can be stored or reprocessed after air drying. Re-production will not produce carbides attached to the mold.
Scope of application: plastic molds, hardware molds, optical mirror molds, rubber molds, medical equipment, auto parts molds, etc.
Note: Various non-standard model sizes can be customized according to customer requirements
