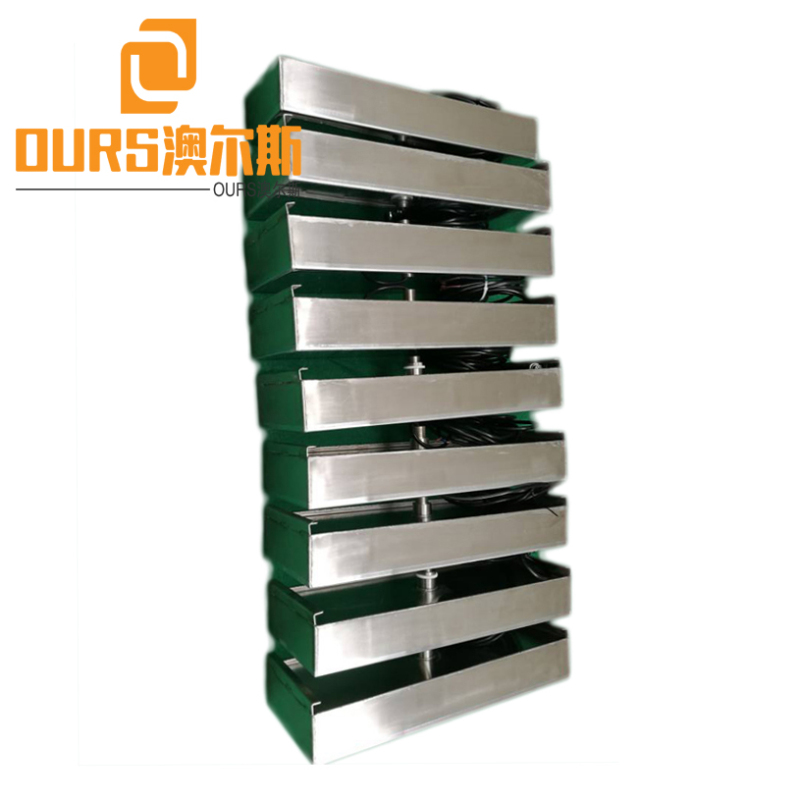

28KHZ High-power Immersion Ultrasonic Transducer Pack and Generator For Cleaning Eequipment Metal Parts

Ultrasonic Immersible Transducer Pack also called the inputting type ultrasonic vibration plates, this product is suitable for cleaning electroplating parts before cleaning, horologe parts, hardware machinery parts, polyester filtering cores, semiconductor wafer, tools, lens, frames, jewellery, glass, utensils and other industries, wide application.

Product introduction:
When the ordinary trough cleaning machine is not applicable in some specific working occasions, submerged ultrasonic vibration plate can be selected. The submerged vibrating plate can be designed into different shapes and sizes according to customer requirements. It is welded with the best stainless steel, which is resistant to acid and alkali, corrosion, easy to disassemble and easy to maintain.
Some models in this series of products are designated by many well-known pharmaceutical machine manufacturers. They have been put into use in the production lines of nearly a thousand pharmaceutical factories across the country, such as large infusion, oral liquid, water injection, powder injection, and syrup, and have been widely praised by users. !
In the extraction of traditional Chinese medicine, the ultrasonic circulation extraction technology has been widely used. Ultrasonic extraction uses the cavitation effect of ultrasonic waves to increase the penetration of the solvent, increase the dissolution rate and the number of dissolution of the drug, thereby increasing the diffusion of material components, shortening the extraction time, and accelerating the extraction process.
This series of products can be matched with various cleaning lines, or the existing cleaning pool can be ultrasonically modified. It is widely used in automobile, machinery, electronics, winemaking, food, chemical, pharmaceutical, semiconductor manufacturing, magnetic materials, molds, electroplating, multi-arc ion plating, oil pump nozzles and many other industries. Example: The cleaning of large rubber molds such as tires, V-belts, timing belts, etc., can use an ultrasonic vibration box, combined with large stainless steel heating and washing.

Specializing in the production of input type side shock type bottom vibration type ultrasonic vibration plate / one-year warranty / maintenance of various types of vibration plate series input type ultrasonic vibration plate (vibration plate) is glued to a fully sealed stainless steel vibration box by an ultrasonic transducer and ultrasonic generation It consists of two parts. When the trough-type ultrasonic cleaning equipment is not suitable for specific work needs, the ultrasonic vibration plate is not only suitable for self-built cleaning tanks or the existing cleaning tank with ultrasonic cleaning function, but also suitable for the repair and replacement of the ultrasonic vibration plate of existing ultrasonic cleaning equipment, and suitable for large-scale ultrasonic cleaning The machine system is equipped with an ultrasonic vibration plate, and it is also suitable for ultrasonic extraction equipment and ultrasonic sewage treatment equipment. The ultrasonic vibration plate can be flexibly installed in different parts of the cleaning tank (top, side, bottom) to achieve different cleaning effects. Ultrasonic vibration plates (vibration plates) are generally tailor-made according to user needs and actual working conditions.

1. Immersible ultrasonic transducer unit can be installed in the tank by three ways: side, top and bottom. 1.The ultrasonic cleaning device is composed of the immersible ultrasonic transducer and generator. If ultrasonic cleaning machine of the standard model cannot be applied to a specific working environment, you can also make immersible ultrasonic transducer pack according to customizing special specifications. The working positions can be installed to fluid tank top side, bottom side or both side to achieve different cleaning effects..
2. It is of an all stainless steel structure, acid- and alkali-resistant, beautiful and durable. Strong acid- and strong alkali-resistant titanium plate material is used to reinforce and tighten welding..
3.It is welded with thick 316L stainless steel, which has good sealing performance..
4.The ultrasonic generator and immersible transducer are connected with separated high frequency wires, which is convenient for repair and maintenance..
5. It can work continuously for 24 hours, which is suitable for mass production.

Type Description
A.Mounting to tank wall with threaded duct nipple and fastening bracket. Cable through the tank wall.

B.Mounting to tank wall with threaded duct nipple and fixing nipple. Cable through the tank wall.

C.Mounting to tank wall with hanging hooks. Rigid stainless steel tube for cable over the tank top.

D.Mounting to tank wall with hanging hooks. Flexible metal armoured 1 m hose for cable over the tank top.

E.Mounting to tank bottom. Rigid stainless steel tube for cable through the tank wall.

F.Mounting to tank bottom. Rigid stainless steel tube for cable over the tank top.

G.Mounting to tank bottom. Flexible metal armoured 0,5 m hose for cable through the tank wall.

H. Mounting to tank bottom. Flexible metal armoured 1,5 m hose for cable over the tank top.

X.Non-standard mounting
