28khz hand held ultrasonic plastic welder for ultrasonic plastic spot welder
1-9 Set
$800.00
≥ 10 Set
$760.00
- Item No.20201116e2e89MOQ1 Set
- Product size48 x 46 x 52 cmProduct weight15 kg
Choice
Quantity:
Please select Amazon site before going to buy at Amazon
BUY AT AMAZON
If you have your own design, please contact us, there will have a professional customer service to communicate with you.
Don't have your files right now?No worries, Check out our art tips for more information.
If over 500pcs, mass production will start until pre-production sample has been approved.
Est. 7 days production
28khz hand held ultrasonic plastic welder for ultrasonic plastic spot welder

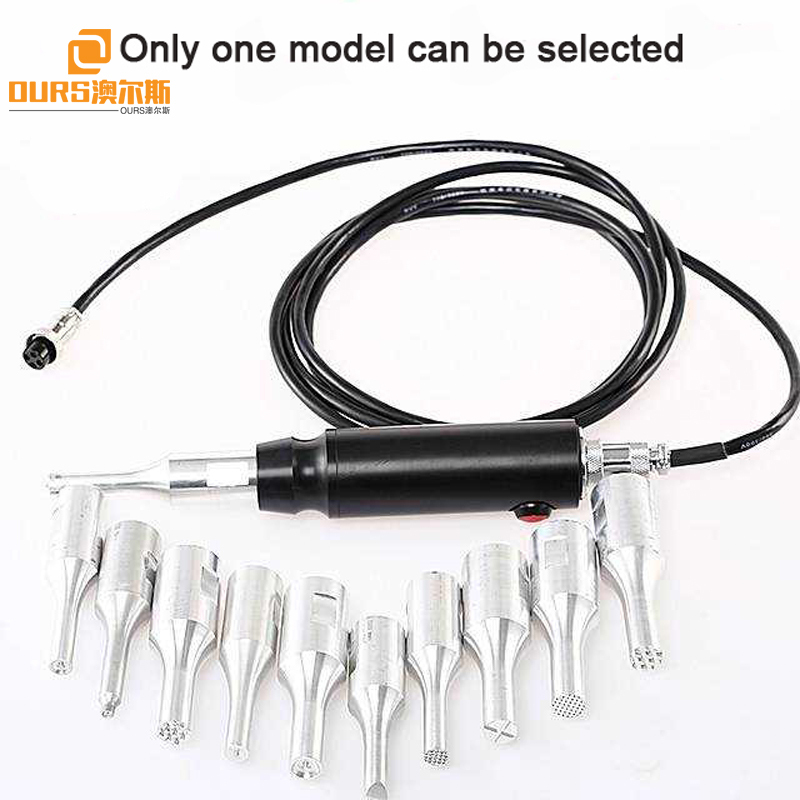

The hand-held sonotrode for ultrasonic welding (bonding) is light and handy, suitable for left- or right-handed operation. It is equipped with simple air-cooling system, which prevents the device from heating and the palm from sweating and this way facilitates the control and precise operation.

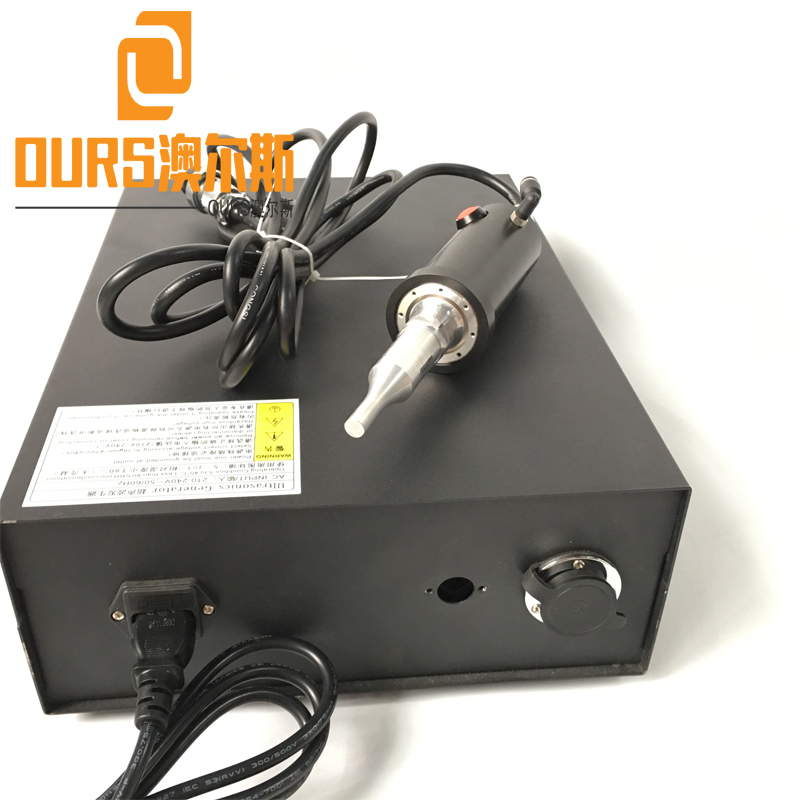

The ultrasonic hand-held sonotrode is equipped with an ultrasonic generator type. The horn and the handle are made of high—quality materials, that ensure long life and smooth operation.
Basic characteristics:
Speed of welding: approximately 5 seconds, depending on the material and the required results.
The ultrasonic technology ensures strong and high-quality welding between the assembled parts without using additional materials.
Product Specifications :
1 - hand welder can be applied to a single point welding, screw implants , riveting .
2 - Portable design , save space , easy to operate.
3 - can be used independently , but also can be used with automatic peripheral equipment .
4 - There are lessons device models , especially for rhinestones / PC drill mount in haute couture processing .
Ultrasonicspotwelding machine
Type | Power(W) | Frequency (KHz) |
ARS-DHJ-300 | 300W | 15khz |
ARS-DHJ-300 | 300W | 20khz |
ARS-DHJ-300 | 300W | 28khz |
ARS-DHJ-300 | 300W | 35KHz |
ARS-DHJ-300 | 300W | 40khz |
ARS-DHJ-500 | 500W | 15khz |
ARS-DHJ-500 | 500W | 20khz |
ARS-DHJ-500 | 500W | 28khz |
ARS-DHJ-500 | 500W | 35KHz |
ARS-DHJ-500 | 500W | 40khz |
ARS-DHJ-800 | 800W | 15khz |
ARS-DHJ-800 | 800W | 20khz |
ARS-DHJ-800 | 800W | 28khz |
ARS-DHJ-800 | 800W | 35KHz |
ARS-DHJ-800 | 800W | 40khz |
ARS-DHJ-900 | 900W | 15KHz |
ARS-DHJ-900 | 900W | 20khz |
ARS-DHJ-1000 | 1000W | 15KHz |
ARS-DHJ-1000 | 1000W | 20khz |
