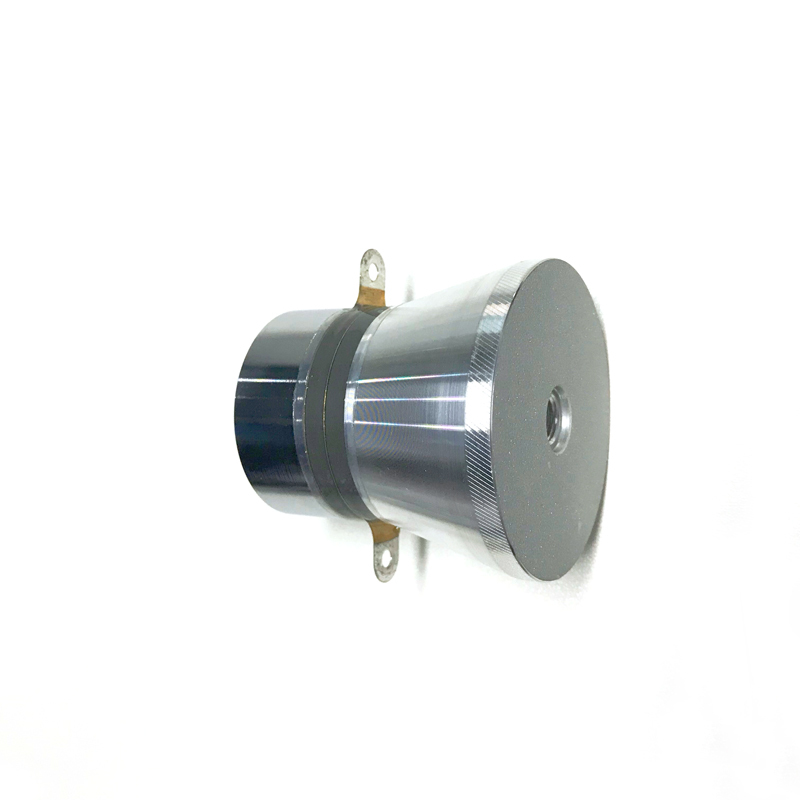

28khz high power ultrasonic cleaning transducer for medical equipment industrial cleaning machine 100W transducer

Message

$10.00

Have chosenThere are no options selected.

*Model Number
Start To Order

Add To Cart Successfully!

SEND INQUIRY
28khz high power ultrasonic cleaning transducer for medical equipment industrial cleaning machine 100W transducer
28khz high power ultrasonic cleaning transducer for medical equipment industrial cleaning machine 100W transducer
28khz high power ultrasonic cleaning transducer for medical equipment industrial cleaning machine 100W transducer
28khz high power ultrasonic cleaning transducer for medical equipment industrial cleaning machine 100W transducer
28khz high power ultrasonic cleaning transducer for medical equipment industrial cleaning machine 100W transducer
28khz high power ultrasonic cleaning transducer for medical equipment industrial cleaning machine 100W transducer
28khz high power ultrasonic cleaning transducer for medical equipment industrial cleaning machine 100W transducer

28khz high power ultrasonic cleaning transducer for medical equipment industrial cleaning machine 100W transducer

  • Item No.202011044bf33
    MOQ1 Piece
Tag  sourcing

Available Options

Model Number
Add Request About This Product
Max file 5MB each
If lager file please send us email

Quantity:

From $10.007.00 / Piece
$10.00
You save $ -10.00
Trade Assuranceprotects your orders
On-time Dispatch Guarantee
On-time dispatch is guaranteed or you will be eligible to claim platform compensation.
Refund Policy
If the shipment is delayed or product quality differs from what are specified in the online order, you can claim for a refund.
Quick refund: If you can apply for a refund within two hours of making a payment, you will receive a refund immediately.

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

Quick Details
Frequency28khz
Place of Origin CN;GUA
Type 28khz high power ultrasonic cleaning transducer
Usage Ultrasonic cleaner driver Ultrasonic Cleaning Transducer
Application Industry Ultrasonic Cleaning Transducer
Brand Name OURSULTRASONIC
Model name ARS-QXHNQ28100 PZT-4
Feature Long Life Low Cost
ConditionNew
Packing Carton or other required package Ultrasonic Cleaning Transducer
Length 66mm 28khz high power ultrasonic cleaning transducer
Weight 624g Ultrasonic Cleaning Transducer
Power100w

Packaging & Delivery

Selling Units:
Piece
Lead Time:
Quantity(Piece)1 - 3>3
Est. Time(days)4To be negotiated

28khz high power ultrasonic cleaning transducer for medical equipment industrial cleaning machine 100W transducer


Water Treatment 28kHz/100W ultrasonic antifouling

Ultrasonic Cleaning Transducer

The mechanism of ultrasonic cleaning is to make use of the physical effects such as cavitation, radiation pressure and sound flow in the cleaning liquid. It can exfoliate the machinery produced by the dirt on the cleaning parts, and can also promote the chemical reaction between the cleaning liquid and the dirt, so as to achieve the purpose of cleaning the object. The frequency of the ultrasonic cleaning machine can be selected by 10~500 kHz according to the size and purpose of the cleaning material, generally more than 20~50 kHz. With the increase of the frequency of ultrasonic transducer, Langerhans oscillator, longitudinal oscillator and thickness oscillator can be used. In the miniaturization aspect, radial vibration and flexural vibration are also adopted. Ultrasonic cleaning has become more and more widely used in various industries, agriculture, household equipment, electronics, automobile, rubber, printing, aircraft, food, hospital and medical research.

The transducer uses different piezoelectric materials to explain that:
The black chip is P4 series, which is a medium power emitting material with dual transmitting and receiving characteristics.
With low dielectric loss and high mechanical quality factor, it is mainly used in ultrasonic cleaning, ultrasonic atomization and so on.
The Yellow chip is P8 series, which is a high-power emission material with high mechanical quality factor.
Good stability, very low dielectric loss, especially suitable for making high-power ultrasonic transducers. Widely used in
Ultrasonic welding, ultrasonic emulsification, ultrasonic polishing, ultrasonic cleaning and so on.

Main Features:

  • High Q value.
  • Large amplitude.
  • High conversion frequency, low heat.
  • Output is stable.
  • Strict quality control.

Type

Length(mm)

Weight(g)

Frequency(KHz)

Resonance Impedance
(Ω)

Static Capacity
(pF)±10%

Input Power(W)

ARS-QXHNQ20100
PZT-8

94

900

20

10-20

5200

100

ARS-QXHNQ25100
PZT-4

77

710

25

10-20

6600

100

ARS-QXHNQ28100
PZT-8

66

625

28

10-20

5200

100

ARS-QXHNQ28100
PZT-4

66

624

28

10-20

6600

100

ARS-QXHNQ30100
PZT-8

61

555

30

10-20

5200

100

ARS-QXHNQ2560
PZT-4

77

530

25

10-20

5400

60

ARS-QXHNQ2860
PZT-8

68

470

28

10-20

3800

60

ARS-QXHNQ2850
PZT-4

82

425

28

10-20

4100

50

ARS-QXHNQ3360
PZT-8

58

420

33

10-20

3800

60

ARS-QXHNQ4060
PZT-8

55

300

40

10-20

3800

60

ARS-QXHNQ4060
PZT-4

56

310

40

10-20

5400

60

ARS-QXHNQ4050-1
PZT-4

57

300

40

10-20

4100

50

.jpg
