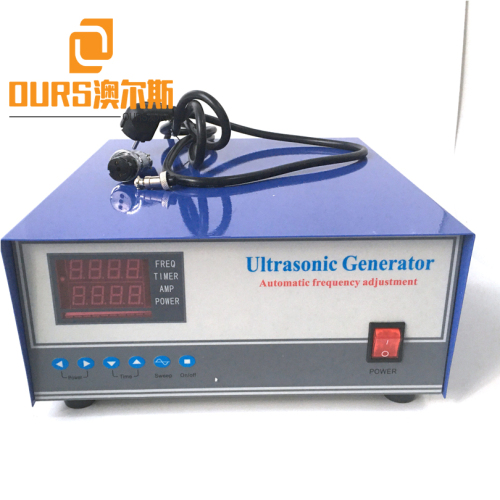

80KHZ High Frequency 1200W Ultrasonic Electrical Generator Of Cleaning Machine

Double Frequenies Ultrasonic Generator with multi-functional is specialized in ultrasonic cleaning system.

With more than 10 years research and application experience, we explored this microprocessor controlled, newly designed generator specially for ultrasonic cleaning.

The principle of the ultrasonic power supply is to first generate a signal of a specific frequency by a signal generator. This signal can be a sinusoidal signal or a pulse signal. This specific frequency is the frequency of the transducer, and is generally applied to the ultrasonic frequency in the ultrasonic device. It is 20KHz, 25KHz, 28KHz, 33KHz, 40KHz, 60KHz; 100KHz or more is not yet used in large quantities. However, with the continuous development of precision cleaning. I believe that the use of the face will gradually expand.

The form of the audio longitudinal wave is radiated in the cleaning fluid. Due to the alternating positive and negative pressures of super-audio longitudinal wave propagation, numerous micro-pressures of more than 1000 atmospheres are generated.
The small bubbles are blasted at any time to form a fine local high-pressure bombardment on the surface of the cleaning object, so that the dirt on the surface of the object and the gap is rapidly peeled off. This is super

The control box adopts advanced techniques, like separate-excited circuit, controlled by microcomputer, frequency automatic tracking and frequency sweeping, etc. Compared with traditional control box, it has better performances of stable and reliable operation and constantly adjustable ultrasonic frequency, which can develop the potential capacity of transducer in maximum. The automatic tracking of operating frequency can optimize output matching, strengthen power and raise efficiency. With the unique frequency-sweeping operating pattern, the cleaning solution can form a fine stream of refluence, which can time wash off the dirty uncovered by ultrasonic wave from the surface of working pieces and thus reach faster and thorough cleaning effect and raise the efficiency of ultrasonic cleaning. At the same time, it has perfect protective capacity: over temperature protection and overcurrent protection for more reliable operation; 4-bit timer for more accurate time control to second. With digital power adjustment, it can meet different cleaning demands. It permits optional alteration at working state, so the operation is freer. The complete appliance adopts building block design. With computer fault location and display system, its operation and maintenance are more convenient. Protected by rust proof and isolated structure, this generator can work under rigid circumstances.

The ultrasonic generator produced by the company has the characteristics of compact structure, convenient installation, simple operation and high cost performance. The ultrasonic generator can perform ultrasonic driving work automatically, quickly, accurately and continuously.
The standard ultrasonic generator is an indispensable part of the ultrasonic cleaning machine. The quality of the ultrasonic generator directly determines the quality of the ultrasonic cleaning machine.
The full range of digital standard ultrasonic generators is a high-performance ultrasonic power supply product independently developed by our company based on foreign advanced technology. The long-term use certificate proves that the ultrasonic generator can be connected to a single cleaning tank, a vibration plate or a large cleaning system. Provides fast, uniform and high quality cleaning results.
Standard ultrasonic generators are more efficient, stable, and easy to operate and maintain.
Leading technology
1. Digital control technology, perfect circuit design and stable power output.
2, excellent frequency control technology, high output efficiency and stability. Even if the impedance changes due to changes in load such as liquid temperature, depth, type, cleaning material, and negative pressure state, even if the voltage of the power source fluctuates, stable power can be supplied.
3. Automatic wide-band scanning, which can select different frequency bands to eliminate standing waves, improve ultrasonic energy distribution, eliminate cleaning blind spots, and have unique and unique functions such as frequency adjustment and frequency compensation.
safety protection

which is controlled by single chip technology.in order to meet the special needs.output two different frequency ultrasonic source through only one output interface in accordance with customer’s requirement.

Environment temperature: 0-40C°

Relative humidity: 40%--90%

Time control: 0—59 minutes 59 seconds

Range of power control: 0-100%   digital control and adjustment of 16 grades

Internal overtemperature protection: 65 C°

Outer size:  L x W x H = 300 x 360 x 150

Feature:high cleaning efficiency, high cleaning speed, safe

Solvent:water-based cleaner , purity water, etc.

Function:Dirt Cleaning, Degreasing, Burnishing, Descaling, Stripping

Used Cleaning Process:Ultrasonic Cleaning -- Ultrasonic rinsing

Industry Used:electronic, optics,medical,photovoltaic,labware, lens

80KHZ High Frequency 1200W Ultrasonic Electrical Generator Of Cleaning Machine
