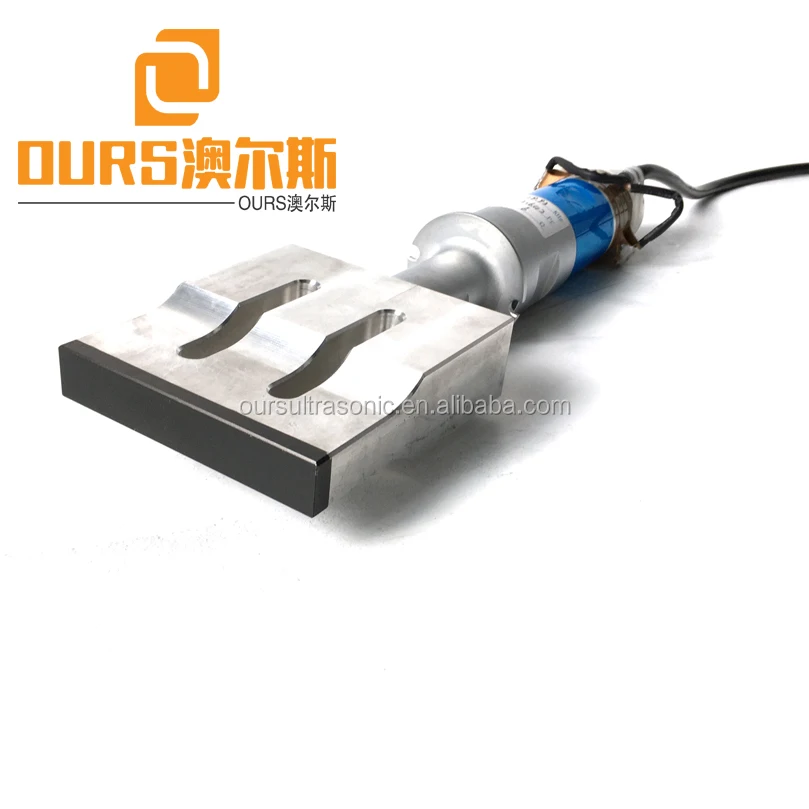

Best-selling worldwide 20KHZ 2000W Ultrasonic Welding and Transducer For For Nonwoven Facemask
1-49 Set
$1,480.00
≥ 50 Set
$1,400.00
- Item No.20201104e210eMOQ1 Set
- Product size52 x 48 x 30 mProduct weight18 kg
Choice
Quantity:
If you have your own design, please contact us, there will have a professional customer service to communicate with you.
Don't have your files right now?No worries, Check out our art tips for more information.
If over 500pcs, mass production will start until pre-production sample has been approved.
Est. 7 days production
Best-selling worldwide 20KHZ 2000W Ultrasonic Welding and Transducer For For Nonwoven Facemask

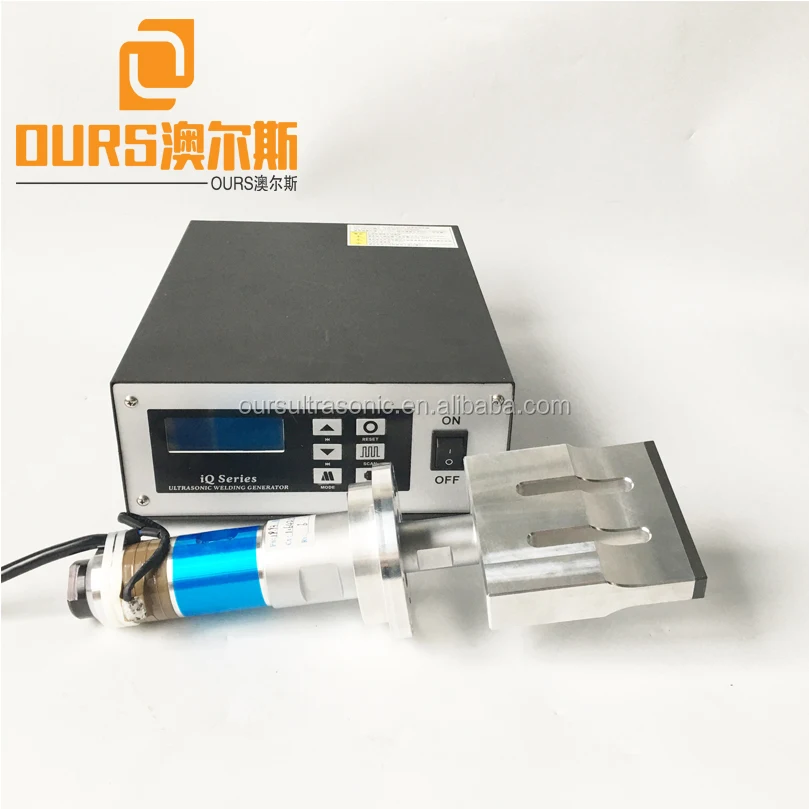

Performance of ultrasonic system for mask machine:
1. Intelligent ultrasonic generator, digital circuit design, automatic scanning frequency, no manual adjustment required;
2. LCD display of frequency, power and current, ultrasonic amplitude adjustable from 50% to 100%;
3. The ultrasonic transducer is assembled by Japanese original piezoelectric ceramic chip, which has strong and reliable power.
4. The system is equipped with multiple detection and protection circuits. When the output cable is open, the transducer and the mold exceed the frequency range, the overload protection circuit automatically cuts off the ultrasonic power and buzzes the alarm;
Features of special ultrasonic system for mask machine:
The ultrasonic generator can monitor the working frequency and power of high-power ultrasonic systems.
Able to adjust various parameters in real time according to different requirements of users: such as power, amplitude, running time, etc.
Frequency fine-tuning: Adjust the frequency so that the ultrasonic transducer always works in a good state, the efficiency is large, and the adjustment range is 2%.
Automatic follow-up: Once the device has completed its initial setup, it can continue to operate without the need to adjust the generator.
ultrasonic manner to complete the finished earband mask. Only one operator needs to place the mask body on the conveyor belt fixture, and the rest of the subsequent actions until the finished product is completed The machine operates automatically, and the output of this machine is higher than that of ordinary earband machines.
Plane mask machine, automatic mask spot welding machine, ultrasonic mask machine, plane mask spot welder, disposable mask machine, non-woven mask machine, ear band mask machine, N95 mask machine, FFP2 mask machine and other mechanical equipment are required It is equipped with an ultrasonic generator. This supporting equipment is aliased as an electric box and an ultrasonic control box.
The main functions of the ultrasonic generator:
Used for welding and welding of non-woven masks, welding of front-end breathing valve of cup mask, welding of nose bridge line of cup-shaped mask, spot welding of ultrasonic ear band, welding of cup-shaped ear band, plastic shell and plastic parts The generator is versatile.
Type | Power(W) | Frequency (KHz) |
ARS-HJDY-1500W15 | 1500W | 15KHZ |
ARS-HJDY-1500W20 | 1500W | 20KHZ |
ARS-HJDY-1800W15 | 1800W | 15KHZ |
ARS-HJDY-1800W20 | 1800W | 20KHZ |
ARS-HJDY-2000W15 | 2000W | 15KHZ |
ARS-HJDY-2600W15 | 2600W | 15KHZ |
ARS-HJDY-2600W20 | 2600W | 20KHZ |
ARS-HJDY-3200W15 | 3200W | 15KHZ |
ARS-HJDY-4200W15 | 4200W | 15KHZ |
ARS-HJDY-1200W28 | 1200W | 28KHZ |
ARS-HJDY-1000W35 | 1000W | 35KHZ |
ARS-HJDY-800W40 | 800W | 40KHZ |
Best-selling worldwide 20KHZ 2000W Ultrasonic Welding and Transducer For For Nonwoven Facemask
