Biodiesel Production System Ultrasonic Tubular Reactor Transducer And Ultrasonic Cleaning Generator 1000W 20KHZ

Message

$2,600.00

Have chosenThere are no options selected.

* Model Number
Start To Order

Add To Cart Successfully!

SEND INQUIRY
Biodiesel Production System Ultrasonic Tubular Reactor Transducer And Ultrasonic Cleaning Generator 1000W 20KHZ

Biodiesel Production System Ultrasonic Tubular Reactor Transducer And Ultrasonic Cleaning Generator 1000W 20KHZ

  • Item No. 20201104ed2c0
    MOQ 1 Set
Tag   sourcing

Available Options

Model Number
Add Request About This Product
Max file 5MB each
If lager file please send us email

Quantity:

From $ 2600.002200.00  / Set
$ 2,600.00
You save  $  -2,600.00
Trade Assurance protects your orders
On-time Dispatch Guarantee
On-time dispatch is guaranteed or you will be eligible to claim platform compensation.
Refund Policy
If the shipment is delayed or product quality differs from what are specified in the online order, you can claim for a refund.
Quick refund: If you can apply for a refund within two hours of making a payment, you will receive a refund immediately.

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production


OURS Sonics manufactures the most technologically advanced and reliable ultrasonic processors in the industry for applications such as: dispersion of nanoparticles, nanotubes and Graphene; cell lysing and cell disruption; sample prep; ChIP assay; homogenization; extraction; atomization; and more.

Ultrasonic liquid processing is a highly valuable methodology in the laboratory. High intensity (20 kHz range) ultrasonic generation is sufficiently powerful to achieve useful liquid processing in a wide variety of applications. Everything from lyses of E. coli cells to spot cleaning of dirty lab ware can be performed easily, quickly and reproducibly.

In liquid, the rapid (i.e., 20 KHz) vibration of the horn probe tip causes cavitations, the formation and violent collapse of microscopic bubbles.
The collapse of the thousands of cavitations bubbles releases tremendous energy into the liquid form of shock waves.
Objects and surfaces that are within or near the cavitations field are “processed” by the released energy.
The choices of a generator (and transducer) and horns/probes are matched to the volume, viscosity and other parameters of the particular application.

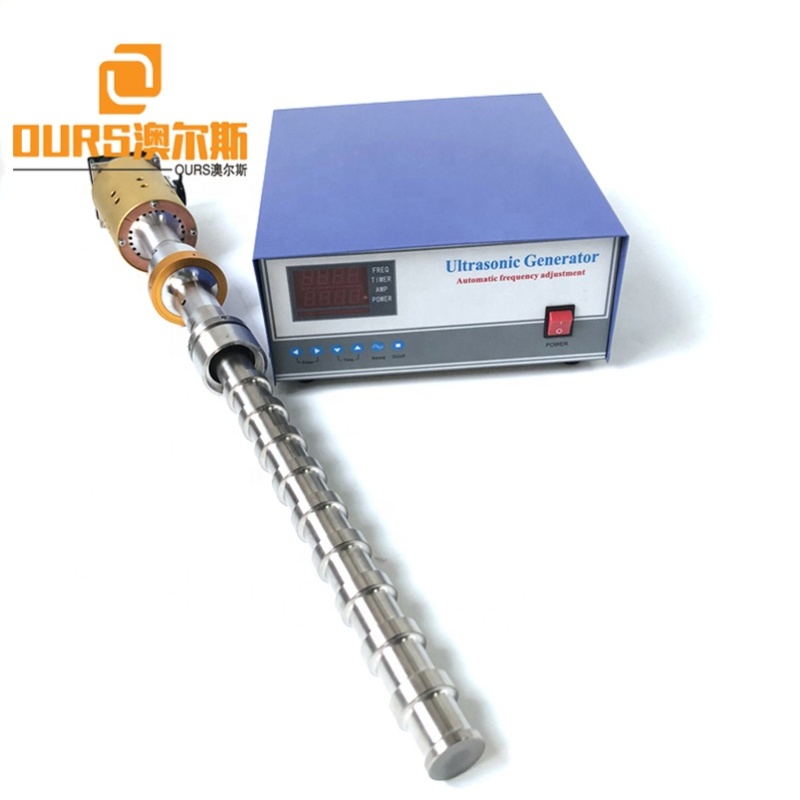

Our Ultrasonic Generator is highly sophisticated electronic device that automatically adjust the power level to meet the level of resistance produced by the specific application. Transducers utilize carefully selected piezo-electric crystals to transform the electrical signal to mechanical vibration. The Horns/Probes are crafted from high quality titanium or aluminum.



US equipment

Frequency

(KHz)

Ultrasound

Output(W)

Total Length

(mm)

Diameter

(mm)

Static Capacity

(pF±10%)

ARS-HLCSB-1000



 15-28

1000



500



Φ50-55



68000



ARS-HLCSB-1500



15-28



1500



850

Φ50-55



68000



ARS-HLCSB-2000



15-28



2000



1100

Φ50-55



132000





Widely used in the traditional ultrasonic cleaning, biochemistry, food, chemical, pharmaceutical and other industries. Biochemistry, ultrasound rods canbe applied to large-scale emulsification, separation, homogenization, extraction, catalytic reaction, increase productivity; the homogeneous uniform mixing in the food industry, ultrasound rods use played a role can not be underestimated; in chemical industry, ultrasound stick for pipes, tanks, acauldron class cleaning. Biodiesel abandoned oil and palm oil refining process, the catalytic effect of ultrasound astonishing efficiency ten times, and andamazing promotion prospects in the petrochemical industry.

biodiesel production ultrasonic reactor method 1000watt  ultrasonic reactor equipment

Product Display.jpg








Why choose us and About us.JPGCertification.JPGShipping and Packing.jpgShiping.jpg
