China OURS Factory Customized Immersion Ultrasonic Cleaner Submersible Ultrasonic Transducer Pack SUS304 Material And Power
1-9 Piece
$879.00
≥ 10 Piece
$780.00
- Item No.202011163e225MOQ1 Piece
Choice
Quantity:
If you have your own design, please contact us, there will have a professional customer service to communicate with you.
Don't have your files right now?No worries, Check out our art tips for more information.
If over 500pcs, mass production will start until pre-production sample has been approved.
Est. 7 days production

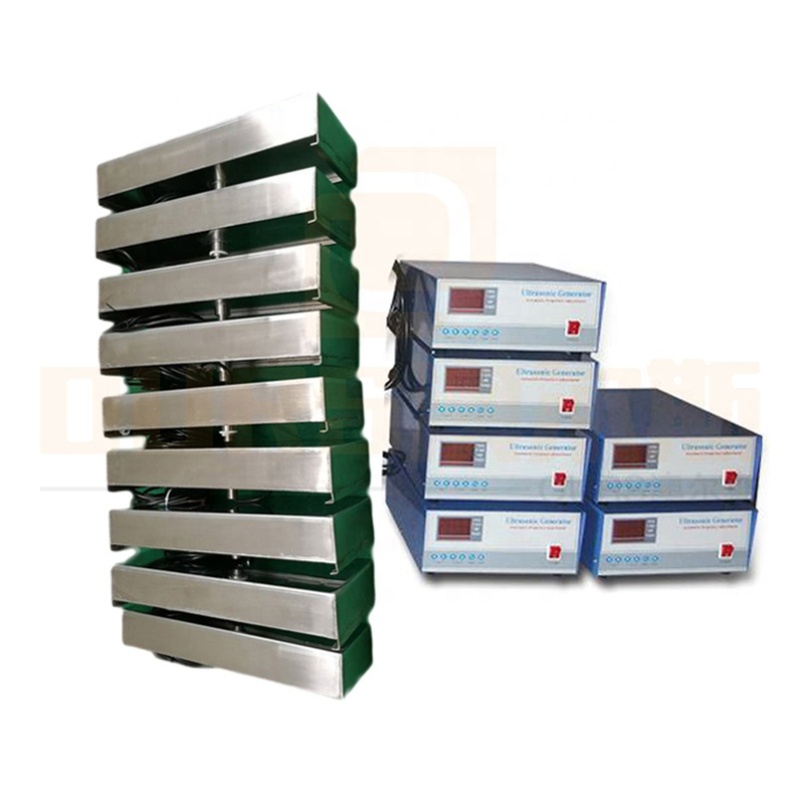

China OURS Factory Customized Immersion Ultrasonic Cleaner Submersible Ultrasonic Transducer Pack SUS304 Material And Power
Ultrasonic Immersible Transducer Pack also called the inputting type ultrasonic vibration plates, this product is suitable for cleaning electroplating parts before cleaning, horologe parts, hardware machinery parts, polyester filtering cores, semiconductor wafer, tools, lens, frames, jewellery, glass, utensils and other industries, wide application.
Ultrasonic Transducer Equipment structure:
1: All stainless steel structure, acid and alkali resistant, beautiful and durable.
2: The split structure is adopted, and the high frequency connection with the socket is adopted between the vibration plate and the ultrasonic generator, and the use and maintenance are convenient.
3: The installation and layout are flexible, and can be made into bottom shock type, side shock type and top shock type according to different needs to meet various cleaning requirements.
4: Advantages of ultrasonic vibration plate. Easy maintenance
5: When the power of the trough ultrasonic cleaner is too small, an input vibrating plate device can be used. If the shock plate device is added to the existing cleaning tank, it is converted into an ultrasonic cleaning machine. It is also a low-cost way.
Ultrasonic Immersible Transducer Pack features:
1) The ultrasonic generator adopts the most advanced eighth-generation frequency-tracking technology, which is domestically leading. The transducer adopts Japanese wafer technology, with strong cleaning power and stable performance.
2) The vibration surface of the vibration plate is made of SUS304 stainless steel, and the surface is hard chrome plated. It is acid and alkali resistant and has a beautiful appearance.
3) Split structure design, easy to install and use, easy to maintain, suitable for a variety of cleaning requirements.
4) The overall bending forming, straight seam double-sided protective welding, small deformation, completely leak-proof.
5) Shape, power lead-out mode, fixed position can be customized according to needs.
Type Description of Ultrasonic immersible transducer pack:
A
Mounting to tank wall with threaded duct nipple and fastening bracket. Cable through the tank wall.
B
Mounting to tank wall with threaded duct nipple and fixing nipple. Cable through the tank wall.
C
Mounting to tank wall with hanging hooks. Rigid stainless steel tube for cable over the tank top.
D
Mounting to tank wall with hanging hooks. Flexible metal armoured 1 m hose for cable over the tank top.
E
Mounting to tank bottom. Rigid stainless steel tube for cable through the tank wall.
F
Mounting to tank bottom. Rigid stainless steel tube for cable over the tank top.
G
Mounting to tank bottom. Flexible metal armoured 0,5 m hose for cable through the tank wall.
H
Mounting to tank bottom. Flexible metal armoured 1,5 m hose for cable over the tank top.
X
Non-standard mounting
Diamention(mm) | Frequency (Khz) | Power(W) | Ultrasonic Transducer | |
ARS-ZBH300W | 300*190*100 | 25,28,33,40,80,130 | 300 | 6 |
ARS-ZBH600W | 360*275*100 | 25,28,33,40,80,130 | 600 | 12 |
ARS-ZBH1000W | 450*350*100 | 25,28,33,40,80,130 | 1000 | 20 |
ARS-ZBH1200W | 470*380*100 | 25,28,33,40,80,130 | 1200 | 24 |
ARS-ZBH1500W | 520*450*100 | 25,28,33,40,80,130 | 1500 | 30 |
ARS-ZBH1800W | 560*450*100 | 25,28,33,40,80,130 | 1800 | 36 |
ARS-ZBH2000W | 650*450*100 | 25,28,33,40,80,130 | 2000 | 40 |
ARS-ZBH2400W | 740*520*100 | 25,28,33,40,80,130 | 2400 | 48 |
ARS-ZBH3000W | 820*540*100 | 25,28,33,40,80,130 | 3000 | 60 |
ARS-ZBH5000W | 1200*590*100 | 25,28,33,40,80,130 | 5000 | 100 |
Above are single frequency ultrasonic immersible transducer pack OEM Ultrasonic Immersible Transducer Pack(Size, Frequency,Power) | ||||
