China Shenzhen Factory Customized Cleaning Ultrasonic Generator Multi Frequency Cleaner Power Generator Box 40K/77K/100K/170K

Message

$650.00

Have chosenThere are no options selected.

* Model Number
Start To Order

Add To Cart Successfully!

SEND INQUIRY
China Shenzhen Factory Customized Cleaning Ultrasonic Generator Multi Frequency Cleaner Power Generator Box 40K/77K/100K/170K

China Shenzhen Factory Customized Cleaning Ultrasonic Generator Multi Frequency Cleaner Power Generator Box 40K/77K/100K/170K

  • Item No. Multi Frequency Ultrasonic Signal Power Generator
    MOQ 1 Unit
Tag   sourcing

Available Options

Model Number
Add Request About This Product
Max file 5MB each
If lager file please send us email

Quantity:

From $ 650.00635.00580.00  / Unit
$ 650.00
You save  $  -650.00
Trade Assurance protects your orders
On-time Dispatch Guarantee
On-time dispatch is guaranteed or you will be eligible to claim platform compensation.
Refund Policy
If the shipment is delayed or product quality differs from what are specified in the online order, you can claim for a refund.
Quick refund: If you can apply for a refund within two hours of making a payment, you will receive a refund immediately.

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

Automobile Parts Cleaner Equipment Industrial Ultrasonic Generator 28K/60K/70K/84K Ultrasonic Cleaning Generator Box With CE

02Specification

Ultrasonic power is often referred to as an ultrasonic source, an ultrasonic generator. Its function is to convert electrical energy into a high frequency alternating current signal that matches the ultrasonic transducer. From the form of the amplifying circuit, a linear amplifying circuit and a switching power supply circuit can be used, and the high-power ultrasonic power source generally adopts a circuit form of a switching power supply in terms of conversion efficiency. Linear power supplies also have their own range of applications. It has the advantage of not requiring strict circuit matching and allowing continuous and rapid changes in operating frequency. From the current situation in the ultrasound industry, ultrasound is mainly divided into self-excited and its exciting power supply.



The principle of the ultrasonic power supply is to first generate a signal of a specific frequency by a signal generator. This signal can be a sinusoidal signal or a pulse signal. This specific frequency is the frequency of the transducer, and is generally applied to the ultrasonic frequency in the ultrasonic device. It is 20KHz, 25KHz, 28KHz, 33KHz, 40KHz, 60KHz; 100KHz or more is not yet used in large quantities. However, with the continuous development of precision cleaning. I believe that the use of the face will gradually expand.





The ultrasonic generator can monitor the working frequency and power of the high power ultrasonic system.
According to the different requirements of users, we can adjust various parameters in real-time, such as power, amplitude, running time and so on.
Frequency fine tuning: adjusting the frequency makes the ultrasonic transducer always work in the best condition, the efficiency reaches the maximum, and the adjustment range is 2%.
Automatic frequency following: once the device has completed its initial setup, it can operate continuously without the need to regulate the generator.
Amplitude control: when the transducer changes during the working process, it can automatically adjust the driving characteristics to ensure that the tool head has a stable amplitude.
System protection: when the system works in an unsuitable operating environment, the generator will stop working and display the alarm and protect the equipment from damage.
Amplitude adjustment: the amplitude can be increased or reduced instantly in the working process, and the setting range of amplitude is 0%~100%.
Automatic frequency search: it can automatically measure the working frequency of tool heads and store them.

Quality assurance:

1. Our machine is equipped with world advanced engine and components.Some parts of machine owned patents by ourselves. 2. Whole set of pure water processor line featured with RO anti-saturation and advanced testing devices 3. Manufactured in Seaport Shenzhen.

Multi-frequency Ultrasonic cleaning generator:

Type

Power(W)

Frequency (KHz)

Size

AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system

ARS-SPDY-38/80 KHZ P 4

300W-1800W

38khz/80khz

300x360x150

ARS-SPDY-40/100KHZ P 4

300W-1800W

40khz/100khz

300x360x150

ARS-TPDY-28/83/130 KHZ P4

300W-1200W

28khz/83khz/130khz

300x360x150

ARS-TPDY-25/45/80KHZ P4

300W-1200W

25khz/45khz/80khz

300x360x150

ARS-TPDY-33/89/135KHZ P4

300W-1200W

33khz/89khz/135khz

300x360x150

ARS-TPDY-28/41/123KHZ P4

300W-1200W

28khz/41khz123khz

300x360x150

ARS-TPDY-40/80/120K

300W-1200W

40khz/80khz/120khz

300x360x150

ARS-FPDY-28/60/70/84KHZP4

300W-1200W

28khz/60khz/70khz/84khz

300x360x150

ARS--FPDY-40/77/100/170KHZ P4

300W-1200W

40khz/77khz/100khz/170khz

300x360x150

Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request

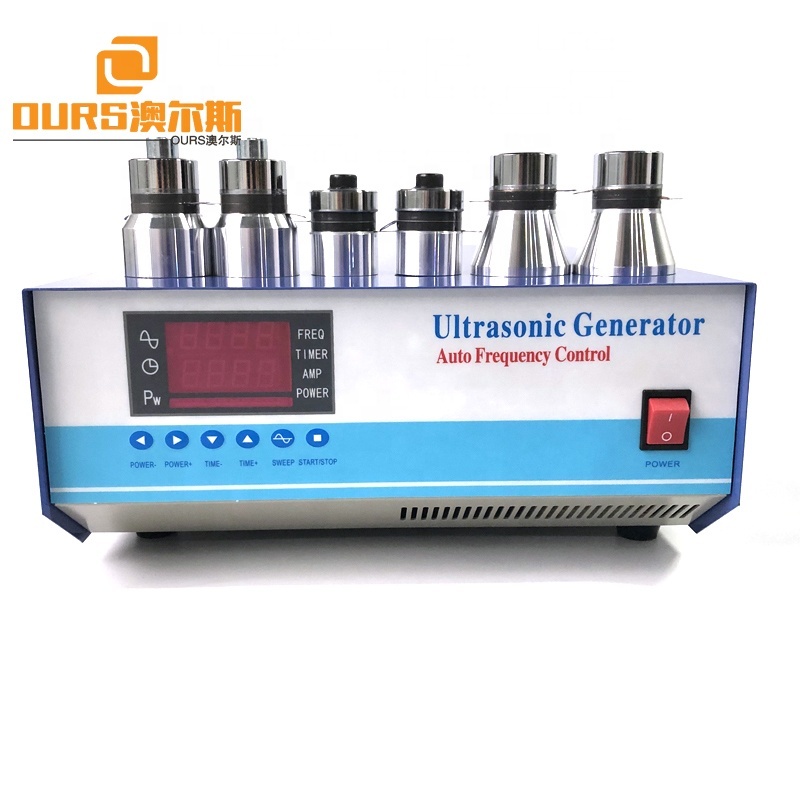

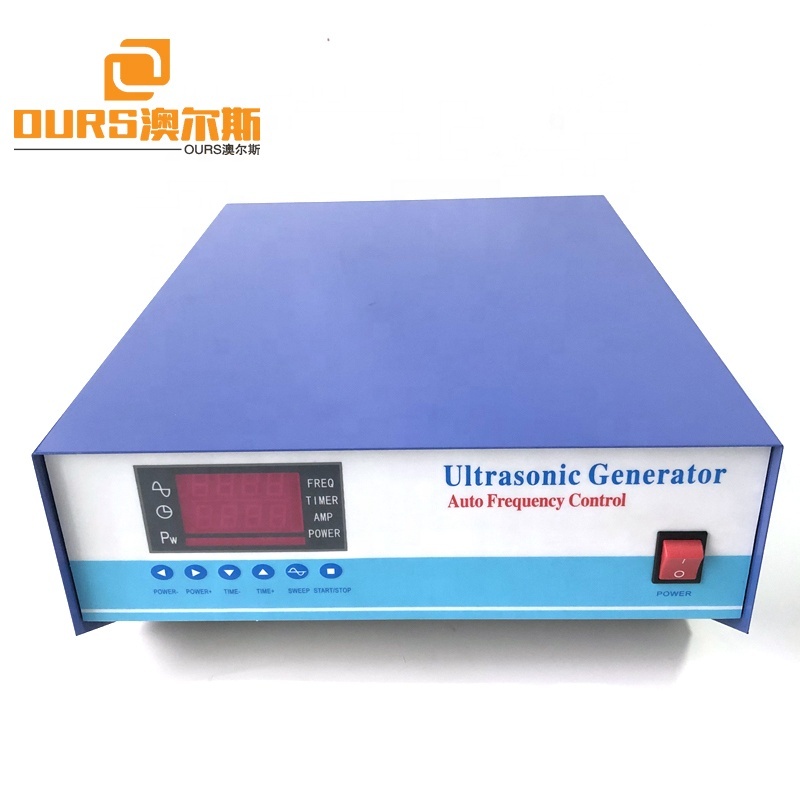

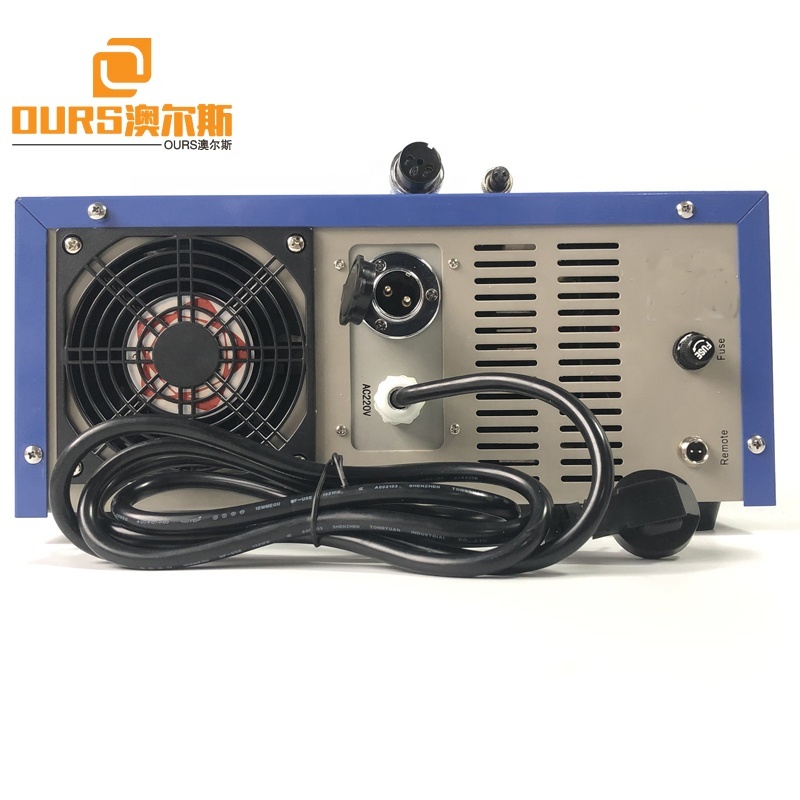

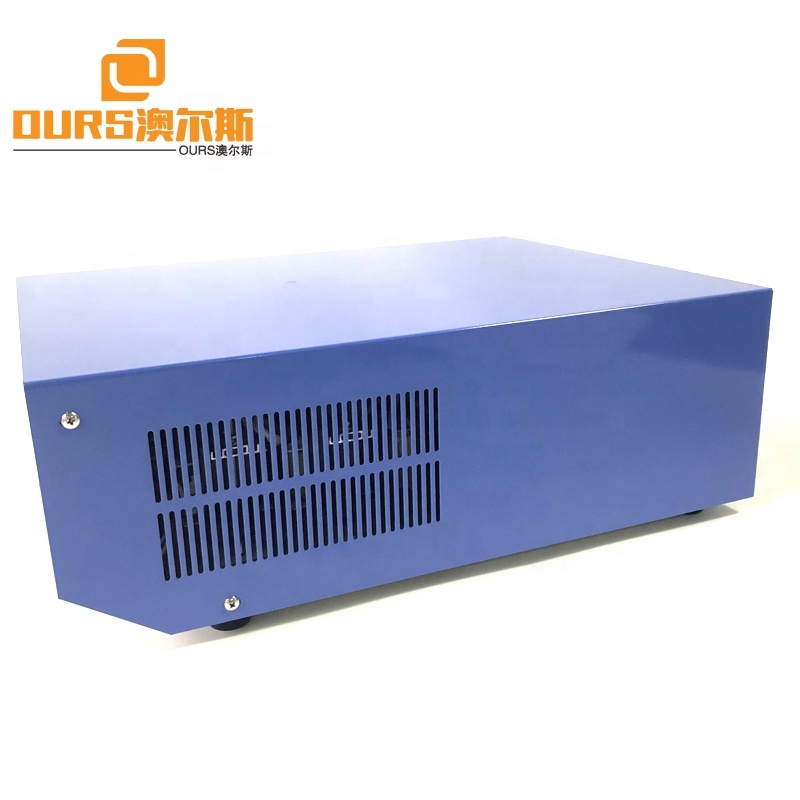

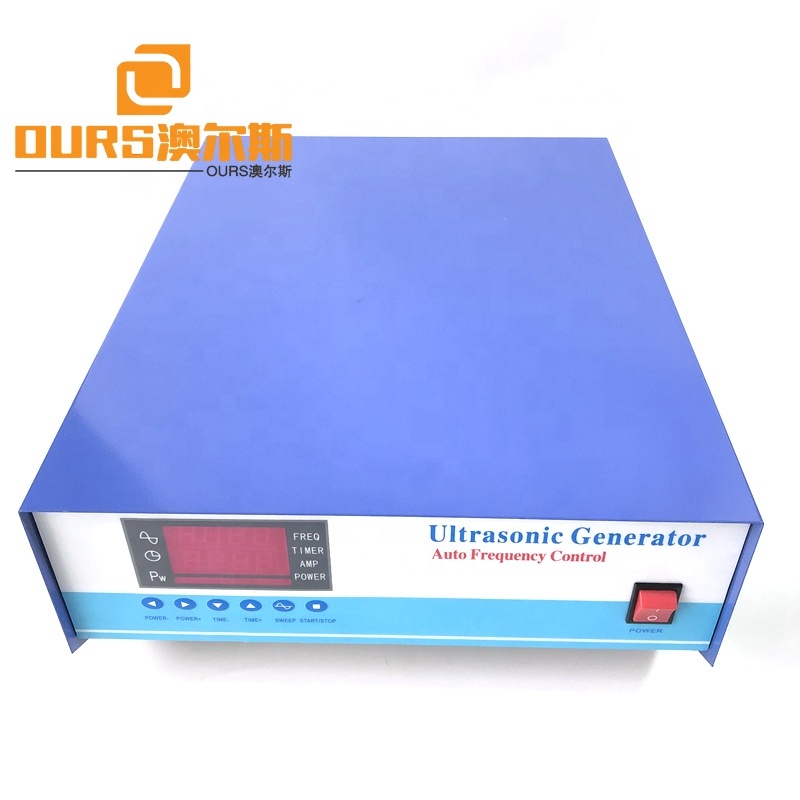

04Product display
