China supplier High Efficiency 28KHZ/40KHZ Ultrasonic Cleaning Oscillator For Fruit And Vegetable Machine
1-499 Piece
$9.00
≥ 500 Piece
$8.50
- Item No.2021040981cf9MOQ1 Piece
- Product size20 x 15 x 15 cmProduct weight2 kg
Choice
Quantity:
If you have your own design, please contact us, there will have a professional customer service to communicate with you.
Don't have your files right now?No worries, Check out our art tips for more information.
If over 500pcs, mass production will start until pre-production sample has been approved.
Est. 7 days production

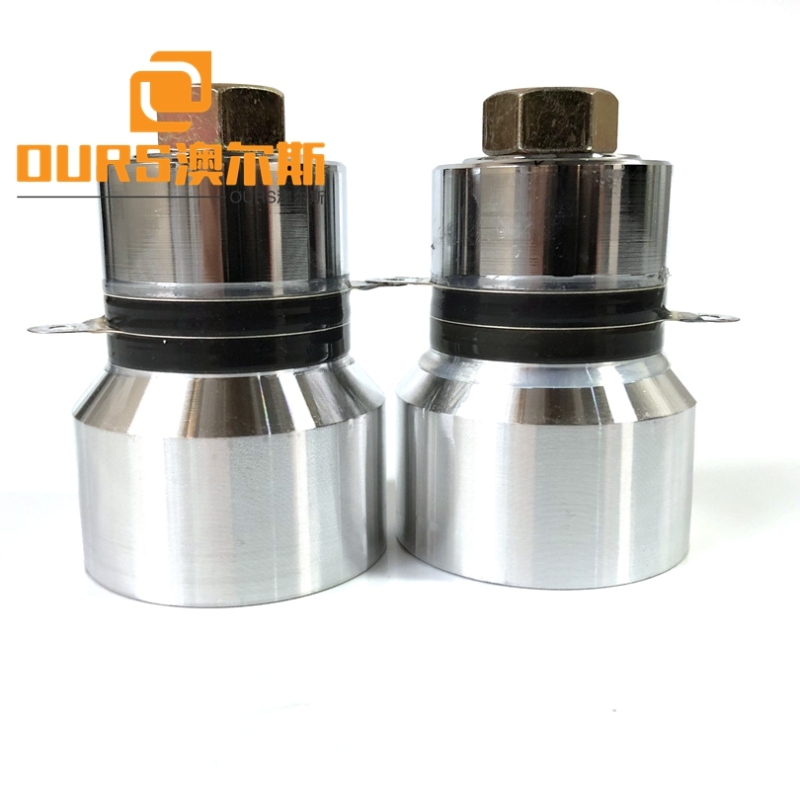

China supplier High Efficiency 28KHZ/40KHZ Ultrasonic Cleaning Oscillator For Fruit And Vegetable Machine
High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.
High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.
Good heat resistance: a large range of working temperature,low resonance impedance and heat productivity.
Good construction: fastened by bolt, easy for assembling, high reliability.
Principle of ultrasonic vibrator arrangement:
(1) Cleaning different product layouts have different requirements, such as the degree of oil staining of the product, the difficulty of cleaning, the level of cleaning requirements, and the design of the cleaning process, all require targeted selection.
(2) The arrangement of the vibrators is not as dense as possible, and the right one is the best.
3. Introduction to ultrasonic vibrator:

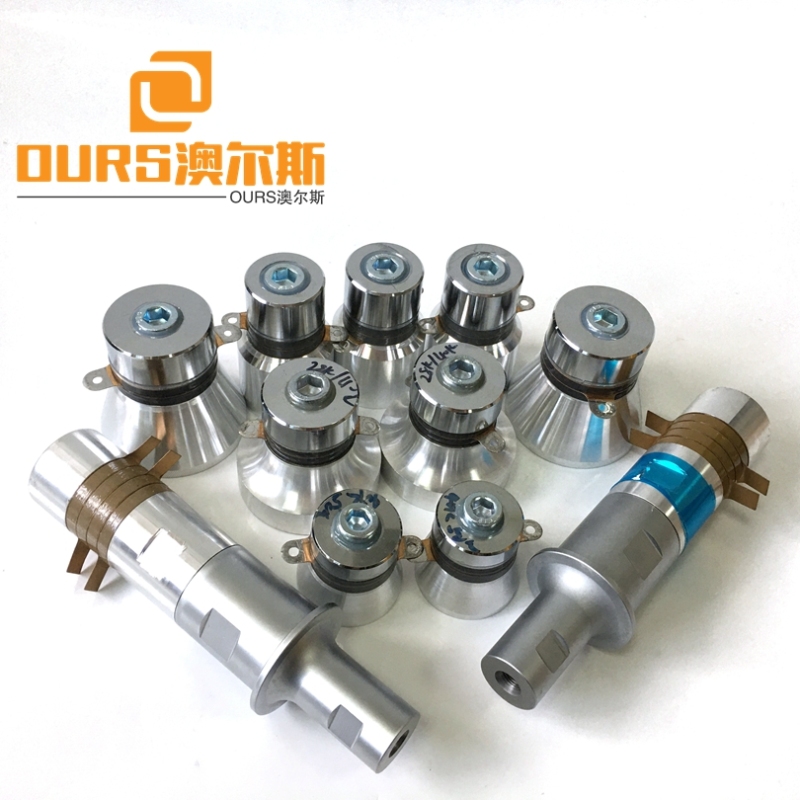

The ultrasonic vibrator, also called the ultrasonic vibrating head, is an ultrasonic transducer and is a core component of the ultrasonic cleaning machine. Industry standard name: Ultrasonic transducer, which belongs to piezoelectric ceramic material and one of the main accessories of ultrasonic cleaning machine. From the power point, a single ultrasonic head is 60W, 100W. The frequencies are: 20KHZ, 25KHZ, 28KHZ, 40KHZ, 68KHZ, 80KHZ, 100KHZ, or higher; the difference in shape is: straight cylindrical shape, horn shape, and the like.
| Type | Length(mm) | Weight(g) | Frequency(KHz) | Resonance Impedance (Ω) | Static Capacity (pF)±10% | Input Power(W) |
| ARS-QXHNQ-20100 PZT-8 | 94 | 900 | 20 | 10-20 | 5200 | 100 |
| ARS-QXHNQ-25100 PZT-4 | 77 | 710 | 25 | 10-20 | 6600 | 100 |
| ARS-QXHNQ-28100 PZT-8 | 66 | 625 | 28 | 10-20 | 5200 | 100 |
| ARS-QXHNQ-28100 PZT-4 | 66 | 624 | 28 | 10-20 | 6600 | 100 |
| ARS-QXHNQ-30100 PZT-8 | 61 | 555 | 30 | 10-20 | 5200 | 100 |
| ARS-QXHNQ-2560 PZT-4 | 77 | 530 | 25 | 10-20 | 5400 | 60 |
| ARS-QXHNQ-2860 PZT-8 | 68 | 470 | 28 | 10-20 | 3800 | 60 |
| ARS-QXHNQ-2850 PZT-4 | 82 | 425 | 28 | 10-20 | 4100 | 50 |
| ARS-QXHNQ-3360 PZT-8 | 58 | 420 | 33 | 10-20 | 3800 | 60 |
| ARS-QXHNQ-4060 PZT-8 | 55 | 300 | 40 | 10-20 | 3800 | 60 |
| ARS-QXHNQ-4060 PZT-4 | 56 | 310 | 40 | 10-20 | 5400 | 60 |
| ARS-QXHNQ-4050 PZT-4 | 54 | 260 | 40 | 10-20 | 4100 | 50 |
| ARS-QXHNQ-4050-1 PZT-4 | 57 | 300 | 40 | 10-20 | 4100 | 50 |
| ARS-QXHNQ-5435 PZT-4 | 36 | 135 | 54 | 10-20 | 3200 | 35 |
| ARS-QXHNQ-6860 PZT-8 | 80 | 460 | 68 | 10-20 | 3800 | 60 |
| ARS-QXHNQ-68120 PZT-4 | 67 | 588 | 68 | 10-20 | 7800 | 120 |
| ARS-QXHNQ-8060 PZT-4 | 60 | 325 | 80 | 10-20 | 5400 | 60 |
| ARS-QXHNQ-12060 PZT-4 | 56 | 260 | 120 | 10-20 | 5400 | 60 |
| ARS-QXHNQ-13550 PZT-4 | 54 | 215 | 135 | 10-20 | 4200 | 50 |
