China supplier Piezo Ceramic ring for ultrasonic transducer
≥50 Piece
$3.50
- Item No. ARS-QXJPMOQ 50 Piece
Choice
Quantity:
If you have your own design, please contact us, there will have a professional customer service to communicate with you.
Don't have your files right now?No worries, Check out our art tips for more information.
If over 500pcs, mass production will start until pre-production sample has been approved.
Est. 7 days production

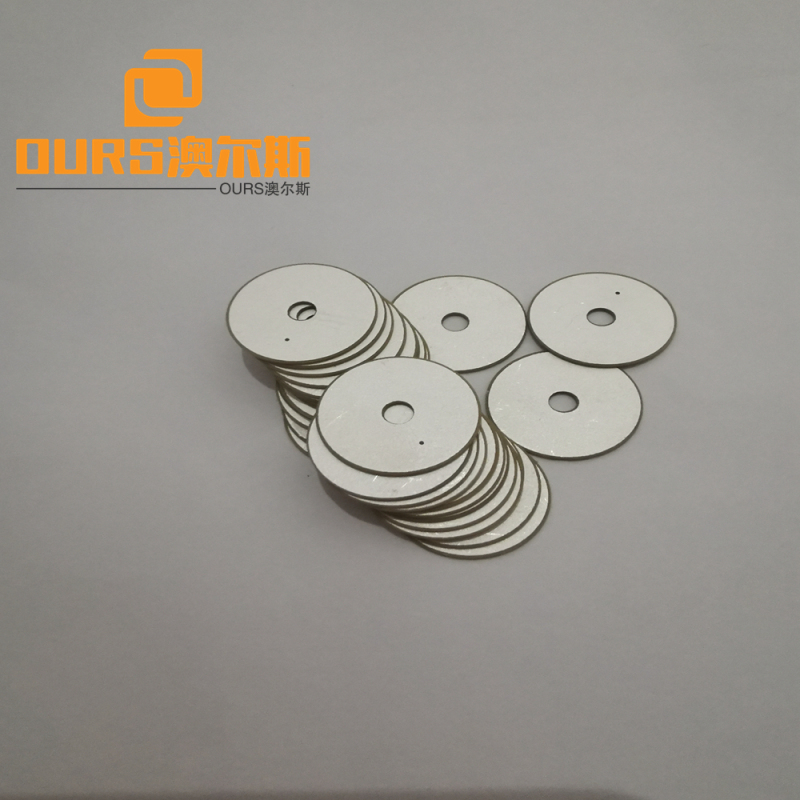

China supplier Piezo Ceramic ring for ultrasonic transducer
Application of Piezoelectric Ceramic
1. ultrasonic cleaning trasnducer
2. ultrasonic welding tansducer
3. ultrasonic beauty transducer
4. ultrasonic underwater transducer
5. ultrasonic immersible transucer
6. ultrasonic screening transducer
7. ultrasonic cutting transducer
8. ultrasonic atomization transducer
9. ultrasonic emulsifier
Specification | Dimension | Radial frequency | Capacitance | Dielectric dissipation factor | Impedance | Kr | Mechanical quality factor (Qm) |
ARS-QXJP3030 | Φ30×3.0 | 66.7 | 2730 | ≤0.3 | ≤15 | ≥0.55 | 500 |
ARS-QXJP3530 | Φ35×3.0 | 63.0 | 3100 | ≤0.3 | ≤15 | ≥0.55 | 500 |
ARS-QXJP3865 | Φ38×6.5 | 59.9 | 1580 | ≤0.3 | ≤15 | ≥0.55 | 500 |
ARS-QXJP4530 | Φ45×3.0 | 50.0 | 5100 | ≤0.3 | ≤15 | ≥0.55 | 500 |
ARS-QXJP4535 | Φ45×3.5 | 50.0 | 4700 | ≤0.3 | ≤15 | ≥0.55 | 500 |
ARS-QXJP5030 | Φ50×3.0 | 46.0 | 5800 | ≤0.3 | ≤15 | ≥0.55 | 500 |
ARS-QXJP5035 | Φ50×3.5 | 46.0 | 6300 | ≤0.3 | ≤15 | ≥0.55 | 500 |
ARS-QXJP5050 | Φ50×5.0 | 46.0 | 4150 | ≤0.3 | ≤15 | ≥0.55 | 500 |
FOR MORE OEM SIZE WELCOME TO ENQUIRE SALERS | |||||||
