Factory Product 5000W Immersible Ultrasonic Vibration Plate Waterproof Ultrasonic Transducer Pack

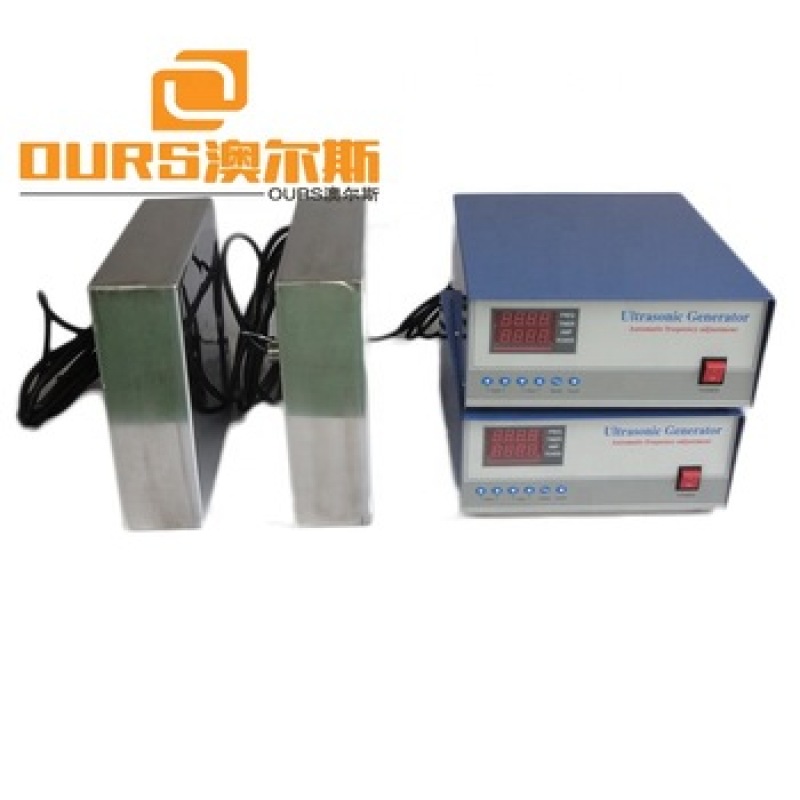

Immersion ultrasonic cleaning machine and vibration plate are the most important parts of ultrasonic cleaning. The ultrasonic transducer is welded to plant screws and glued. German technology is used to paste the transducer inside the vibration plate, and then ultrasonic The vibration plate is sealed to achieve the purpose of placing the ultrasonic transducer in the cleaning solution, and then the ultrasonic generator provides ultrasonic power, so that the ultrasonic transducer generates ultrasonic energy, and through the transmission of water, cavitation and impact flow are formed in the water , To achieve the effect of cleaning the surface stains of the workpiece.



Application:
Especially in the aequeous cleaning, degreasing, electroplating, medical technology, mold cleaning, optics, electronics etc.
Adapted to the application on the tank bottom or the side walls.



Features
1, Submersed in liquid, by bottom-mounting or wall-mounting
2, Replaceable, expandable, renewable by submersible transducer module
3, Customized to solve different problems with different frequency, power,shape,size etc
4, Multi-frequencies are available by identical transducer or different models of transducer



Type Description
A.Mounting to tank wall with threaded duct nipple and fastening bracket. Cable through the tank wall.

B.Mounting to tank wall with threaded duct nipple and fixing nipple. Cable through the tank wall.

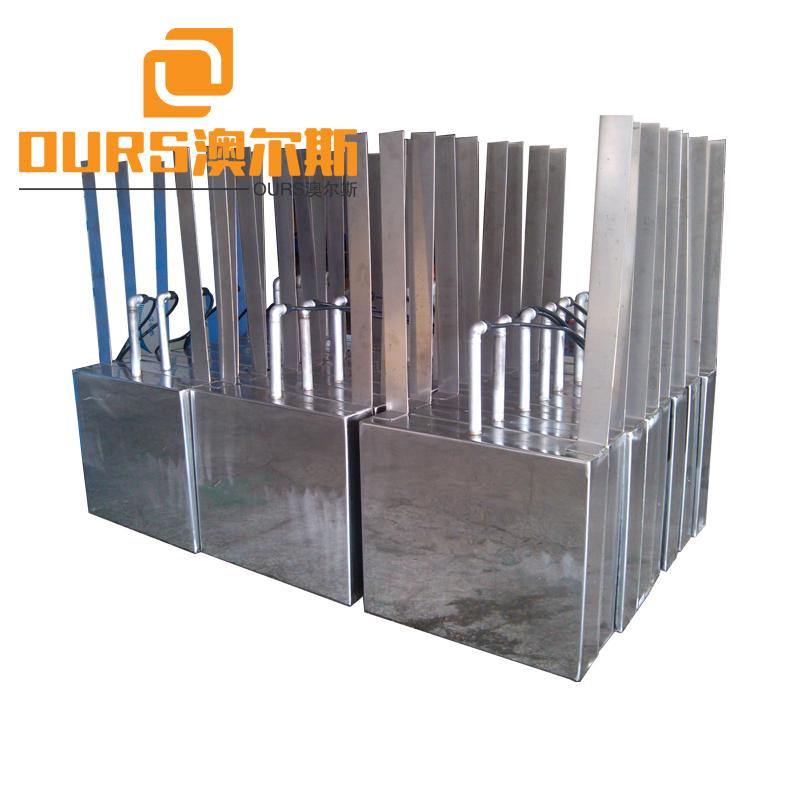

C.Mounting to tank wall with hanging hooks. Rigid stainless steel tube for cable over the tank top.

D.Mounting to tank wall with hanging hooks. Flexible metal armoured 1 m hose for cable over the tank top.

E.Mounting to tank bottom. Rigid stainless steel tube for cable through the tank wall.

F.Mounting to tank bottom. Rigid stainless steel tube for cable over the tank top.

G.Mounting to tank bottom. Flexible metal armoured 0,5 m hose for cable through the tank wall.

H. Mounting to tank bottom. Flexible metal armoured 1,5 m hose for cable over the tank top.

X.Non-standard mounting





Type

Diamention(mm)

Frequency (Khz)

Power(W)

Ultrasonic Transducer

ARS-ZBH300W

300*190*100

25,28,33,40,80,130

300

6

ARS-ZBH600W

360*275*100

25,28,33,40,80,130

600

12

ARS-ZBH1000W

450*350*100

25,28,33,40,80,130

1000

20

ARS-ZBH1200W

470*380*100

25,28,33,40,80,130

1200

24

ARS-ZBH1500W

520*450*100

25,28,33,40,80,130

1500

30

ARS-ZBH1800W

560*450*100

25,28,33,40,80,130

1800

36

ARS-ZBH2000W

650*450*100

25,28,33,40,80,130

2000

40

ARS-ZBH2400W

740*520*100

25,28,33,40,80,130

2400

48

ARS-ZBH3000W

820*540*100

25,28,33,40,80,130

3000

60

ARS-ZBH5000W

1200*590*100

25,28,33,40,80,130

5000

100

Above are single frequency ultrasonic immersible transducer pack OEM Ultrasonic Immersible Transducer Pack(Size, Frequency,Power)

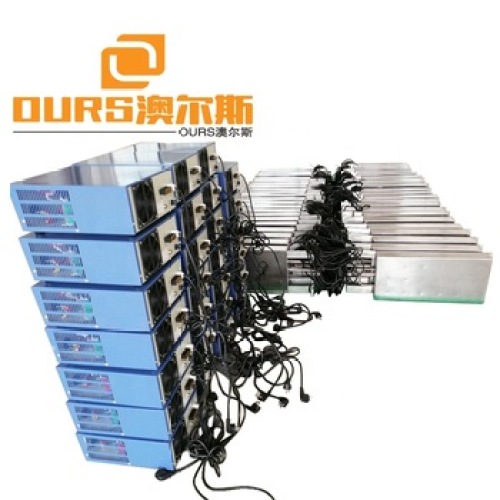

Multi pack.JPG






 2-21




1.JPG2.JPG8.jpg 9.JPG
