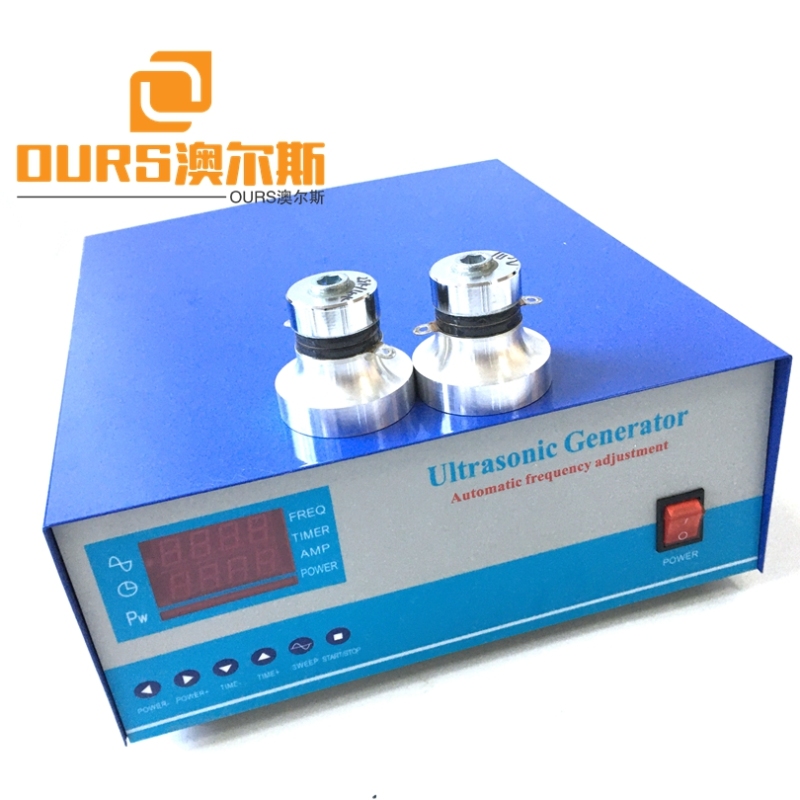

Factory produced 1500W 28KHz Frequency And Power Adjustable Ultrasonic Generator For Automobile Industry

The ultrasonic power matching circuit includes output transformer, inductor and transducer. The circuit isolates the high-voltage signal after power amplification with an output transformer, and then excites the series (parallel) resonant circuit formed by the resonant inductor and the ultrasonic transducer to make it resonate, convert electrical energy into mechanical energy most effectively, and realize ultrasonic Purpose of cleaning.
It is suitable for cleaning electroplating parts before plating, stainless steel hardware parts waxing, degreasing cleaning, metal products, copper and aluminum parts, mechanical parts, zinc alloy parts, clock parts, glasses, jewelry, glassware, etc., almost all hard plastics, Cleaning of oil, polishing paste, dust and other attachments left in the machining process of metal and hardware parts.

The main feature of this generator is that it is driven by the international advanced digital pulse mode. Compared with the traditional self-excited control technology, it has small size, light weight, strong power, stable and reliable work, continuously adjustable power, flexible control, etc. The advantages have been recognized by many experts. Frequency tracking also ensures that the machine is in the best working condition from beginning to end, can maximize the potential of the ultrasonic transducer, and has complete protection functions: overcurrent protection, overheating protection, output short-circuit protection.

ultrasonic generator is a kind of equipment which converts the city electricity to the transducer with high frequency alternating current to drive the transducer. It is an important part of the high-power ultrasonic system. It can also be called the electronic box, the ultrasonic driving power supply and the ultrasonic controller. Although the ultrasonic generator can also be called ultrasonic power supply, in fact, the ultrasonic generator is only part of the ultrasonic power supply. The ultrasonic power supply can be divided into self excitation and its exciting type according to the difference of the exciting mode, and the ultrasonic generator refers to its exciting ultrasonic power supply, because it is more than 10% higher than self excitation in the output power, so most of the ultrasonic generator is used as the driving power.

generator was developed through more than 10 years of accumulated experience for high-end industrial cleaning applications.It adopts the latest technology to be the first generator in the world with four major features: full bridge phase shift,constant power output,automatic frequency tracking and load self-adaptation which would improve the stability and compatibility to different working conditions.
This generator can be individually connected to a washing tank or integrated to large ultrasonic cleaning system.Either way,it will get fast,uniform and perfect cleaning effect.
Digital ultrasonic generator selectable frequency 25KHZ, 28KHZ,33khz, 40KHZ, 68KHZ, 80KHZ, 130KHZ or higher frequency, single-frequency ultrasonic generator.

Digital ultrasonic generator Power: 600W ~ 2400W, 2500W ~ 10000W (to be ordered) or a higher power.

Price non quote transducer
Need to buy separate transducer

which is controlled by single chip technology.in order to meet the special needs.output two different frequency ultrasonic source through only one output interface in accordance with customer’s requirement.

Environment temperature: 0-40C°

Relative humidity: 40%--90%

Time control: 0—59 minutes 59 seconds

Range of power control: 0-100%   digital control and adjustment of 16 grades

Internal overtemperature protection: 65 C°

Outer size:  L x W x H = 300 x 360 x 150

28khz/41khz123khz three frequency High quality  ultrasonic generator for automotive Propeller ultrasonic cleaning machine
