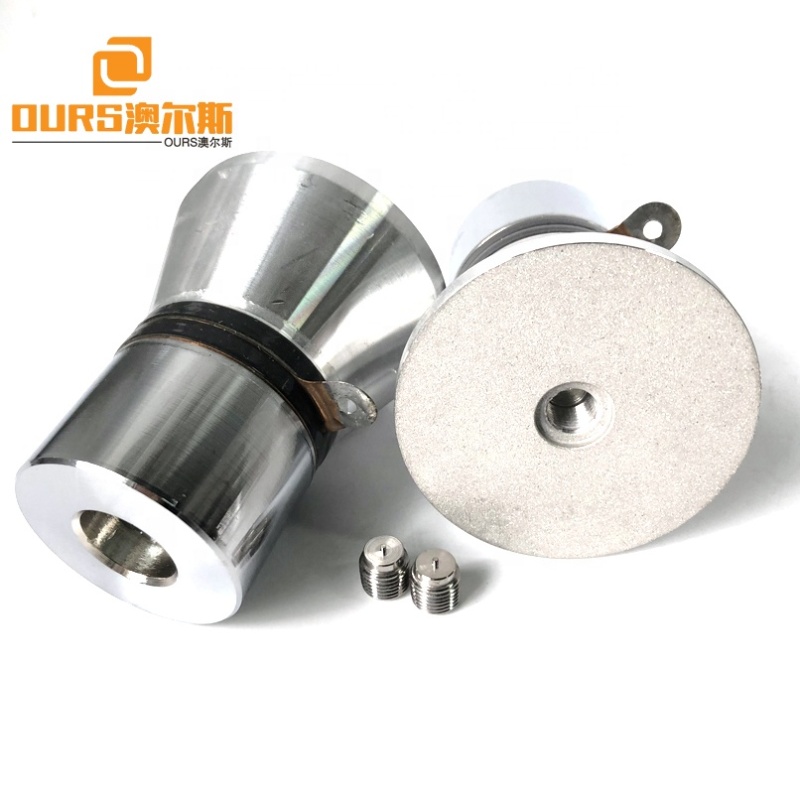

High Power 100W Ultrasound Industry Cleaning Transducer 25K Piezoelectric Ultrasonic Wave Transducer/Sensor
The transducer is an energy converter, which can converted the high frequency, high power current, output of power supply into reciprocating mechanical energy of the ultrasonic vibration, the vibration frequency output of drive power with the same frequency as the current. To further enlarge the amplitude of ultrasonic energy input to the place where we need.
Ultrasonic atomization is a very conventional method to produce sprays of very small droplets. Resulting droplet size distributions are very narrow and the mean diameter is essentially only controlled by the excitation frequency.
Ultrasonic Transducer classification:
A. piezoelectric chip classification: Black chip P4 series and yellow chip P8 series;
B. Frequency classification: low frequency series (17-23KHz), intermediate frequency series (25-28KHz), medium and high frequency series (33-60KHz) and high frequency series (68-200KHz);
C. Power classification: 30W series (including 35W), 50W series (including 60W), 100W series (including 80W) and other unconventional power;
D. shape classification: straight column and horn type
Ultrasonic Transducer Frequency selection:
The frequency of the transducer is inversely proportional to the wavelength, and the wavelength is related to the diameter of the cavity (strictly speaking, the nucleation time is longer due to the low frequency), and the diameter of the cavity is related to the explosion pressure. The higher the general frequency, the smaller the wavelength, the smaller the diameter of the cavity, the lower the explosion pressure, but the higher the density of the cavity, the better the permeability.
Based on the above principles:
Low frequency (17 ~ 23KHz): When the dirt of the cleaned material is heavy or difficult to be cleaned, and the explosive impact does not cause much damage to the surface of the cleaned material, the low frequency series transducer should be selected. Commonly used industries are: magnetic industry, steam protection industry, textile industry and so on. Note that the noise of this series is large, preferably sound insulation.
Medium frequency (25 ~ 28KHz): If the dirt of the cleaned material is slightly heavy or the cleaning is difficult and moderate, and the explosive impact does not cause much damage to the surface of the cleaned material, the intermediate frequency series transducer should be selected. This series of industries are the most widely used, and are common in machinery processing industry, electroplating industry, catering industry and so on.
Medium and high frequency (33 ~ 60KHz): When the dirt of the cleaned material is light, the cleaning is easy, or the explosive shock damage to the surface of the cleaned material is required, the medium and high frequency series transducer should be selected. Commonly used industries include precision parts, glass glasses, electronic components, circuit boards, etc.
High Frequency (68-200KHz): The dirt is very light and easy to clean. When the explosive impact is prohibited to damage the surface of the cleaned object, the high frequency series transducer should be selected. Commonly used industries are semiconductors, special high-precision parts, etc.
|Specification List |
| Size |
|Screw hole size (diameter * pitch * depth)M10*1.0*10|
