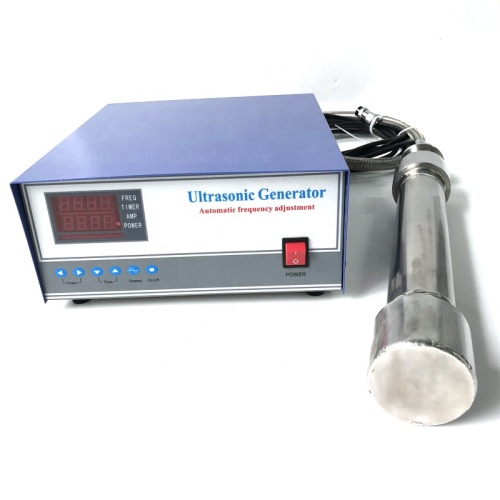

Ultrasonic vibration rod is the use of ultrasonic in the transmission process of the existence of the positive and negative pressure cycle, in the positive phase, have squeezed medium molecule, increase the density of the original medium; negative phase, medium molecular sparse, discrete, medium density decreases. Ultrasonic vibration rod can be around 360 degrees even produce ultrasonic, and the energy output from the liquid level, temperature and other effects of load change, the ultrasonic vibration rod consists of high power ultrasonic transducer, horn and tool head (emitter), used to generate ultrasonic vibration, and the vibration energy transmitted to the liquid. Transducer converts the electrical energy input into mechanical energy, i.e., ultrasonic wave. Its form is the transducer in the longitudinal motion back and forth, the amplitude is generally in a few microns. Such amplitude power density is not enough, can not be used directly. Amplitude bar according to the design needs to enlarge the amplitude, isolation of the reaction solution and transducer, but also play a role in fixing the entire ultrasonic vibration system. The utility model is connected with an amplitude variable rod, and the ultrasonic energy is transmitted to the tool head through the amplitude variable rod, and then the ultrasonic energy is transmitted into the chemical reaction liquid by the tool.
Since cavitation occurs on all outside areas of the tube, ultrasonic energy distribution in the tank is very uniform, with an excellent cleaning effect.
The output power of the tubular transducer equipment is not affected by the depth of solution, capacity of bath, variation of solution temperature and so on.
Thanks to structural tubular equipment, the application range is wider than a conventional transducer equipment. It is best matched to vacuum and high pressure cleaning and chemical processing.
It has one and half to two times the life can be maintained compare with conventional transducer equipment.
The round shape makes it possible to install very simply in every place so that the designing of the bath is simple.
The tube structure guarantees watertightness.
Widely used in the traditional ultrasonic cleaning, biochemistry, food, chemical, pharmaceutical and other industries. Biochemistry, ultrasound rods canbe applied to large-scale emulsification, separation, homogenization, extraction, catalytic reaction, increase productivity; the homogeneous uniform mixing in the food industry, ultrasound rods use played a role can not be underestimated; in chemical industry, ultrasound stick for pipes, tanks, acauldron class cleaning. Biodiesel abandoned oil and palm oil refining process, the catalytic effect of ultrasound astonishing efficiency ten times, and andamazing promotion prospects in the petrochemical industry.
