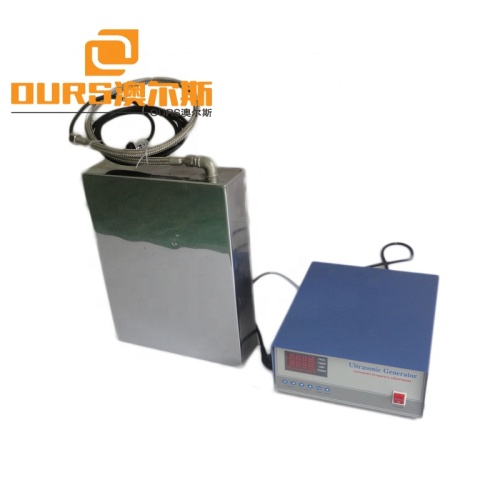

High Power 1800W Submersible Transducer Pack Waterproof Immersible Transducer With Cleaning Generator
TheUltrasonic Immersible Transducer Pack is also called an ultrasonic vibration box or an ultrasonic cleaning box, and is an ultrasonic cleaning device which is formed by bonding an ultrasonic vibrator to a stainless steel case and an ultrasonic generator. It is generally placed in various cleaning tanks for ultrasonic cleaning purposes. The size of the vibration plate and the direction of the lead tube can be made into the bottom vibration type, the side vibration type and the top vibration type according to the installation position, and the effect of thorough cleaning can be achieved by using different requirements. Suitable for electronic parts, electroplating hardware, auto parts, optical lenses, jewelry, glassware, filter cores, spinnerets, medical equipment, etc.
The working principle of the ultrasonic vibrating plate box is that the ultrasonic generator generates super-audio electric energy higher than 20KHZ, and the transducer is converted into the same frequency mechanical vibration into the cleaning liquid, and the ultrasonic conduction is forward and forward, which generates numerous tiny bubbles. These bubbles are formed and grown in the negative pressure region in which the ultrasonic waves propagate longitudinally, and rapidly rupture in the positive pressure region. The formation, growth, and rapid rupture of such tiny bubbles are called"cavitation effects." In the cavitation effect, the instantaneous high pressure of more than 10,000 atmospheres is generated after the bubble bursts, and the instantaneous high pressure continuously generated is like a series of small explosions continuously bombarding the surface of the object, so that the surface of the object quickly falls off.
Type Description of Ultrasonic immersible transducer pack:
Mounting to tank wall with threaded duct nipple and fastening bracket. Cable through the tank wall.
Mounting to tank wall with threaded duct nipple and fixing nipple. Cable through the tank wall.
Mounting to tank wall with hanging hooks. Rigid stainless steel tube for cable over the tank top.
Mounting to tank wall with hanging hooks. Flexible metal armoured 1 m hose for cable over the tank top.
Mounting to tank bottom. Rigid stainless steel tube for cable through the tank wall.
Mounting to tank bottom. Rigid stainless steel tube for cable over the tank top.
Mounting to tank bottom. Flexible metal armoured 0,5 m hose for cable through the tank wall.
Mounting to tank bottom. Flexible metal armoured 1,5 m hose for cable over the tank top.
1) Ultrasonic vibration plate box with high-quality high-performance transducer and ultrasonic generator, strong cleaning power and stable performance.
2) The vibration box can be assembled into any water tank or container as an ultrasonic cleaning machine, saving equipment costs.
3) Ultrasonic vibration plate box is generally made of fully imported 2mm stainless steel plate with precision welding, acid and alkali resistance, and durable.
4) Flexible and convenient to apply to various cleaning requirements, the vibration plate box can be arranged on the bottom surface, side surface or top surface of the cleaning tank as needed.
5) Ultrasonic vibration plate box and ultrasonic generation source and vibration box are designed separately, which is easy to maintain and maintain.
6) Ultrasonic vibrating plate box has a wide range of applications. In addition to cleaning, it can be put into various applications such as homogenization and environmental water treatment.
1800W Submersible ultrasonic vibrator 40khz immersible transducer plate box
Above are single frequency ultrasonic immersible transducer pack OEM Ultrasonic Immersible Transducer Pack(Size, Frequency,Power)
Multi-frequency Submersible ultrasonic transducer
|Dual frequency||Triple frequency||Fourfold frequency|
|ARS-DPZBH600W||450*350*100||38/80 40/100||25/40/80 28/80/130 40/80/100||28/60/70/84 40/77/100/170||600|
|ARS-DPZBH1000W||450*350*100||38/80 40/100||25/40/80 28/80/130 40/80/100||28/60/70/84 40/77/100/170||1000|
|ARS-DPZBH1200W||650*450*100||38/80 40/100||25/40/80 28/80/130 40/80/100||28/60/70/84 40/77/100/170||1200|
|ARS-DPZBH1500W||650*450*100||38/80 40/100||25/40/80 28/80/130 40/80/100||28/60/70/84 40/77/100/170||1500|
|ARS-DPZBH2000W||650*450*100||38/80 40/100||25/40/80 28/80/130 40/80/100||28/60/70/84 40/77/100/170||2000|
|ARS-DPZBH2400W||820*540*100||38/80 40/100||25/40/80 28/80/130 40/80/100||28/60/70/84 40/77/100/170||2400|
|ARS-DPZBH3000W||820*540*100||38/80 40/100||25/40/80 28/80/130 40/80/100||28/60/70/84 40/77/100/170||3000|
