Hot Sales 1500W 28KHZ Stainless Steel Car Parts Cleaning Waterproof Submersible Ultrasonic Cleaner
1-9 Set
$1,200.00
≥ 10 Set
$1,150.00
- Item No.20210305f449eMOQ1 Set
Choice
Quantity:
If you have your own design, please contact us, there will have a professional customer service to communicate with you.
Don't have your files right now?No worries, Check out our art tips for more information.
If over 500pcs, mass production will start until pre-production sample has been approved.
Est. 7 days production

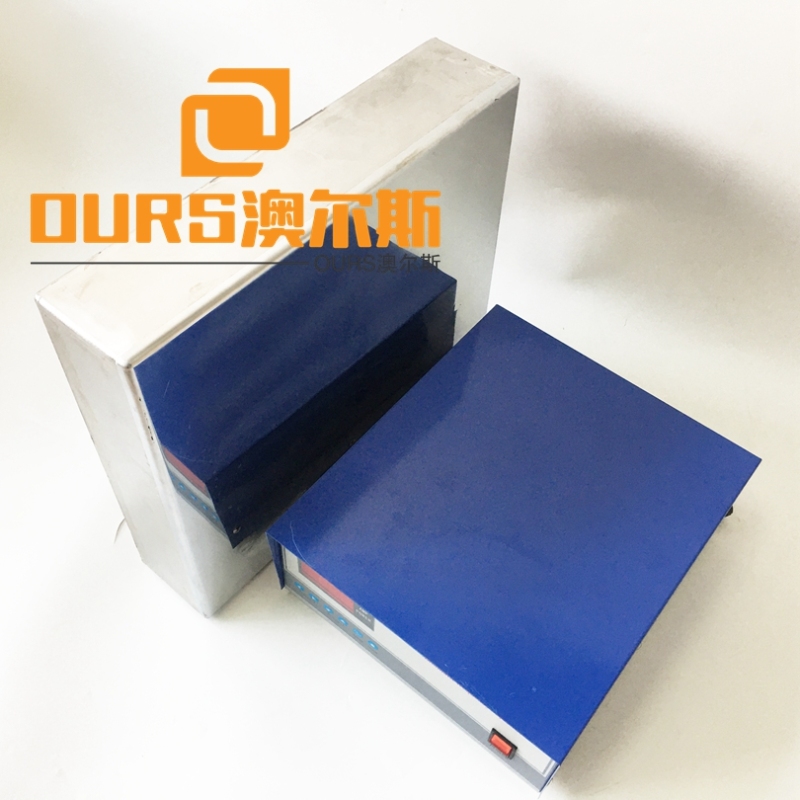

Hot Sales 1500W 28KHZ Stainless Steel Car Parts Cleaning Waterproof Submersible Ultrasonic Cleaner

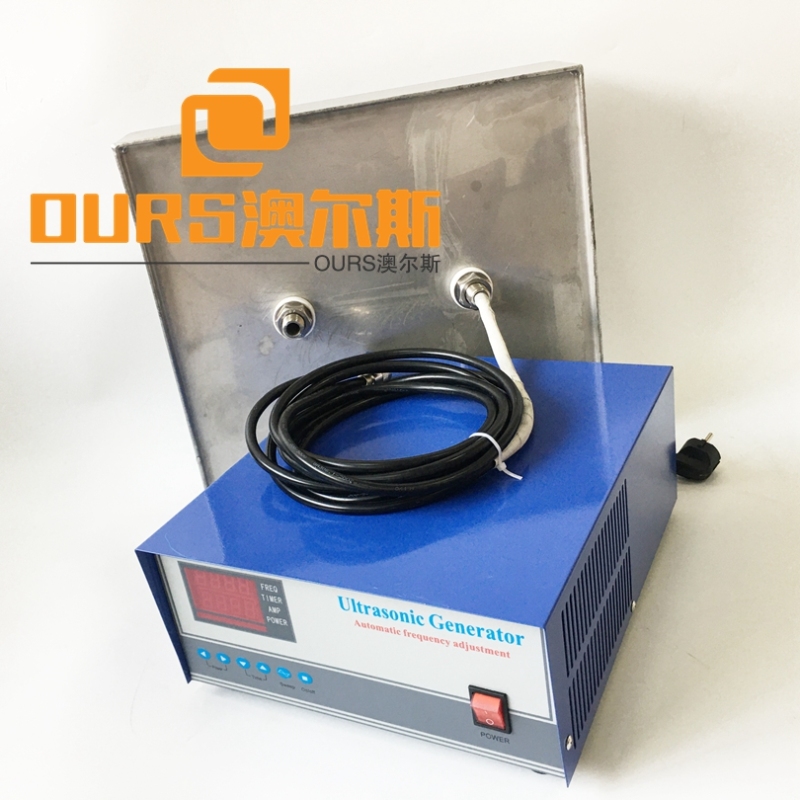

Hot Sales 1500W 28KHZ Stainless Steel Car Parts Cleaning Waterproof Submersible Ultrasonic Cleaner
Specification details:
Ultrasonic transducer box size (mm): 520*450*100mm(LXWXH)
Housing material: SUS316L
Surface finishing: Hard-Cr plating treatment
Ultrasonic frequency: 28KHZ/40KHZ
Ultrasonic transducers: 15PCS
Ultrasonic power: 1500W
Electronic generator: Ultrasonic generator work separately control transducers
Power supply: AC 110V/220V or 220/240V,
When ordinary trough cleaners cannot be used in certain specific work situations, submerged ultrasonic vibration plates can be used. The submerged vibrating plate can be designed into different shapes and sizes according to customer requirements. It is welded by the best stainless steel, which is resistant to acid and alkali, corrosion, easy to disassemble and easy to maintain.
Some models in this series of products are designated by many well-known pharmaceutical machine manufacturers. They have been put into use in the production lines of nearly a thousand pharmaceutical factories across the country, such as large infusion, oral liquid, water injection, powder injection, and syrup, and have been widely praised by users. !
In the extraction of traditional Chinese medicine, the ultrasonic circulation extraction technology has been widely used. Ultrasonic extraction uses the cavitation effect of ultrasonic waves to increase the penetration of solvents, increase the dissolution rate and the number of dissolutions, thereby increasing the diffusion of material components, shortening the extraction time, and accelerating the extraction process.
This series of products can be used in various cleaning lines, or the existing cleaning pool can be ultrasonically modified. It is widely used in automobiles, machinery, electronics, wine making, food, chemical, pharmaceutical, semiconductor manufacturing, magnetic materials, molds, electroplating, multi-arc ion plating, oil pump nozzles and many other industries. Example: The cleaning of large rubber molds such as tires, V-belts, timing belts, etc., can use an ultrasonic vibration box, combined with large stainless steel heating and washing.
Technical Parameters:
Ultrasonic vibration plate structure
1 All stainless steel structure, acid and alkali resistant, beautiful and durable.
2 It adopts a split structure, and a high-frequency connection with a socket is used between the vibration plate and the ultrasonic generator, which is convenient for use and maintenance. ?
3 Flexible installation and layout, according to different needs, it can be made into bottom shock type, side shock type and top shock type to meet various cleaning requirements.
4 Advantages of ultrasonic vibration plate. Easy to repair and maintain
5 When the power of the trough ultrasonic cleaning machine is too small, the throw-in vibration plate device can be used. If the existing cleaning tank can be added with a vibration plate device, it can be converted into an ultrasonic cleaning machine. Is also a low-cost way
Type Description
A.Mounting to tank wall with threaded duct nipple and fastening bracket. Cable through the tank wall.
B.Mounting to tank wall with threaded duct nipple and fixing nipple. Cable through the tank wall.
C.Mounting to tank wall with hanging hooks. Rigid stainless steel tube for cable over the tank top.
D.Mounting to tank wall with hanging hooks. Flexible metal armoured 1 m hose for cable over the tank top.
E.Mounting to tank bottom. Rigid stainless steel tube for cable through the tank wall.
F.Mounting to tank bottom. Rigid stainless steel tube for cable over the tank top.
G.Mounting to tank bottom. Flexible metal armoured 0,5 m hose for cable through the tank wall.
H. Mounting to tank bottom. Flexible metal armoured 1,5 m hose for cable over the tank top.
X.Non-standard mounting
Type | Diamention(mm) | Frequency (Khz) | Power(W) | Ultrasonic Transducer |
ARS-ZBH300W | 300*190*100 | 25,28,33,40,80,130 | 300 | 6 |
ARS-ZBH600W | 360*275*100 | 25,28,33,40,80,130 | 600 | 12 |
ARS-ZBH1000W | 450*350*100 | 25,28,33,40,80,130 | 1000 | 20 |
ARS-ZBH1200W | 470*380*100 | 25,28,33,40,80,130 | 1200 | 24 |
ARS-ZBH1500W | 520*450*100 | 25,28,33,40,80,130 | 1500 | 30 |
ARS-ZBH1800W | 560*450*100 | 25,28,33,40,80,130 | 1800 | 36 |
ARS-ZBH2000W | 650*450*100 | 25,28,33,40,80,130 | 2000 | 40 |
ARS-ZBH2400W | 740*520*100 | 25,28,33,40,80,130 | 2400 | 48 |
ARS-ZBH3000W | 820*540*100 | 25,28,33,40,80,130 | 3000 | 60 |
ARS-ZBH5000W | 1200*590*100 | 25,28,33,40,80,130 | 5000 | 100 |
Above are single frequency ultrasonic immersible transducer pack OEM Ultrasonic Immersible Transducer Pack(Size, Frequency,Power) | ||||
