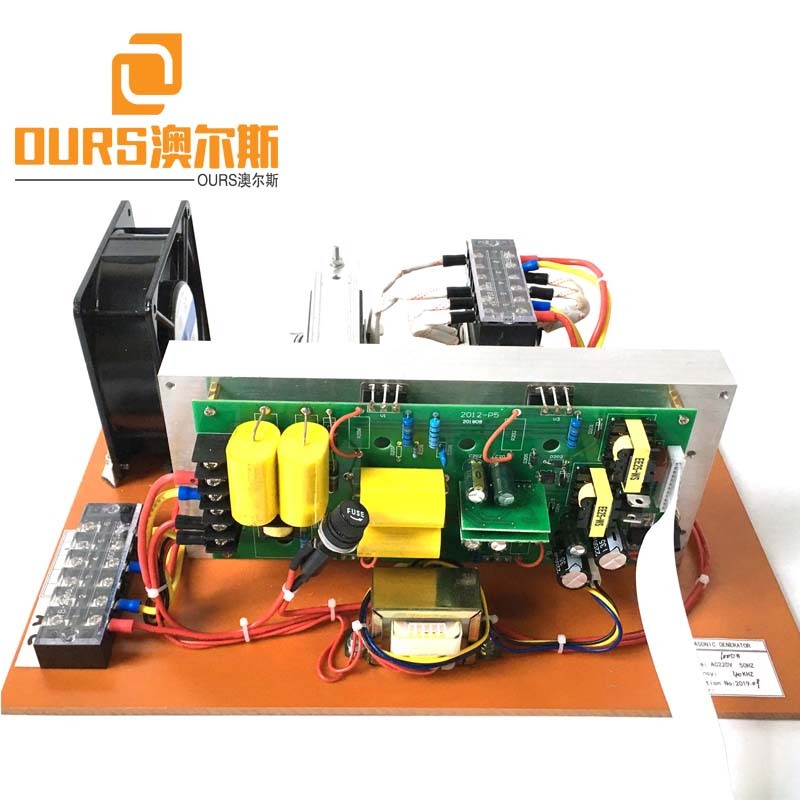

Hot Sales 2700W 28KHz ultrasonic piezo generator For Cleaning Mechanical Parts
Hot Sales 2700W 28KHz ultrasonic piezo generator For Cleaning Mechanical Parts
Hot Sales 2700W 28KHz ultrasonic piezo generator For Cleaning Mechanical Parts
Hot Sales 2700W 28KHz ultrasonic piezo generator For Cleaning Mechanical Parts
Hot Sales 2700W 28KHz ultrasonic piezo generator For Cleaning Mechanical Parts
Hot Sales 2700W 28KHz ultrasonic piezo generator For Cleaning Mechanical Parts
Hot Sales 2700W 28KHz ultrasonic piezo generator For Cleaning Mechanical Parts

Hot Sales 2700W 28KHz ultrasonic piezo generator For Cleaning Mechanical Parts

  • Item No.ARS-MBJ2700W
    MOQ1 Set
  • Product size45 x 42 x 26 m
    Product weight11 kg
Tag  wholesale

Available Options

Model Number
Add Request About This Product
Max file 5MB each
If lager file please send us email

Quantity:

From $310.00300.00280.00265.00 / Set
$310.00
You save $ -310.00
Trade Assuranceprotects your orders
On-time Dispatch Guarantee
On-time dispatch is guaranteed or you will be eligible to claim platform compensation.
Refund Policy
If the shipment is delayed or product quality differs from what are specified in the online order, you can claim for a refund.
Quick refund: If you can apply for a refund within two hours of making a payment, you will receive a refund immediately.

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

Quick Details
Warranty 1Years for Ultrasonic Generator PCB
Place of Origin CN;GUA
Application Ultrasonic Generator PCB for Ultrasonic Cleaner parts
Brand Name OURS ULTRASONIC
Frequceny28KHZ/40KHZ
Model Number ARS-MBJ2700W
Product name Ultrasonic Generator PCB
Service One-stop service for Ultrasonic Generator PCB
Namber of layer 1-layer for Ultrasonic Generator PCB
ConditionNew
Keyword ultrasonic generator pcb
Voltage 110v or 220v for Ultrasonic Generator PCB
After Warranty Service Video technical support
Local Service Location none
Showroom Location none
Video outgoing-inspection Provided
Machinery Test Report Not Available
Marketing Type Hot Product 2019
Applicable Industries Hotels
Power 2700W for Ultrasonic Generator PCB

Packaging & Delivery

Selling Units:
Set
Single package size:
45 x 42 x 26 m
Single gross weight:
11 kg

Hot Sales 2700W 28KHz ultrasonic piezo generator For Cleaning Mechanical Parts 1 (1).jpg

Ultrasonic Generators which adopts advanced high speed single chip microcomputer control technology and possess new circuit design theory,it is a new generation of multi-functional ultrasonic cleaning power.
The control box adopts high speed single chip microcomputer controlled digital frequency synthesis technology with half bridge circuit drive which is stable and low power loss.
Digital ultrasonic power is adjustable. Thus it is more flexible and more efficient.
Its complete protection function which include overheat alarm and over-current alarm make the work become more reliable.



Protection mode: vibration short circuit protection, leakage protection and other functions. The advanced circuit and complete structure are complemented by a sensitive and reliable integrated control system to ensure stable operation of the ultrasonic cleaner under various loads. The generator is small in size, novel in appearance and easy to operate. The product quality and technical level can be compared with similar foreign products. Once it is launched, it has received the attention of its peers and has been welcomed by the majority of users. Various ultrasonic generators can work independently, or multiple groups can be used in parallel to complete large-scale cleaning projects. The maintenance is simple, and the cooling fan is installed in the chassis to forcibly cool the wind to ensure the safety of long-term work. ,





The oscillating signal above the 20 kh frequency is amplified by the ultrasonic generator through the acoustic radiation that is vibrated through the clear medium. The high-pressure blasting, that is, the cavitation effect, causes the cleaning liquid molecules to vibrate and generate numerous tiny bubbles and generate thousands of atmospheres on the surface of the object. The dirt attached to the surface is automatically peeled off. There is no dead angle all-round cleaning, which is unmatched by other cleaning methods. And does not damage the surface of the workpiece.



Working voltage AC220±10V. It has protection measures such as overvoltage, overcurrent and output short circuit. The 220V ultrasonic circuit board has the functions of frequency fine adjustment and frequency automatic tracking, which can achieve the best results under different working conditions. The cleaning liquid is driven to form a fine reflow, so that the workpiece dirt is quickly taken away from the surface of the workpiece while being ultrasonically peeled off, thereby improving the cleaning efficiency. With power stepless adjustment function, the output power can achieve 10%-100% continuous adjustment to meet the requirements of various cleaning objects, and can also set time timing and safe operation.


Its accurate timer which calculate results has four numbers, guarantee the quality of your work.
The screen can display status of work mode,frequency or current according to your requirement.



Ultrasonic circuit board has excellent frequency control accuracy. The power drive adopts imported power module, wide tracking frequency, adaptive output load, high efficiency, excellent energy saving, small size, high power and high integration. The structure is reasonable, easy to ventilate and heat, has over-current and over-voltage protection functions, and has good continuous operation reliability. Adaptive various forms of transducers.



1. The ultrasonic circuit board adopts advanced technologies such as its excitation circuit, frequency automatic tracking and frequency sweeping working mode under microcomputer control. Compared with the traditional control box, it has stable and reliable operation and continuously adjustable ultrasonic power, which can maximize the potential of the transducer.

2. The operating frequency of the ultrasonic circuit board is automatically tracked to make the output match better, the power is stronger and the efficiency is higher.

3. The unique frequency sweeping mode of the ultrasonic circuit board enables the cleaning liquid to form a small reflow under the action of the sweeping frequency, and timely remove the dirt stripped from the ultrasonic surface away from the surface of the workpiece, thereby achieving a faster and more thorough cleaning effect. Ultrasonic cleaning is more efficient.



First, the advantage of the product

1, suitable for a small number of single transducers or less than 30 transducers.
2, small volume, easy to install inside the washing machine shell or distribution cabinet.
3. It is suitable for all kinds of small or micro cleaning machines.
4, the technology is stable and mature, and the similar microgenerator has the longest service life.
Two. The characteristics of the product:
1. All the power output components IGBT are imported devices, with the advantages of small size, high power and fast response.
2, power pipe: adopt imported Japanese Toshiba 90A/1200V import pipe to eliminate the possibility of burning pipe.
3, the latest excitation control circuit, the output power of up to 93%, so that the ultrasonic cavitation density has been greatly improved.
4, the output current is sine wave, which can extend the life of transducer and generator itself.
5, wide range sweep frequency: 20KHZ - 50KHZ adjustable, suitable for all kinds of transducers.
6, power adjustable function;
7. Current display function;
