Quick Details
Frequency 28khz for Ultrasonic Cleaning Transducer
Length(mm) 66mm for Ultrasonic Cleaning Transducer
Place of Origin CN;GUA
Usage Vibration Sensor for Ultrasonic Cleaning Transducer
Brand Name OURS ULTRASONIC
customized Acceptable for Ultrasonic Cleaning Transducer
Piezoceramic PZT-8 Yellow for Ultrasonic Cleaning Transducer
Feature Long Life Low Cost for Ultrasonic Cleaning Transducer
Product name Ultrasonic Cleaning Transducer
Weight(g) 625g for Ultrasonic Cleaning Transducer
ConditionNew
After Warranty Service Video technical support
Local Service Location None
Showroom Location None
Material Stainless Steel for Ultrasonic Cleaning Transducer
Video outgoing-inspection Provided
Machinery Test Report Provided
Marketing Type Hot Product 2019
Applicable Industries Hotels
Power 100w for Ultrasonic Cleaning Transducer

Packaging & Delivery

Selling Units:
Piece
Single package size:
20 x 20 x 15 cm
Single gross weight:
2 kg

Hot Sales 28KHZ 100W PZT4 or PZT8 Piezoelectric Ultrasonic Transducer For Submersible Ultrasonic Transducer




The mechanism of ultrasonic cleaning is to make use of the physical effects such as cavitation, radiation pressure and sound flow in the cleaning liquid. It can exfoliate the machinery produced by the dirt on the cleaning parts, and can also promote the chemical reaction between the cleaning liquid and the dirt, so as to achieve the purpose of cleaning the object. The frequency of the ultrasonic cleaning machine can be selected by 10~500 kHz according to the size and purpose of the cleaning material, generally more than 20~50 kHz. With the increase of the frequency of ultrasonic transducer, Langerhans oscillator, longitudinal oscillator and thickness oscillator can be used. In the miniaturization aspect, radial vibration and flexural vibration are also adopted. Ultrasonic cleaning has become more and more widely used in various industries, agriculture, household equipment, electronics, automobile, rubber, printing, aircraft, food, hospital and medical research.



The inside of the vibration plate is composed of ultrasonic vibrators. When the working frequency of the cleaning machine is very low (within the range of human hearing), noise will be generated. When the frequency is lower than 20kHz, the working noise not only becomes very loud, but may exceed the safety noise limit stipulated by the Occupational Safety and Health Law or other regulations. In applications that require high power to remove dirt without considering the surface damage of the workpiece, a lower cleaning machine frequency in the range of 20kHz to 40kHz is usually selected. The cleaning frequency in this frequency range is often used to clean large, heavy parts or high-density materials. The ultrasonic vibrators produced by Boda Ultrasonic have two fixed low-frequency ultrasonic vibrators of 28KHZ and 40KHZ.

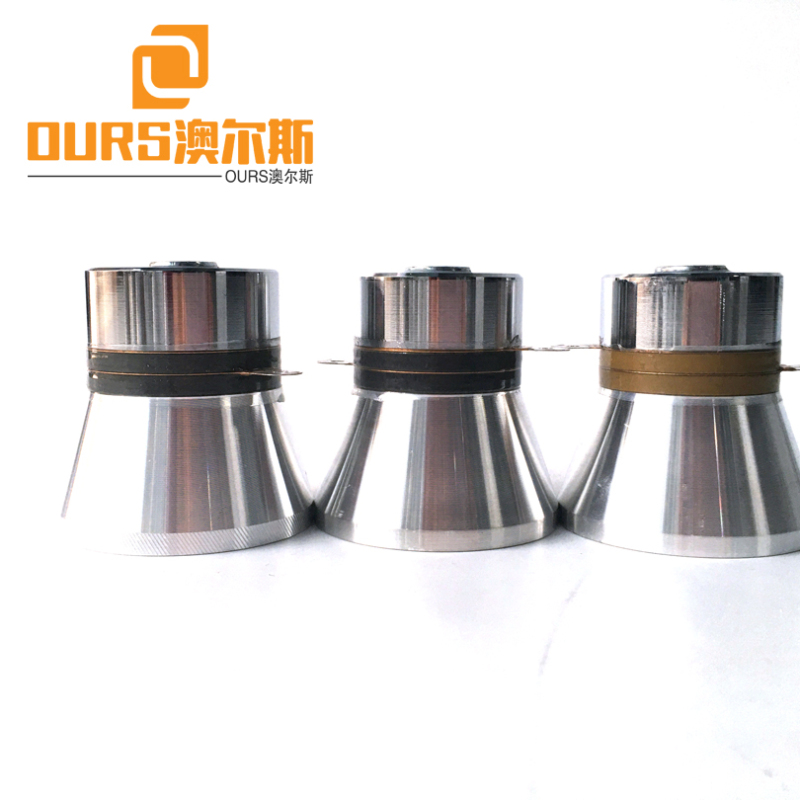

The transducer uses different piezoelectric materials to explain that:
The black chip is P4 series, which is a medium power emitting material with dual transmitting and receiving characteristics.
With low dielectric loss and high mechanical quality factor, it is mainly used in ultrasonic cleaning, ultrasonic atomization and so on.
The Yellow chip is P8 series, which is a high-power emission material with high mechanical quality factor.
Good stability, very low dielectric loss, especially suitable for making high-power ultrasonic transducers. Widely used in
Ultrasonic welding, ultrasonic emulsification, ultrasonic polishing, ultrasonic cleaning and so on.

Main Features:

  • High Q value.
  • Large amplitude.
  • High conversion frequency, low heat.
  • Output is stable.
  • Strict quality control.





Type

Length(mm)

Weight(g)

Frequency(KHz)

Resonance Impedance
(Ω)

Static Capacity
(pF)±10%

Input Power(W)

ARS-QXHNQ20100
PZT-8

94

900

20

10-20

5200

100

ARS-QXHNQ25100
PZT-4

77

710

25

10-20

6600

100

ARS-QXHNQ28100
PZT-8

66

625

28

10-20

5200

100

ARS-QXHNQ28100
PZT-4

66

624

28

10-20

6600

100

ARS-QXHNQ30100
PZT-8

61

555

30

10-20

5200

100

ARS-QXHNQ2560
PZT-4

77

530

25

10-20

5400

60

ARS-QXHNQ2860
PZT-8

68

470

28

10-20

3800

60

ARS-QXHNQ2850
PZT-4

82

425

28

10-20

4100

50

ARS-QXHNQ3360
PZT-8

58

420

33

10-20

3800

60
