Hot Sales 28KHZ 1200W ultrasonic transducer driver circuit For Ultrasonic Washing System
1-49 Set
$220.00
50 -99 Set
$210.00
100 -499 Set
$200.00
≥ 500 Set
$185.00
- Item No.ARS-MBJ1200WMOQ1 Set
- Product size45 x 40 x 26 mProduct weight12 kg
Choice
Quantity:
If you have your own design, please contact us, there will have a professional customer service to communicate with you.
Don't have your files right now?No worries, Check out our art tips for more information.
If over 500pcs, mass production will start until pre-production sample has been approved.
Est. 7 days production

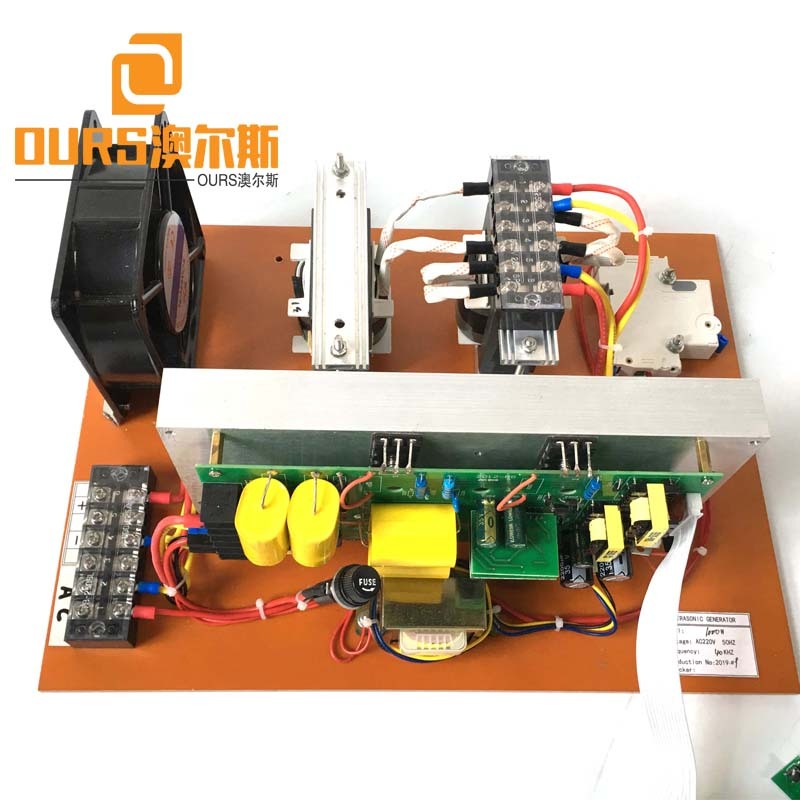

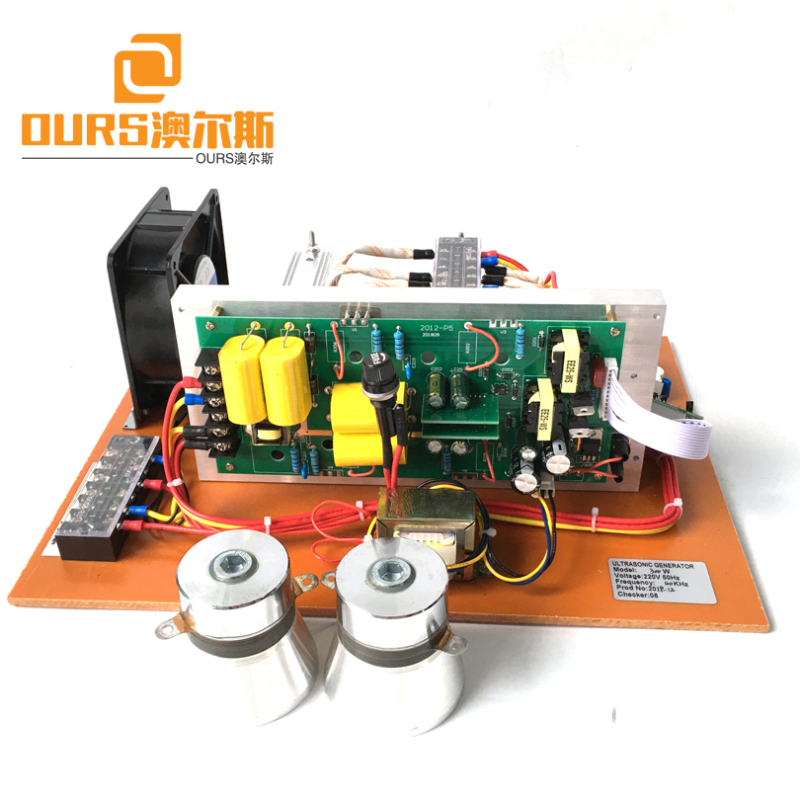

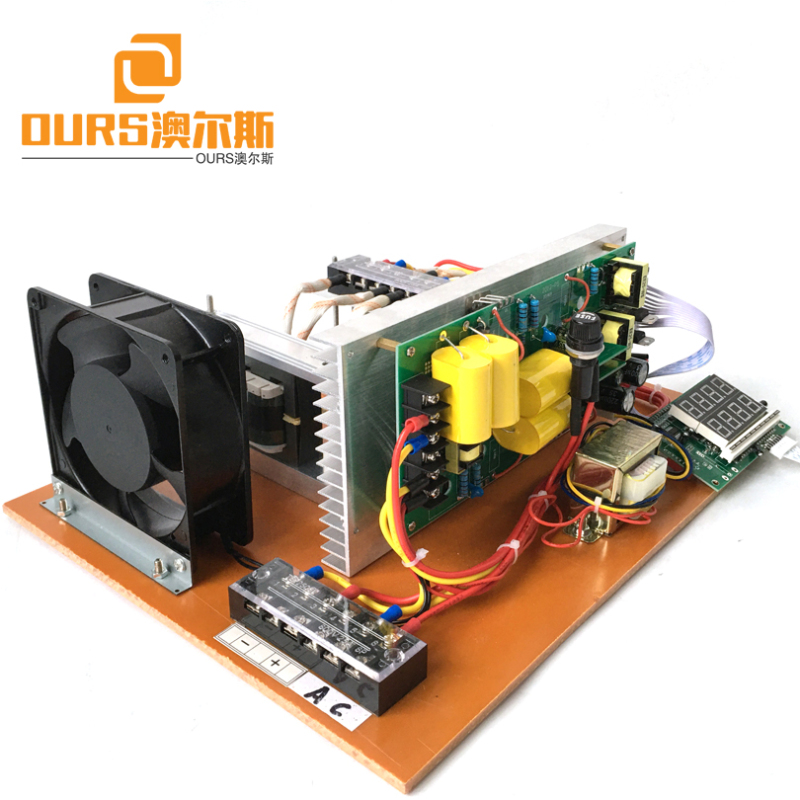

Hot Sales 28KHZ 1200W ultrasonic transducer driver circuit For Ultrasonic Washing System
Ultrasonic Generators which adopts advanced high speed single chip microcomputer control technology and possess new circuit design theory,it is a new generation of multi-functional ultrasonic cleaning power.
The control box adopts high speed single chip microcomputer controlled digital frequency synthesis technology with half bridge circuit drive which is stable and low power loss.Digital ultrasonic power is adjustable. Thus it is more flexible and more efficient.Its complete protection function which include overheat alarm and over-current alarm make the work become more reliable.Its accurate timer which calculate results has four numbers, guarantee the quality of your work.
The screen can display status of work mode,frequency or current according to your requirement.
1, suitable for a small number of single transducers or less than 6 transducers.
2, small volume, easy to install inside the washing machine shell or distribution cabinet.
3. It is suitable for all kinds of small or micro cleaning machines.
4, the technology is stable and mature, and the similar microgenerator has the longest service life.
Type | Frequency | Power | Dimension(mm) |
ARS-MBJ300 | 19khz-48khz adjustable | 300W | 350×300×140mm |
ARS-MBJ600 | 19khz-48khz adjustable | 600W | 350×300×140mm |
ARS-MBJ900 | 19khz-48khz adjustable | 900W | 350×300×140mm |
ARS-MBJ1000 | 19khz-48khz adjustable | 1000W | 350×300×140mm |
ARS-MBJ1200 | 19khz-48khz adjustable | 1200W | 350×300×140mm |
ARS-MBJ1300 | 19khz-48khz adjustable | 1300W | 350×300×140mm |
ARS-MBJ1500 | 19khz-48khz adjustable | 1500W | 350×300×140mm |
ARS-MBJ1800 | 19khz-48khz adjustable | 1800W | 350×300×140mm |
ARS-MBJ2000 | 19khz-48khz adjustable | 2000W | 350×300×140mm |
ARS-MBJ2400 | 19khz-48khz adjustable | 2400W | 350×300×140mm |
ARS-MBJ2500 | 19khz-48khz adjustable | 2500W | 350×300×140mm |
ARS-MBJ2600 | 19khz-48khz adjustable | 2600W | 350×300×140mm |
ARS-MBJ2800 | 19khz-48khz adjustable | 2800W | 350×300×140mm |
ARS-MBJ3000 | 19khz-48khz adjustable | 3000W | 350×300×140mm |
Ultrasonic PCB generator could to 3000W,welcome send the enquire 600W-3000W Ultrasonic PCB frequency adjustable,withdisplay board Above ultrasonic PCB generator 110V-120V or 220V-240V are available,contact with us during your order with detail request | |||
