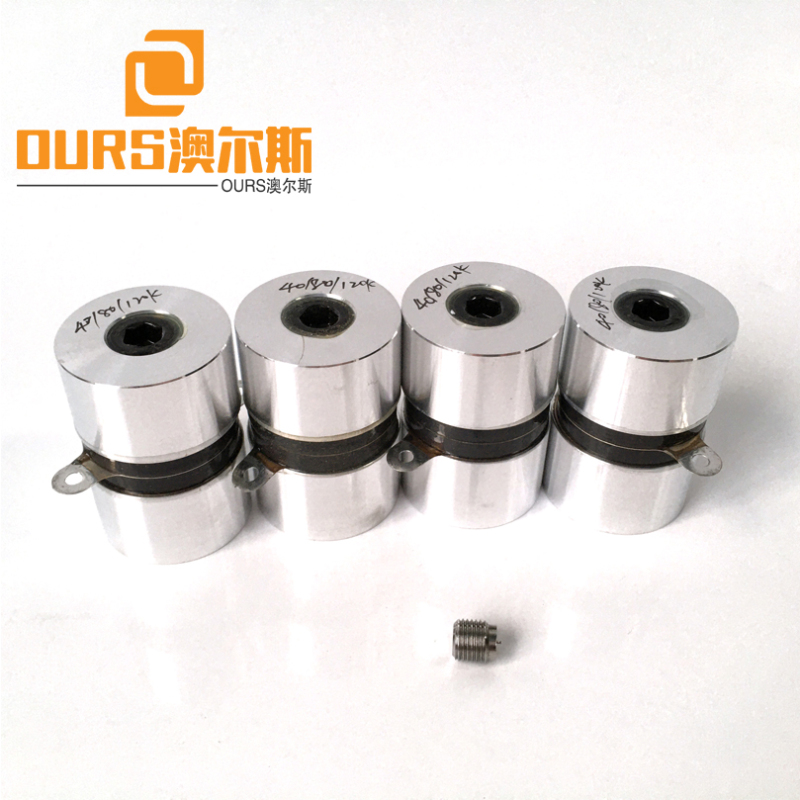

Hot Sales 40K80K120K 40W PZT-4 Multi-Frequency Industrial Cleaner Transducer Elements

Message

$25.00

Have chosenThere are no options selected.

*Model Number
Start To Order

Add To Cart Successfully!

SEND INQUIRY
Hot Sales 40K80K120K 40W PZT-4 Multi-Frequency Industrial Cleaner Transducer Elements
Hot Sales 40K80K120K 40W PZT-4 Multi-Frequency Industrial Cleaner Transducer Elements
Hot Sales 40K80K120K 40W PZT-4 Multi-Frequency Industrial Cleaner Transducer Elements
Hot Sales 40K80K120K 40W PZT-4 Multi-Frequency Industrial Cleaner Transducer Elements
Hot Sales 40K80K120K 40W PZT-4 Multi-Frequency Industrial Cleaner Transducer Elements
Hot Sales 40K80K120K 40W PZT-4 Multi-Frequency Industrial Cleaner Transducer Elements
Hot Sales 40K80K120K 40W PZT-4 Multi-Frequency Industrial Cleaner Transducer Elements

Hot Sales 40K80K120K 40W PZT-4 Multi-Frequency Industrial Cleaner Transducer Elements

  • Item No.20201104cd01e
    MOQ1 Piece
  • Product size20 x 15 x 15 m
    Product weight2 kg
Tag  wholesale

Available Options

Model Number
Add Request About This Product
Max file 5MB each
If lager file please send us email

Quantity:

From $25.0022.00 / Piece
$25.00
You save $ -25.00
Trade Assuranceprotects your orders
On-time Dispatch Guarantee
On-time dispatch is guaranteed or you will be eligible to claim platform compensation.
Refund Policy
If the shipment is delayed or product quality differs from what are specified in the online order, you can claim for a refund.
Quick refund: If you can apply for a refund within two hours of making a payment, you will receive a refund immediately.

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

Quick Details
Frequency40K80K120K
Name Ultrasonic Cavitation Transducer
Place of Origin CN;GUA
Usage Vibration Sensor for Ultrasonic Cleaning Transducer
ApplicationWashing
Brand Name OURS ULTRASONIC
customized Acceptable for Ultrasonic Cleaning Transducer
Feature Long Life Low Cost for Ultrasonic Cleaning Transducer
Product name Ultrasonic Cleaning Transducer
Use Ultrasonic Transducer Driver
ConditionNew
Keyword ultrasonic cleaning
After Warranty Service Video technical support
Local Service Location none
Showroom Location none
Material Stainless Steel for Ultrasonic Cleaning Transducer
Applicable Industries Hotels

Packaging & Delivery

Selling Units:
Piece
Single package size:
20 x 15 x 15 m
Single gross weight:
2 kg

Hot Sales 40K80K120K 40W PZT-4 Multi-Frequency Industrial Cleaner Transducer Elements


The mechanism of ultrasonic cleaning is to make use of the physical effects such as cavitation, radiation pressure and sound flow in the cleaning liquid. It can exfoliate the machinery produced by the dirt on the cleaning parts, and can also promote the chemical reaction between the cleaning liquid and the dirt, so as to achieve the purpose of cleaning the object. The frequency of the ultrasonic cleaning machine can be selected by 10~500 kHz according to the size and purpose of the cleaning material, generally more than 20~50 kHz. With the increase of the frequency of ultrasonic transducer, Langerhans oscillator, longitudinal oscillator and thickness oscillator can be used. In the miniaturization aspect, radial vibration and flexural vibration are also adopted. Ultrasonic cleaning has become more and more widely used in various industries, agriculture, household equipment, electronics, automobile, rubber, printing, aircraft, food, hospital and medical research.



An ultrasonic vibrator, also called an ultrasonic vibrating head, is an ultrasonic transducer. It is the core component of an ultrasonic cleaning machine. We call the entire ultrasonic transducer and horn a vibrator. The ultrasonic transducer is one of the important components in the ultrasonic cleaning machine and the ultrasonic vibration plate, which largely determines the quality of the ultrasonic effect.
Based on many years of ultrasonic cleaning experience, our company provides professional ultrasonic transducers with stable quality, high efficiency output and affordable price in combination with the opinions and feedbacks of customers.
The ultrasonic transducer is a device that converts high-frequency electrical energy into mechanical vibration. The high-frequency electrical energy input by the ultrasonic generator matches the piezoelectric ceramic piece with the resonant frequency of the ultrasonic transducer. The electrical energy is converted by the piezoelectric effect of the material. It is transformed into mechanical vibration, that is, ultrasonic vibration, which is then transmitted to the aqueous medium through the ultrasonic transducer, forming negative pressure bubbles and shock waves in the water, and transmitting in the tax-based solution, thereby achieving the effect of cleaning the surface of the workpiece. The transducer is mainly composed of an aluminum block, a piezoelectric ceramic sheet, and an insulating layer.

28KHZ / 40KHZ / 25KHZ / 68KHZ / 80KHZ / 120KHZ / 200KHZ and other ultrasonic transducers (ultrasonic transducers) are widely used in the electronics industry, machinery industry, automotive, electroplating, chemical fiber,
Optics, bearings and other industries. Such as cleaning magnetic cores, grease nipples, auto parts, electroplated hardware tools, chemical fiber spinnerets, optical lenses, bearings, tools, tableware, medical equipment, precision hardware, watch parts, gold and silver jewelry, and electronic components. This frequency vibration is strong and the density is uniform.It can quickly achieve the purpose of oil removal, sodium removal, decontamination, and descaling. In addition, it can also be used in chemical experiments to achieve catalysis, stirring, and rapid generator chemical reaction.



The transducer uses different piezoelectric materials to explain that:
The black chip is P4 series, which is a medium power emitting material with dual transmitting and receiving characteristics.
With low dielectric loss and high mechanical quality factor, it is mainly used in ultrasonic cleaning, ultrasonic atomization and so on.
The Yellow chip is P8 series, which is a high-power emission material with high mechanical quality factor.
Good stability, very low dielectric loss, especially suitable for making high-power ultrasonic transducers. Widely used in
Ultrasonic welding, ultrasonic emulsification, ultrasonic polishing, ultrasonic cleaning and so on.

Main Features:

  • High Q value.
  • Large amplitude.
  • High conversion frequency, low heat.
  • Output is stable.
  • Strict quality control.



Specification List
ModelFrequency  CapacitanceResonance Impedance   Size Power Insulation resistance
(KHz)(pF)(Ω) Radiation head*Height (mm)(W)(2500VDC)
ARS-8QXHNQ-254040±0.83100±10%≤30Ω25*5820w≥100MΩ
ARS-8QXHNQ-28K/40K60W28/40±1.03800±10%≤30Ω65*7060w≥100MΩ
ARS-8QXHNQ-40K/130K20W40/130±2.03100±10%≤30Ω25*5820w≥100MΩ
ARS-4QXHNQ-40K/68K50W38/66±2.04800±10%≤20Ω50*6550w≥100MΩ
ARS-4QXHNQ-40K/80K/130K60W40/80/130±2.04200±10%≤25Ω40*5460w≥100MΩ
ARS-4QXHNQ-40/60/806038/65/84±2.04800±10%≤25Ω40*5460w≥100MΩ
ARS-8QXHNQ-20K/40K/60K120W20/40/60±2.05200±10%≤25Ω78*94120w≥100MΩ
ARS-4QXHNQ-38K/100K/160K60W38/100/160±2.04800±10%≤25Ω40*5760w≥100MΩ
Screw hole size (diameter * pitch * depth)M10*1.0*10













 1
