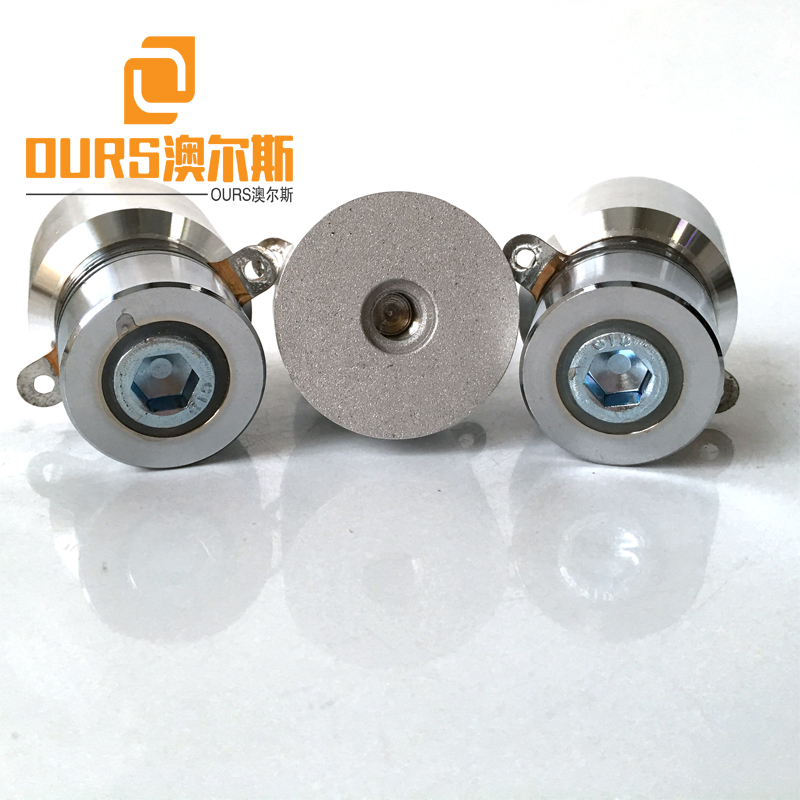

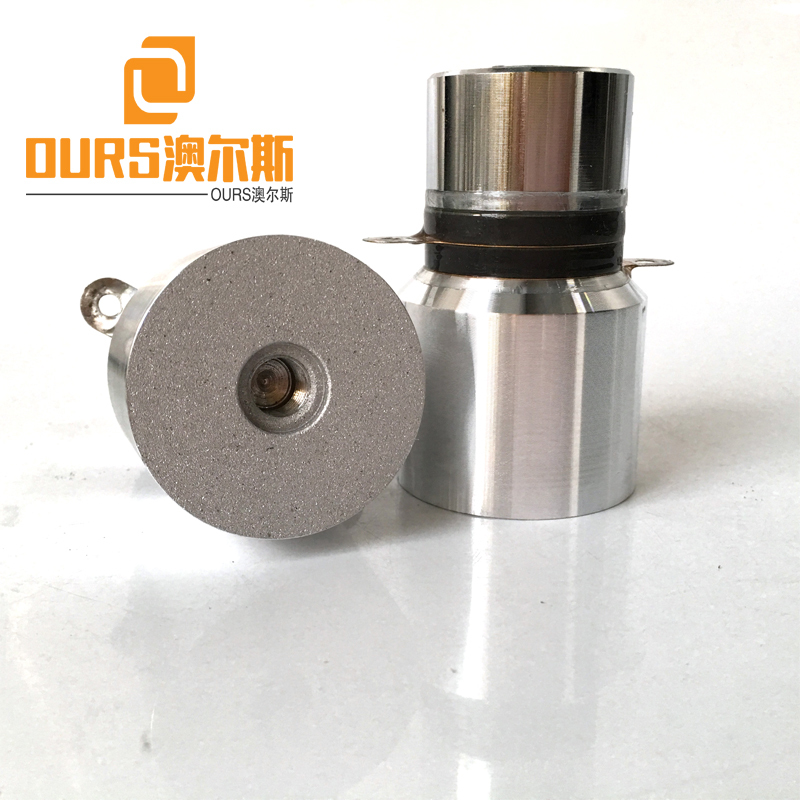

Hot Sales Columnar 50W 28KHZ PZT4 Ultrasonic Cleaning Transducer For Ultrasonic Generator

Message

$6.50

Have chosenThere are no options selected.

*Model Number
Start To Order

Add To Cart Successfully!

SEND INQUIRY
Hot Sales Columnar 50W 28KHZ PZT4  Ultrasonic Cleaning Transducer For Ultrasonic Generator
Hot Sales Columnar 50W 28KHZ PZT4  Ultrasonic Cleaning Transducer For Ultrasonic Generator
Hot Sales Columnar 50W 28KHZ PZT4  Ultrasonic Cleaning Transducer For Ultrasonic Generator
Hot Sales Columnar 50W 28KHZ PZT4  Ultrasonic Cleaning Transducer For Ultrasonic Generator
Hot Sales Columnar 50W 28KHZ PZT4  Ultrasonic Cleaning Transducer For Ultrasonic Generator
Hot Sales Columnar 50W 28KHZ PZT4  Ultrasonic Cleaning Transducer For Ultrasonic Generator
Hot Sales Columnar 50W 28KHZ PZT4  Ultrasonic Cleaning Transducer For Ultrasonic Generator

Hot Sales Columnar 50W 28KHZ PZT4 Ultrasonic Cleaning Transducer For Ultrasonic Generator

  • Item No.202101124c860
    MOQ1 Piece
  • Product size20 x 20 x 15 cm
    Product weight2 kg
Tag  wholesale

Available Options

Model Number
Add Request About This Product
Max file 5MB each
If lager file please send us email

Quantity:

From $6.506.005.50 / Piece
$6.50
You save $ -6.50
Trade Assuranceprotects your orders
On-time Dispatch Guarantee
On-time dispatch is guaranteed or you will be eligible to claim platform compensation.
Refund Policy
If the shipment is delayed or product quality differs from what are specified in the online order, you can claim for a refund.
Quick refund: If you can apply for a refund within two hours of making a payment, you will receive a refund immediately.

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

Quick Details
Frequency 28khz for Ultrasonic cleaning Transducer
Length(mm) 82mm for Ultrasonic cleaning Transducer
Place of Origin CN;GUA
Usage Vibration Sensor for Ultrasonic cleaning Transducer
Brand Name OURS ULTRASONIC
customized Acceptable for Ultrasonic cleaning Transducer
Feature Long Life Low Cost for Ultrasonic cleaning Transducer
Product name Ultrasonic Cleaning Transducer
Weight(g) 425g for Ultrasonic cleaning Transducer
ConditionNew
After Warranty Service Video technical support
Local Service Location None
Showroom Location None
Material Stainless Steel for Ultrasonic cleaning Transducer
Video outgoing-inspection Provided
Machinery Test Report Provided
Marketing Type Hot Product 2019
Spray pattern 360 for Ultrasonic cleaning Transducer
Applicable Industries Hotels
Power50w

Packaging & Delivery

Selling Units:
Piece
Single package size:
20 x 20 x 15 cm
Single gross weight:
2 kg

Hot Sales Columnar 50W 28KHZ PZT4  Ultrasonic Cleaning Transducer For Ultrasonic Generator




The mechanism of ultrasonic cleaning is to make use of the physical effects such as cavitation, radiation pressure and sound flow in the cleaning liquid. It can exfoliate the machinery produced by the dirt on the cleaning parts, and can also promote the chemical reaction between the cleaning liquid and the dirt, so as to achieve the purpose of cleaning the object. The frequency of the ultrasonic cleaning machine can be selected by 10~500 kHz according to the size and purpose of the cleaning material, generally more than 20~50 kHz. With the increase of the frequency of ultrasonic transducer, Langerhans oscillator, longitudinal oscillator and thickness oscillator can be used. In the miniaturization aspect, radial vibration and flexural vibration are also adopted. Ultrasonic cleaning has become more and more widely used in various industries, agriculture, household equipment, electronics, automobile, rubber, printing, aircraft, food, hospital and medical research.



The company mainly produces ultrasonic equipment, ultrasonic accessories, ultrasonic cleaner, non-standard ultrasound, ultrasonic transducer, ultrasonic generator, ultrasonic vibration plate, etc. The company has a complete and scientific quality management system. With integrity, strength, product quality and high quality service, it has been recognized by the industry. Welcome friends from all walks of life to visit our company, guidance and business negotiation.
Ultrasound cleaning is precisely through the transducer generated by the ultrasonic vibration, cavitation effect in the water produced by the instantaneous high-pressure cavitation, impact the cleaned object and achieve good cleaning effect.
Ultrasound cleaning transducer is a kind of medium power transducer which works continuously. Usually, the average value of continuous work is used to calculate and constant its power.

Features:
1. Low heat
2. Good thermal stability
3. Frequency and static capacitance consistency strong.
4. Resonance impedance is low.
5. The average length of life.
6. It can be widely used in a variety of ultrasonic cleaning equipment.
7. High performance: mechanical Q value, high vibration efficiency, high amplitude



The transducer uses different piezoelectric materials to explain that:
The black chip is P4 series, which is a medium power emitting material with dual transmitting and receiving characteristics.
With low dielectric loss and high mechanical quality factor, it is mainly used in ultrasonic cleaning, ultrasonic atomization and so on.
The Yellow chip is P8 series, which is a high-power emission material with high mechanical quality factor.
Good stability, very low dielectric loss, especially suitable for making high-power ultrasonic transducers. Widely used in
Ultrasonic welding, ultrasonic emulsification, ultrasonic polishing, ultrasonic cleaning and so on.

Main Features:

  • High Q value.
  • Large amplitude.
  • High conversion frequency, low heat.
  • Output is stable.
  • Strict quality control.



Type

Length(mm)

Weight(g)

Frequency(KHz)

Resonance Impedance
(Ω)

Static Capacity
(pF)±10%

Input Power(W)

ARS-QXHNQ20100
PZT-8

94

900

20

10-20

5200

100

ARS-QXHNQ25100
PZT-4

77

710

25

10-20

6600

100

ARS-QXHNQ28100
PZT-8

66

625

28

10-20

5200

100

ARS-QXHNQ28100
PZT-4

66

624

28

10-20

6600

100

ARS-QXHNQ30100
PZT-8

61

555

30

10-20

5200

100

ARS-QXHNQ2560
PZT-4

77

530

25

10-20

5400

60

ARS-QXHNQ2860
PZT-8

68

470

28

10-20

3800

60

ARS-QXHNQ2850
PZT-4

82

425

28

10-20

4100

50

ARS-QXHNQ3360
PZT-8

58

420

33

10-20

3800

60




























Why choose us and About us



Certification









 IMG20180605174004IMG20180606162027IMG20180620181644
