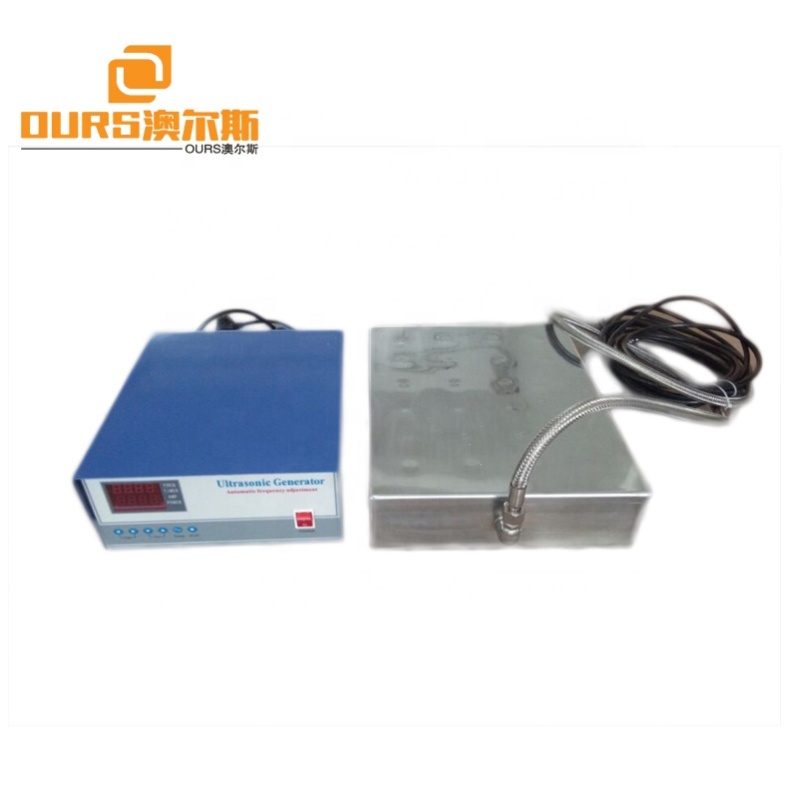

OURS Manufacture Ultrasound Transducer Cleaner Plate,Ultrasonic Vibration Generator With Vibrating Plate

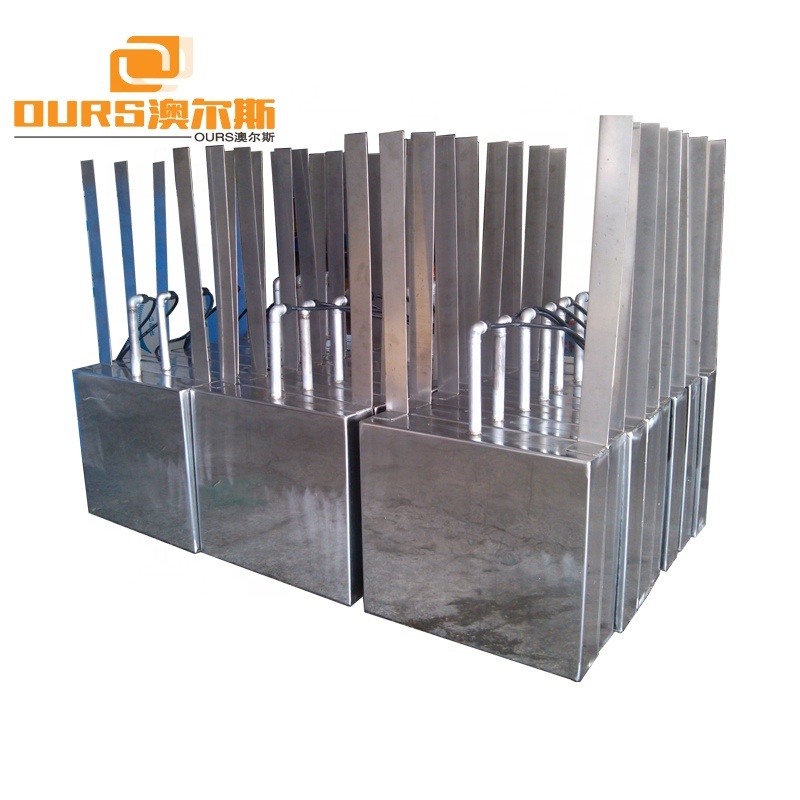

Ultrasonic Immersible Transducer Pack also called the inputting type ultrasonic vibration plates, this product is suitable for cleaning electroplating parts before cleaning, horologe parts, hardware machinery parts, polyester filtering cores, semiconductor wafer, tools, lens, frames, jewellery, glass, utensils and other industries, wide application.
Type Description
A.Mounting to tank wall with threaded duct nipple and fastening bracket. Cable through the tank wall.
B.Mounting to tank wall with threaded duct nipple and fixing nipple. Cable through the tank wall.
C.Mounting to tank wall with hanging hooks. Rigid stainless steel tube for cable over the tank top.
D.Mounting to tank wall with hanging hooks. Flexible metal armoured 1 m hose for cable over the tank top.
E.Mounting to tank bottom. Rigid stainless steel tube for cable through the tank wall.
F.Mounting to tank bottom. Rigid stainless steel tube for cable over the tank top.
G.Mounting to tank bottom. Flexible metal armoured 0,5 m hose for cable through the tank wall.
H. Mounting to tank bottom. Flexible metal armoured 1,5 m hose for cable over the tank top.
X.Non-standard mounting
OURS Manufacture Ultrasound Transducer Cleaner Plate,Ultrasonic Vibration Generator With Vibrating Plate
Type | Diamention(mm) | Frequency (Khz) | Power(W) | Ultrasonic Transducer |
ARS-ZBH300W | 300*190*100 | 25,28,33,40,80,130 | 300 | 6 |
ARS-ZBH600W | 360*275*100 | 25,28,33,40,80,130 | 600 | 12 |
ARS-ZBH1000W | 450*350*100 | 25,28,33,40,80,130 | 1000 | 20 |
ARS-ZBH1200W | 470*380*100 | 25,28,33,40,80,130 | 1200 | 24 |
ARS-ZBH1500W | 520*450*100 | 25,28,33,40,80,130 | 1500 | 30 |
ARS-ZBH1800W | 560*450*100 | 25,28,33,40,80,130 | 1800 | 36 |
ARS-ZBH2000W | 650*450*100 | 25,28,33,40,80,130 | 2000 | 40 |
ARS-ZBH2400W | 740*520*100 | 25,28,33,40,80,130 | 2400 | 48 |
ARS-ZBH3000W | 820*540*100 | 25,28,33,40,80,130 | 3000 | 60 |
ARS-ZBH5000W | 1200*590*100 | 25,28,33,40,80,130 | 5000 | 100 |
Above are single frequency ultrasonic immersible transducer pack OEM Ultrasonic Immersible Transducer Pack(Size, Frequency,Power) |
