OURS Ultrasonic Cleaner Goods 28KHZ Immersible Ultrasonic Transducer Pack For Vibration Wave Heavy Duty Oil Removing

02Specification

Ultrasonic Immersible Transducer Pack also called the inputting type ultrasonic vibration plates, this product is suitable for cleaning electroplating parts before cleaning, horologe parts, hardware machinery parts, polyester filtering cores, semiconductor wafer, tools, lens, frames, jewellery, glass, utensils and other industries, wide application.



Principle:

The working principle of the ultrasonic vibrating plate box is that the ultrasonic generator generates super-audio electric energy higher than 20KHZ, and the transducer is converted into the same frequency mechanical vibration into the cleaning liquid, and the ultrasonic conduction is forward and forward, which generates numerous tiny bubbles. These bubbles are formed and grown in the negative pressure region in which the ultrasonic waves propagate longitudinally, and rapidly rupture in the positive pressure region. The formation, growth, and rapid rupture of such tiny bubbles are called "cavitation effects." In the cavitation effect, the instantaneous high pressure of more than 10,000 atmospheres is generated after the bubble bursts, and the instantaneous high pressure continuously generated is like a series of small explosions continuously bombarding the surface of the object, so that the surface of the object quickly falls off.



Ultrasonic Immersible Transducer Pack features:

1) The ultrasonic generator adopts the most advanced eighth-generation frequency-tracking technology, which is domestically leading. The transducer adopts Japanese wafer technology, with strong cleaning power and stable performance.

2) The vibration surface of the vibration plate is made of SUS304 stainless steel, and the surface is hard chrome plated. It is acid and alkali resistant and has a beautiful appearance.

3) Split structure design, easy to install and use, easy to maintain, suitable for a variety of cleaning requirements.

4) The overall bending forming, straight seam double-sided protective welding, small deformation, completely leak-proof.

5) Shape, power lead-out mode, fixed position can be customized according to needs.



Type Description of Ultrasonic immersible transducer pack:
A
 Mounting to tank wall with threaded duct nipple and fastening bracket. Cable through the tank wall.
B
 Mounting to tank wall with threaded duct nipple and fixing nipple. Cable through the tank wall.
C
 Mounting to tank wall with hanging hooks. Rigid stainless steel tube for cable over the tank top.
D
 Mounting to tank wall with hanging hooks. Flexible metal armoured 1 m hose for cable over the tank top.
E
 Mounting to tank bottom. Rigid stainless steel tube for cable through the tank wall.
F
 Mounting to tank bottom. Rigid stainless steel tube for cable over the tank top.
G
 Mounting to tank bottom. Flexible metal armoured 0,5 m hose for cable through the tank wall.
H
 Mounting to tank bottom. Flexible metal armoured 1,5 m hose for cable over the tank top.
X
 Non-standard mounting

Type

Diamention(mm)

Frequency (Khz)

Power(W)

Ultrasonic Transducer

ARS-ZBH300W

300*190*100

25,28,33,40,80,130

300

6

ARS-ZBH600W

360*275*100

25,28,33,40,80,130

600

12

ARS-ZBH1000W

450*350*100

25,28,33,40,80,130

1000

20

ARS-ZBH1200W

470*380*100

25,28,33,40,80,130

1200

24

ARS-ZBH1500W

520*450*100

25,28,33,40,80,130

1500

30

ARS-ZBH1800W

560*450*100

25,28,33,40,80,130

1800

36

ARS-ZBH2000W

650*450*100

25,28,33,40,80,130

2000

40

ARS-ZBH2400W

740*520*100

25,28,33,40,80,130

2400

48

ARS-ZBH3000W

820*540*100

25,28,33,40,80,130

3000

60

ARS-ZBH5000W

1200*590*100

25,28,33,40,80,130

5000

100

Above are single frequency ultrasonic immersible transducer pack OEM Ultrasonic Immersible Transducer Pack(Size, Frequency,Power)

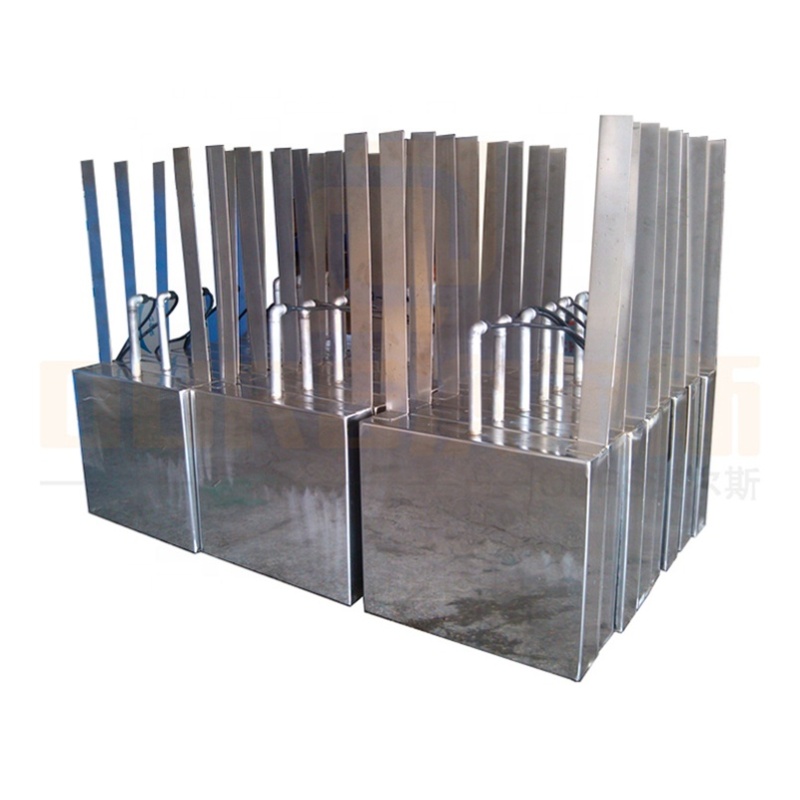

04Product display
