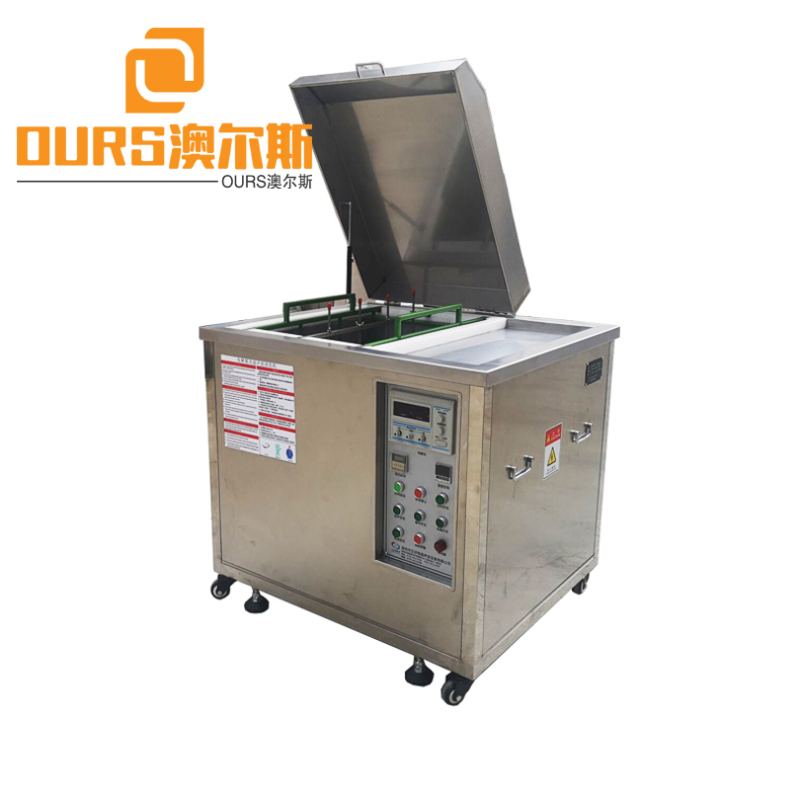

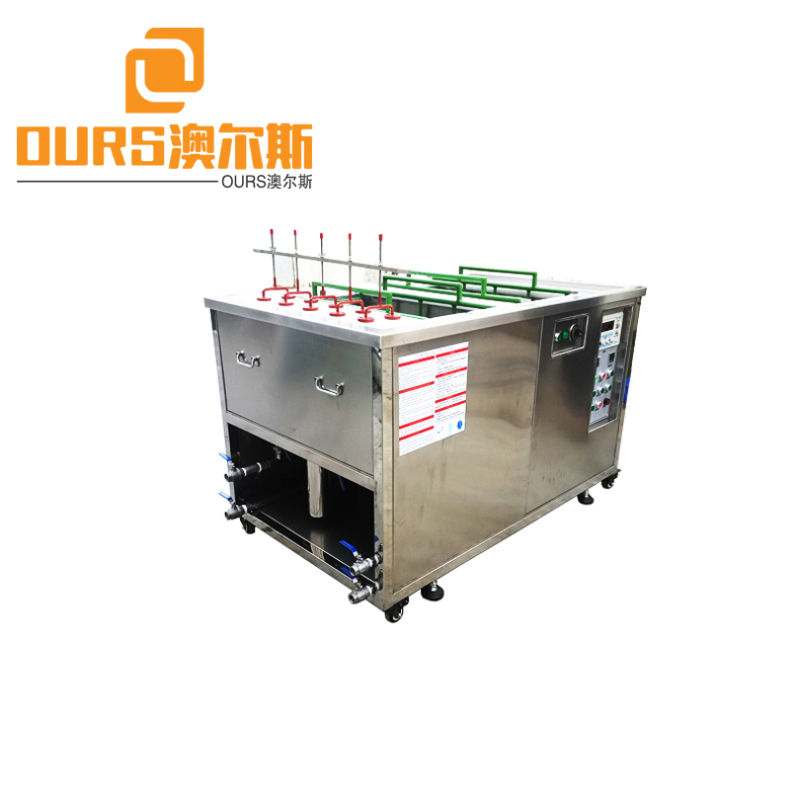

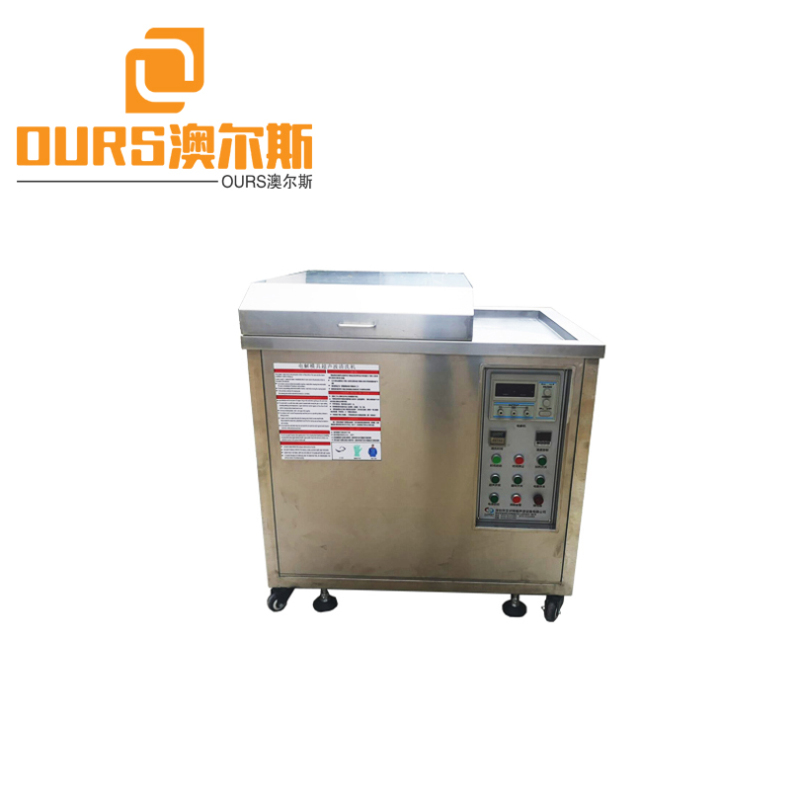

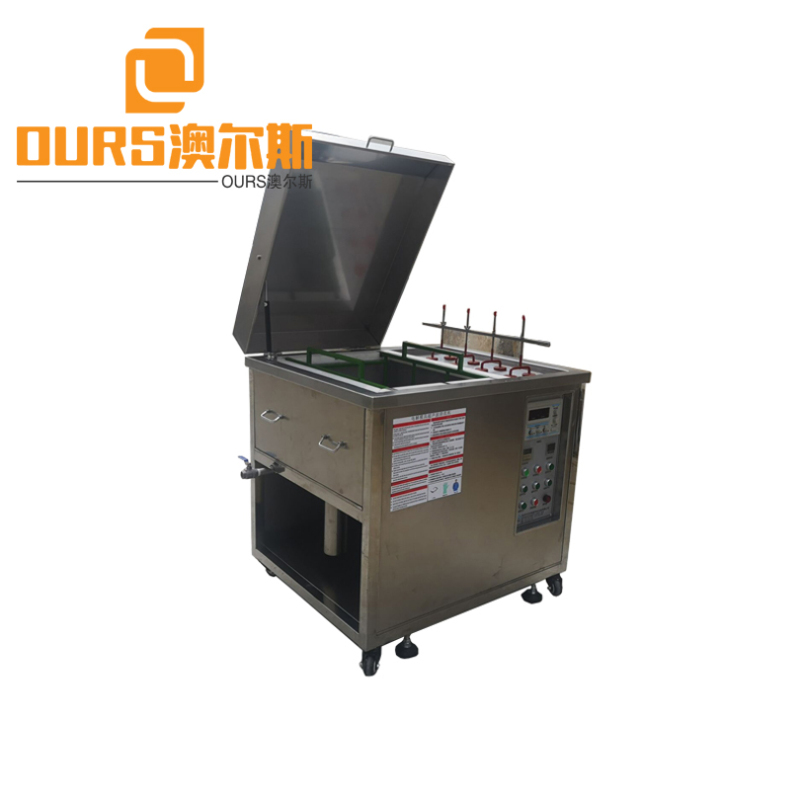

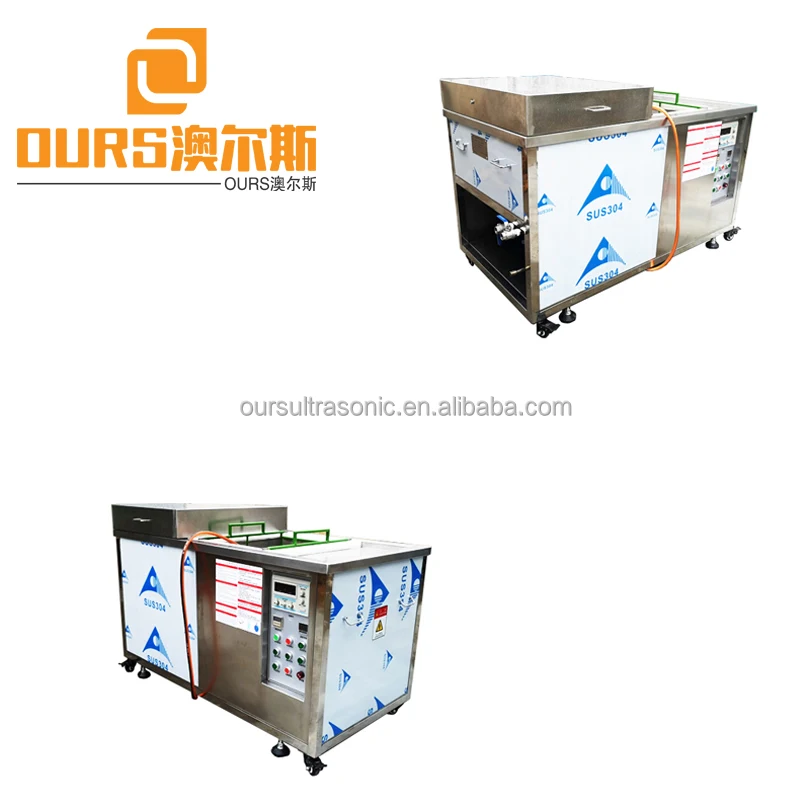

Ours Product 2000W 40khz Cosmetic Mould Electrolytic Ultrasonic Cleaning Machine

Principle of electrolytic mold cleaning machine: electrolysis is the process of chemical decomposition of substances under the action of electric current. During the electrolysis process, the dirt on the metal surface begins to fall off, and the peeling is accelerated under the impact of ultrasonic waves. The metal surface is stained with animal and vegetable oils, minerals Oil, paraffin, carbon deposit, oxide layer. Use electrolysis to remove these dirt. When the current passes through the mold electrolytic cleaning agent containing a special formula, oxygen is generated near the positive electrode of the electrolytic cell, and hydrogen is generated near the negative electrode. Put the metal parts to be cleaned into the positive electrode of the electrolytic cell, and there will be small particles on the metal surface during the electrolysis These small bubbles cause the dirt to peel off the metal surface. Ultrasonic cleaning is a process in which a 40KHZ high-frequency power supply is used to convert the transducer to mechanical energy from electrical energy. During this process, the transducer transfers huge energy to the cleaning tank solution. , Generate positive and negative pressure zones in the liquid, forming tens of thousands of cavitation bubbles, which continuously form explosions, impact the surface of the cleaned metal object, and quickly remove the dirt on the metal surface. To achieve the cleaning of the mold and restore the mold True color

Working principle: Use the mold or the workpiece to be cleaned as the cathode (just put in the cleaning frame), and use the standard electrode as the anode. The use of electrolyzed water produces oxygen at the anode and hydrogen at the cathode. During the operation, a large amount of hydrogen is generated on the surface of the workpiece, which causes the dirt to be quickly decomposed and peeled off from the surface of the workpiece; at the same time, the cavitation effect of ultrasonic waves is used to cause countless small bubbles to collide with the object. Impact blasting the dirt on the workpiece to automatically peel off the dirt.
At the same time, the special washing liquid 102C is used to decompose the dirt rapidly through a sufficient chemical reaction. In this way, even the difficult-to-clean parts, such as the grooves, grooves, corners, holes, holes, bites and other complex parts inside the mold, will be cleaned, and the mold will show a brilliant metallic luster from the inside to the outside.
After cleaning the molds, rinse them with water, and then soak them with special water-based rust inhibitor for steel. This anti-rust agent can quickly remove moisture from the mold surface and form protection on the mold surface. It can be stored or reprocessed after air drying. Re-production will not produce carbides attached to the mold.
Scope of application: plastic molds, hardware molds, optical mirror molds, rubber molds, medical equipment, auto parts molds, etc.
Note: Various non-standard model sizes can be customized according to customer requirements
