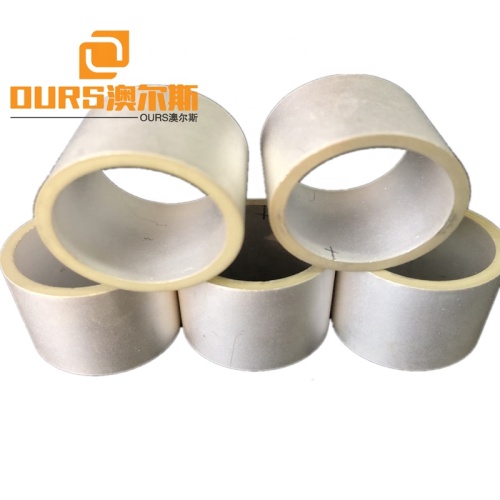

Round Tube Type PZT4/PZT8 Piezo Material 66-75KHZ Piezoelectric Transducer Ceramic Price
50-499 Piece
$14.00
≥ 500 Piece
$11.00
- Item No.ARS-YGJP-P5-GMOQ50 Piece
Choice
Quantity:
If you have your own design, please contact us, there will have a professional customer service to communicate with you.
Don't have your files right now?No worries, Check out our art tips for more information.
If over 500pcs, mass production will start until pre-production sample has been approved.
Est. 7 days production
Round Tube Type PZT4/PZT8 Piezo Material 66-75KHZ Piezoelectric Transducer Ceramic Price
Piezoelectric Ceramic Materials are categorized as functional ceramics. In sensors they make it possible toconvert forces, pressures and accelerations into electrical signals, and in sonic and ultrasonic transducers and actuators they convert electric voltages into vibrations or deformations.PiezoelectricCeramics materials are classified according to their chemical composition on the one hand, and by the specific application conditions on the other.
Piezoelectric transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube. The piezoelectric transducer is widely used in ultrasonic cleaning machine and high-power industry welding and drillingdevices.
◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.
◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.
◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.
◊ Good construction: fastened by bolt, easy for assembling, high reliability.
Application
1. ultrasonic cleaning trasnducer
2. ultrasonic welding tansducer
3. ultrasonic beauty transducer
4. ultrasonic underwater transducer
5. ultrasonic immersible transucer
6. ultrasonic screening transducer
7. ultrasonic cutting transducer
8. ultrasonic atomization transducer
9. ultrasonic emulsifier
| Type | Frequency (KHz) | Co(pF) | Electromechanical coupling | Working temperature℃ | Dimensions: outside diameter* Inside diameter * height (mm) |
| ARS-YGJP-P5-1 | 36-45 | 12000±20% | Keff >0.37 | -240 | φ24×φ22×12.5 |
| ARS-YGJP-P5-1 | 45-50 | 9000±20% | Keff >0.22 | -240 | φ21×φ17×20 |
| ARS-YGJP-P5-1 | 45-50 | 9000±20% | Keff >0.22 | -240 | φ21.5×φ18×20 |
| ARS-YGJP-P5-1 | 76-86 | 1400±20% | Keff >0.36 | -240 | φ13×φ11×3 |
| ARS-YGJP-P5-G | 72-81 | 1800±20% | Keff >0.35 | -240 | φ13×φ11×3 |
| ARS-YGJP-P5-5 | 44-48 | 10000±20% | Keff>0.27 | -240 | φ21.5×φ18.5×15.5 |
| ARS-YGJP-P5-G | 17-21 | 8500±20% | Keff >0.28 | -240 | φ51×φ45×10 |
| ARS-YGJP-P5-G | 66-75 | 5500±20% | Keff >0.28 | -240 | φ14×φ12×8 |
| ARS-YGJP-P5-1 | 12-48 | 11000±20% | Keff >0.29 | -240 | φ21.5×φ18.5×16 |
| ARS-YGJP-P5-1 | 62-80 | 13000±20% | Keff >0.49 | -240 | φ21.5×φ18×25 |
| ARS-YGJP-P5-1 | 55-74 | 13000±20% | Keff >0.58 | -240 | φ21.5×φ18×30 |
| ARS-YGJP-P5-1 | 55-72 | 16000±20% | Keff >0.49 | -240 | φ21.5×φ18.5×30 |
| ARS-YGJP-P5-1 | 55-72 | 16000±20% | Keff >0.62 | -240 | φ21.5×φ18×30 |
| ARS-YGJP-P5 | 33-38 | 18000±20% | Keff >0.22 | -240 | φ26×φ22×25 |
| ARS-YGJP-P5 | 58-77 | 18000±20% | Keff >0.58 | -240 | φ26×φ22×25 |
| ARS-YGJP-P5 | 60-75 | 15000±20% | Keff >0.64 | -240 | φ26×φ22.5×25 |
| ARS-YGJP-P5 | 49-66 | 20000±20% | Keff >0.59 | -240 | φ26×φ22×30 |
| ARS-YGJP-P5 | 51-65 | 19000±20% | Keff >0.51 | -240 | φ26×φ22.5×30 |
| ARS-YGJP-P5 | 52-65 | 7000±20% | Keff >0.54 | -240 | φ32×φ22×30 |
| ARS-YGJP-P8 | 18-22 | 9000±20% | Keff >0.21 | -240 | φ60×φ48×40 |
| ARS-YGJP-P5-H | 27-37 | ±20% | Keff >0.54 | -240 | φ40×φ36×60 |
| ARS-YGJP-P8 | 17-21 | 12000±20% | Keff >0.18 | -240 | φ63×φ52×40 |
| ARS-YGJP-P8-1 | 18-20 | 14000±20% | Keff >0.20 | -240 | φ61.5×47.5×40 |
| FOR MORE OEM SIZE WELCOME TO ENQUIRE SALERS | |||||
