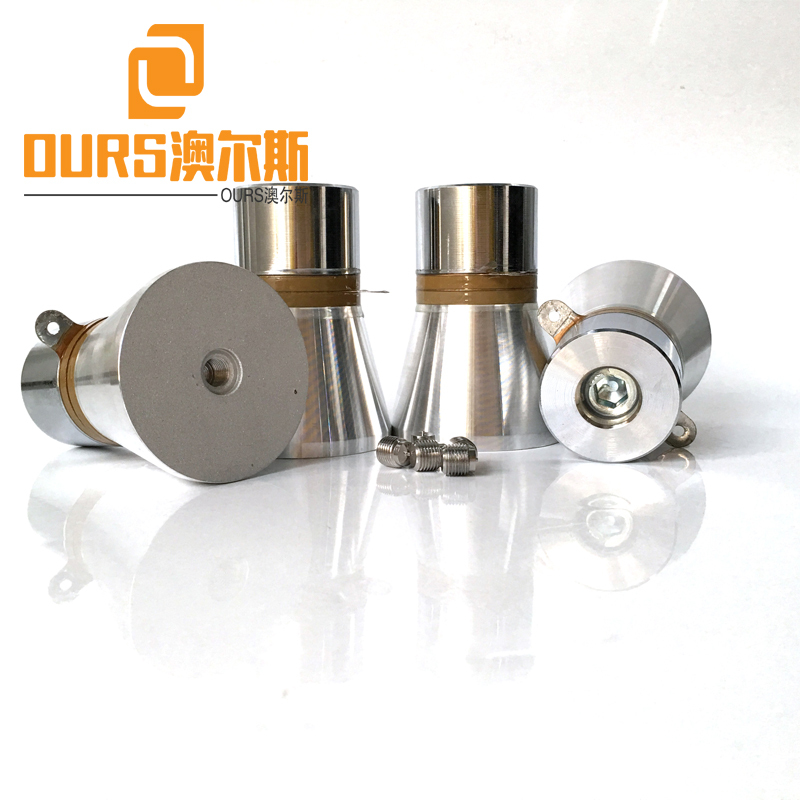

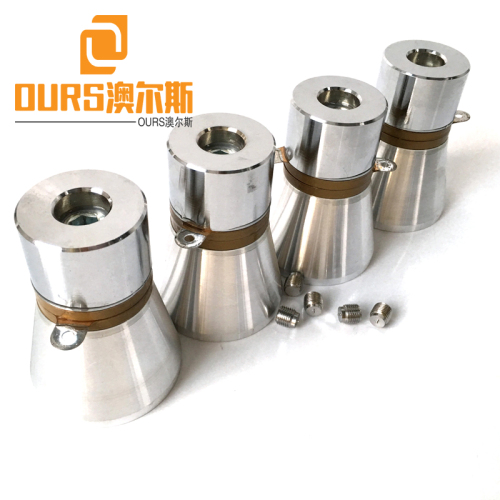

Hot Sales 20KHz Ultrasonic cleaning vibrator transducer For Industrial Cleaning
1-9999 Piece
$11.00
≥ 10000 Piece
$9.50
- Item No.20201104dc528MOQ1 Piece
- Product size20 x 15 x 15 mProduct weight2 kg
Choice
Quantity:
If you have your own design, please contact us, there will have a professional customer service to communicate with you.
Don't have your files right now?No worries, Check out our art tips for more information.
If over 500pcs, mass production will start until pre-production sample has been approved.
Est. 7 days production
Hot Sales 20KHz Ultrasonic cleaning vibrator transducer For Industrial Cleaning
The ultrasonic vibrator is a device that realizes the mutual conversion of electrical energy and mechanical energy (acoustic vibration) by the piezoelectric effect of piezoelectric ceramics, and amplifies the acoustic impedance matching front and rear radiation cover blocks. The ultrasonic vibrator is composed of an ultrasonic transducer and an ultrasonic horn. The ultrasonic transducer is a device that can convert high-frequency electrical energy into mechanical energy. The ultrasonic horn is a passive device that does not generate vibration itself. It only transmits the amplitude of the vibration input by the ultrasonic transducer before changing it. Impedance transformation.
Installation steps and preparation tools:
1. Preparation tools: argon arc welding, No. 10 hexagon socket wrench, chrome iron tin wire, 2.5 square high temperature wire, 2 * 2.5 cable wire amount, vibrator glue, (wire stripper, casing, cable tie, sand blasting machine, Fittings, etc.).
2. Welding screws: Calculate the arrangement position of the vibrators, weld the screws in the cleaned position, and then clean the surroundings of the screws. Be sure to make them flat to avoid affecting the installation of the vibrators.
3. Glue configuration: Stir the glue evenly according to the specified ratio. (Mirray, Ailuda, 4030 glue is mixed before bonding, KMD398 glue is mixed during the bonding process).
4. Install the vibrating head: apply the glue evenly to the bottom of the ultrasonic vibrator, and twist it gently to squeeze out the air and excess glue between the bottom of the transducer and the contact surface of the cylinder bottom, so that the vibrator is tightly combined with stainless steel as a whole .
5. Curing and solidification: It can be cured by being placed in a place with relatively high room temperature. It can be connected in 4-8 hours. After 24 hours, the test machine can be powered on. The test machine must not be allowed to vibrate.
Notes: 1. Metal-type nail machines can also replace TIG welding. 2. The welding screws must be fully welded, otherwise they will fall off easily. 3. Regarding curing, the temperature should be considered for the length of time, the temperature is low for a long time, the temperature is high, it is faster, it is recommended to operate at room temperature, even if heating, do not overheat, the best is appropriate.
Ultrasonic vibrator features:
1. High performance: high mechanical Q value, high conversion efficiency and excellent quality;
2. The ultrasonic vibrator transducer has large amplitude and superior performance;
3. Ultrasonic vibrator transducer heat resistance: Piezoelectric ceramic material has good heat resistance, can expand the operating temperature range, and has high Q value, small resonance impedance and small heat generation;
4. The ultrasonic vibrator transducer has a neat appearance, no rust, no obvious depressions and scratches.
